Ships from: China
8pc TSOP48/40/32/SOP44/SOP56 ZIF to DIP Adapters for T56, TL866II Plus Minipro USB Programmer
from £7.95

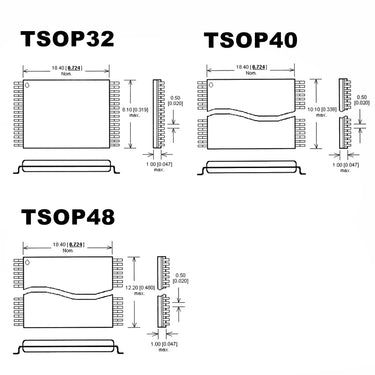

If you have a T56 or TL866 series programmer and are lacking in adapters to fit more exotic chips, this kit is just the thing for you. The kit contains various TSOP (Thin small outline package), SOP and PSOP adapters.
If your programmer supports the chips you need to deal with, these adapters will get the job done.
Great for allowing you to read and write various flash types for BIOS, TV's, Games Consoles, Laptops, White Goods, Home Audio Video equipment and much more.
Please note: XGECU removed support for the SN001 series boards from T48 programmers, do not purchase these for use on the T48. Please search our T48 collection for a suitable adapter, or get in touch and we'll be happy to help find a suitable solution.
Full 8 Piece Kit Includes:
TSOP32 base board (SN001-4)
SOP56 base board
TSOP48/SOP44 2-in-1 NOR base board (SN001-1)
TSOP40A base board (1.27mm) 16mm (SN001-2)
TSOP40B base board (SN001-3)
SN005: TSOP32/40/48 soldering top for AM29BL802/162
SN003: TSOP32/40/48 20mm ZIF socket top board
SN004: SOP44 16mm ZIF socket top board (1.27mm)
Ships from: China
QFN8/WSON8/MLF8/MLP8/DFN8 To DIP8: Adapter for 6*5mm OR 8*6mm chips for T48 TL866II T56
from £6.95
Enhance your IC programmers with these handy QFN8 ZIF Adapters. Suitable for both 6*5mm and 8*6mm packages, simply pop the chip in the adapter, insert into your T48, TL866II, T56 or similar programmer just like a regular DIP8 package. Save time and effort by not having to solder/desolder to a pad board. These are suitable for use with many programmers, if your programmer supports the chip you wish to program this adapter will allow you to work with it.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Specifications:
Style: Adapter
Model: QFN8 to DIP8
Applicable IC Packages: QFN8, WSON8, MLF8, MLP8, DFN8
Package size: 6*5mm and 8*6mm
Package Pitch: 1.27mm
Programmer connector: DIP8
Suitable Programmers:
XGecu T48, TL866II and T56 series
RT809F
EZP2019+
Also suitable for Superpro, TNM, TOP, GQ-4X, Stager, SOFI and more.
Package Includes: 1x QFN8 TO DIP8 at 6*5mm or 8*6mm OR 1x 6*5 and 1x 8*6 Twin Pack
Ships from: China
TL866II SPI Driver ICSP Module: Flash In Circuit Programming Adapter Minipro TL866II TL866A Series USB Programmer
£5.95
£6.95
This handy TL866II series SPI Driver adapter can be used to program a SPI Flash chip in circuit. This can make light work of diagnosis and repair work on a variety of products and devices. For example, you could upgrade/reflash the BIOS of computer motherboard without removing the chip from motherboard. Diagnose a washing machine, Tv or In Car Entertainment system if the chip is supported, all without having to desolder the package and risk damaging it or the PCB.
Ideal for use with all of out TL866II series programmers. The TL866II software include handy wiring diagrams for most applications.
This adapter features a high quality driver chip that enhances to read/write signals to ensure minimal issues when access an in circuit IC. There are many factors that can affect ISP in-circuit programming arising from, poor PCB design, poor PCB quality, the IC could be faulty (or a low quality clone), or interference from other component on the PCB.
The little details:
Model: SPI Driver for TL866II Series
Ports: 1x 6 pin Female Host, 1x 6 pin Male Source
Material: Plastic
Suitable Programmers: Minipro TL866CS, TL866A, TL866II PLUS
Ships from: China
DIP8 To SOP8 8Pin Adapter Converter Board For Chip Shortage, Prototyping, Repairs, DIY Electronics
£4.95
These handy DIP8 to SOP8 adapter boards let you convert and regular DIP8 package to work on a SOP8 board. Ideal for dealing with supply issues from chip shortages, or replacing an obsolete part with a modern equivalent. It is alos ideal for Prototyping work as you can use a DIP8 while testing the use a SOP8 for the final production runs.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Features and Specification:
100% Brand New and High quality
Height: 15mm
Suitable for design and prototyping work
Convenient for replacing SMD OP AMP with DIP OP AMP, Suitable for power amplifier or sound card chip upgrade.
Pack includes: 1x DIP8 to SOP8 converter
Ships from: China
QFN8/WSON8 To DIP8 Programmer Adapter Board for T48 TL866II T56 EZP2019 RT809F and more.
£2.95
Enhance your TL866II or T56 programmer with this handy QFN8/WSON8 to DIP8 Adapter. Suitable for both 6*5mm and 8*6mm packages, simply solder the chip in the adapter, then insert into the T56 or TL866II like a regular DIP8 package. These are suitable for use with many programmers, if your programmer supports the chip you wish to program this adapter will allow you to program it.
If you are working with a bulk of QFN8 or WSON8 chips, our ZIF socket versions of this adapter saves soldering each chip, use the link below to find them in our DIP8 adapter range.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Specifications:
Style: Adapter
Model: QFN8/WSON8 to DIP8
Dimensions: 2.5*1.3cm / 0.98*0.51" (approx.)
Applicable IC Packages: QFN8, WSON8
Package size: 6*5mm and 8*6mm
Package Pitch: 1.27mm
Programmer connector: DIP8
Suitable Programmers: XGecu TL866II, T48 and T56 series, also suitable for Superpro, TNM, TOP, GQ-4X, Stager, SOFI and more.
Package Includes: 1x QFN8 TO DIP8 adapter
