T56 Programmer and Adapters

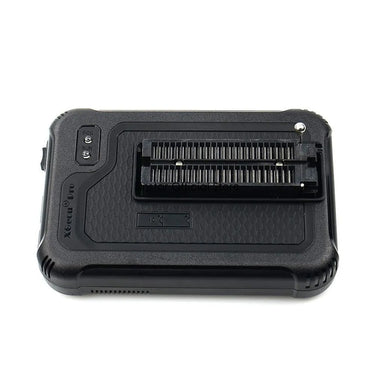

The XGecu T56 builds upon the successful TL866 series offering a host of upgrades. Now supporting longer chips up to 56 pins, with faster programming and read speeds, thanks to its updated PIC32MZ 32-bit MCU 200MHZ and Xilinx SP6 FPGA. With a far greater range of supported chip types it really is a powerhouse of a programmer. These are a great investment as new chip types are added through updates to the software package the supported chip types are always expanding, 21000+ types and growing. The 5, 17 and 22 Adapter kit contents are listed below. Please visit our T56 Downloads Page for the latest software, manuals and chip support list. Need additional adapters? Browse our T56 range to find suitable adapters. After purchase we will send links to download the software and manuals. Need additional adapters? Browse our T56 range to find suitable adapters. Please get in touch if you need a chip support list. Features: Program, Read, Write, Test and more. Supports over 21000+ types of ROM, EPROM, EEPROM, NAND, NOR, GAL, SRAM, EMMC, AVR, MCU, not sure if your chip is supported? Please get in touch Kits contain different adapters to cover a wide range of chip styles. See the images for which adapters are included with each kit version. Chip support: TSOP48 / TSOP56 / BGA48 / BGA63 / BGA64 / BGA100 / BGA153 / BGA162 / BGA169 / BGA221 Supports WINXP WIN2003 WIN2008 VISTA WIN7 WIN8 WIN10 32-bit or 64-bit operating systems. Carefully built low-cost professional programmer, high-density chip production process, a unified user interface, easy to use, functional integrity, application software, reliable operation, code small, faster execution. The programming speed is greatly improved. It is suitable for small batch production and supports 4 programmers for one computer. Wide range of chip support, currently supports around 21000+ types. Supports a variety of 24 25 26 27 28 29 37 39 49 50 series of serial and parallel memory chips, microcontroller 51 series, ATMEL AVR ATMEGA AT90 series, MICROCHIP PIC10 PIC12 PIC16 PIC18 series microcontroller , GAL programmable logic device programming, SRAM test, 54/74 and CMOS4000 integrated circuit integrated functional test. Support NAND Flash chip, the function is complete and comprehensive, the capacity supports to 8Gbits. 25 series NOR Flash capacity support to 512Mbits. NAND EMMC supports a maximum capacity of up to 256G or more Support VGA and HDMI online programming Support digital logic integrated circuit testing, identification, customization Pin contact check function, pinpoint corroded or faulty pins on your chip. Ultra-low power consumption: the entire programmer uses ultra-low-power chips, no external PSU required. Portable performance super: the world's smallest volume, size 10CM * 6CM * 2.5CM, only the size of the driver's license. Programmable VCC from 1.8V to 6.5V, VPP from 1.8V to 18V. Programmer built a variety of commonly used automatic numbering function. And can use a custom algorithm to achieve any sequence number through DLL dynamic library. This feature allows you to produce a unique identification information for each chip in mass production. The logo can also be encrypted with a custom algorithm to more effectively protect your product's rights. Specifications: Powered by PIC32MZ 32-bit MCU 200MHZ + Xilinx SP6 FPGA structure. Universal serial programming interface ICSP (to support both high-voltage parallel programming and low-volt age serial programming). Note: ICSP now supports 24-Series 25 Series 93 Series Serial Integrated Circuits, ATMEL89S51,52, AVR ATMEGAxxx Full Series, and MICROCHIP PIC10Fxxx 12Fxxx 16Fxxx 18Fxxx Full Series, and the new series of SYNCMOS SM59Dxx SM59Rxx fu ll range chips for in-circuit serial programming. Powerful 54 / 74F / LS / HC CMOS4000 Series Integrated Functionality Tests: The First Development Programmer to Test Common Logic ICs True, Test Errors Locating Logic Gate Circuits, Test Arbitrary Possible input combinations. Variety of 26 27 28 29 37 39 49 50 series of parallel ROM, EPROM, EEPROM Fast, full support. Support TSOP32 TSOP40 TSOP48 chips to 64MBits, will join the TSOP56 pin support. (TL866II programming voltage VPP only supports up to 18V, for early 27C series ROM, the chip with 21V 25V VPP voltage no longer supports writing, but can be read. If it is used, the VPP with the same type of programming voltage can be used as 13V or 12V chip replacement, for example: 27C32 21V or 13V Vpp chip,Pay attention to the VPP voltage) 24 25 35 45 85 93 95 Series Serial EEPROM Serial Series Chip Support Full, Supports Chip Capacity 25 Series 8 or 16PIN to 512MBits (64M Bytes) NAND FLASH chip supports up to 8Gbits MCU series, hundreds of models of 51 series of microcomputer AVR microcontroller package scratch ATMEGA series ATtiny series AT90XXX series of microcontrollers, all AVR ATMEGAxxx chip also supports the ICSP interface for SPI serial download programming. Support AVR one-to-one soft-key with RC correction byte. MICROCHIP PIC10 PIC12 PIC16 PIC18 Series Microcontroller: PIC series of more than 300 models, more than 900 package chip support, currently supports one of the most complete PIC chip integrated programmer. For various types of PIC monolithic, in strict accordance with the manufacturer's manual requirements, the optimal programming, programming speed is excellent. The vast majority of chips support both ISCP online programming and programming through programming sockets. GAL programmable logic device programming. SRAM test: Support for common 24 61 62 DS12 series SRAM test, respectively, to data line testing, address line testing, memory unit incremental testing and unit testing. Super performance 54 / 74F / LS / HC CMOS 4000 series integrated circuit. Function test: The first development-type programmer to really test common logic ICs to test for errors that can be located to logic gates, and to test any possible combinations of inputs in an integrated circuit when testing. Chip support: TSOP48 / TSOP56 / BGA48 / BGA63 / BGA64 / BGA100 / BGA153 / BGA162 / BGA169 / BGA221 Adapter kit contents 22 Adapter Kit: 1x 8pin 200-209mil SOP8 Adapter 1x 8pin 150mil SOP8 Adapter 1x 16pin 150mil SOP8 Adapter 1x 20pin 127mil SOP20/SO20/SOIC20 Adapter 1x 28pin 127mil SOP28/SO28/SOIC28 Adapter 1x PLCC28 to DIP28 Adapter 1x PLCC32 to DIP32 Adapter 1x PLCC44 to DIP40 Adapter 1x SOP16/8 to DIP8 Solder board with pin header & Clip Lead 1x SOP16/8 to DIP8 Solder board without pin header 1x SOP16/8 and MSOP8/SSOP8 Solder board 1x SOP8 to DIP8 Solder board 1x 16pin 1.8v Adapter 1x BGA63 Adapter 1x TSOP56 Adapter 1x BGA48 Adapter 1x SOP56 Solder board 1x EMMC153/160 1x SOP28 127mil Solder board 1x TSSOP28 Adapter Cables, EMMC Frames, Pin Headers as shown 17 Adapter Kit: 1x 8pin 200-209mil SOP8 Adapter 1x 8pin 150mil SOP8 Adapter 1x 16pin 150mil SOP8 Adapter 1x 20pin 127mil SOP20/SO20/SOIC20 Adapter 1x 28pin 127mil SOP28/SO28/SOIC28 Adapter 1x PLCC28 to DIP28 Adapter 1x PLCC32 to DIP32 Adapter 1x PLCC44 to DIP40 Adapter 1x SOP16/8 to DIP8 Solder board with pin header & Clip Lead 1x SOP16/8 to DIP8 Solder board without pin header 1x SOP16/8 and MSOP8/SSOP8 Solder board 1x SOP8 to DIP8 Solder board 1x 16pin 1.8v Adapter 1x SOP28 127mil Solder board 1x TSSOP28 Adapter Cables, Pin Headers as shown 5 Adapter Kit: 1x BGA63 Adapter 1x TSOP56 Adapter 1x BGA48 Adapter 1x SOP56 Solder board 1x EMMC153/160 Cables, EMMC Frames as shown

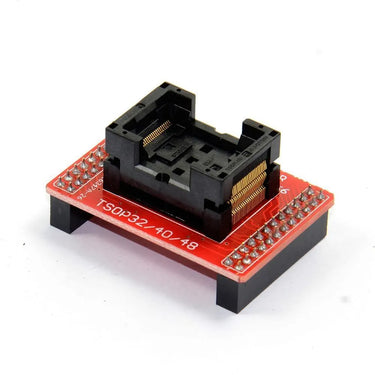

These handy adapters allow you to easily program 8mm*14mm 32-pin TSOP chips with your T48, T56 or TL866 programmer. The durable ZIF socket ensures a secure connection to the pins. If your programmer supports your desired chip, or the DIP32 equivalent, this adapter will work. Please Note: check the Pin orientation on your particular programmer, as show in the example XGECU images the adapter sits off center in the DIP socket. Features and Specifications: Easy to use: Simply plug the adapter into your programmer and then insert the TSOP chip Secure connection: The ZIF socket ensures a secure connection to the pins Support 12.4mm 0.5mm pitch 8mm*14mm 32-pin TSOP IC's Supports SST39SF020A, SST39SF040, SST39LF512, SST39LF010, SST39LF020, SST39LF040,SST39VF512, SST39VF010, SST39VF020, SST39VF040 and more Ideal for XGECU T48, T56, TL866 series programmers Will work with most other DIP32+ programmers such as GQ-4X, TOP853/TOP2004/TOP2005/TOP2048, G540/G840/VS4800, TNM2000/TNM5000, EasyPro, SuperPRO Pin count: 32 (Socket) 32 (Base) DIP Connector: Pitch 100mil (2.54mm) / Width 600mil (1.52cm) Package type: TSOP Socket type: ZIF Item includes: 1 x 648A0322211-A01 TSOP32-DIP32 Programmer Adapter

This adapter enables simple programming of 8mm*14mm 32-pin TSOP chips using a T48, T56 or TL866 programmer. The secure ZIF socket ensures proper electrical connection to the pins. Users can use this adapter for any chip compatible with their programmer, or with its DIP32 equivalent.  Please Note: check the Pin orientation on your particular programmer, some programmers may need the adapter placed a certain way. Features and Specifications: Easy to use: Simply plug the adapter into your programmer and then insert the TSOP chip Quick and Secure: The durable ZIF socket allows for quick and easy programming Support 12.4mm 0.5mm pitch 8mm*14mm 32-pin TSOP IC's Supports SST39SF020A, SST39SF040, SST39LF512, SST39LF010, SST39LF020, SST39LF040,SST39VF512, SST39VF010, SST39VF020, SST39VF040 and more Ideal for XGECU T48, T56, TL866 series programmers Compatible with common DIP32+ programmers, such as GQ-4X, TOP853/TOP2004/TOP2005/TOP2048, G540/G840/VS4800, TNM2000/TNM5000, EasyPro, and SuperPRO. Pin count: 32 (Socket) 32 (Base) Package type: TSOP DIP Connector: Pitch 100mil (2.54mm) / Width 600mil (1.52cm) Item includes: 1 x CNV-TSOP-EP1M32 TSOP32-DIP32 Programmer Adapter

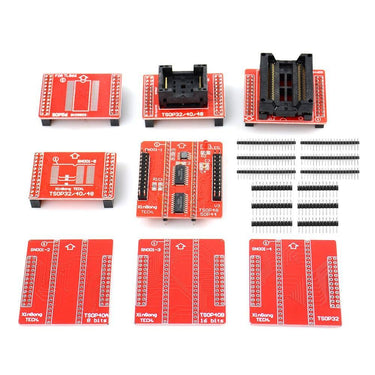

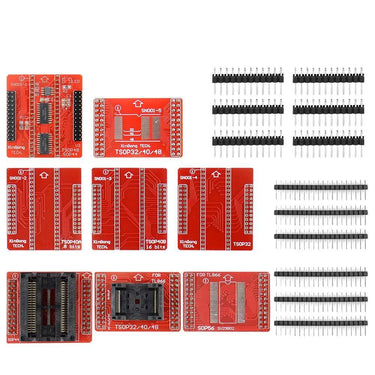

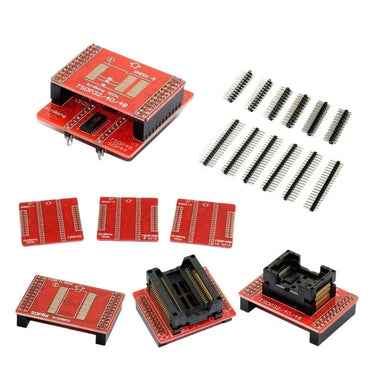

If you have a T56 or TL866 series programmer and are lacking adapters to fit more exotic chips, this kit is just the thing for you. The kit contains various TSOP (Thin Small Outline Package) and two SOP (Small Outline Package) adapters. This kit is great for allowing you to read and write various flash types for BIOS, TV's, Games Consoles, Laptops, White Goods, Home Audio Video equipment and much more. If your programmer supports the chips you need to deal with, these adapters will get the job done. Please note: XGECU removed support for the SN001 series boards from T48 programmers, do not purchase these for use on the T48. Please search our T48 collection for a suitable adapter, or get in touch and we'll be happy to help find a suitable solution. Kit Includes: TSOP32/TSOP40/TSOP48 Solder Board (SN001-5) TSOP32/TSOP40/TSOP48 ZIF (SN003) TSOP40A (SN001-2) TSOP48/SOP44 2-in-1 NOR base board (SN001-1) TSOP32 (SN001-4) TSOP40B (SN001-3) SOP44 ZIF SOP56

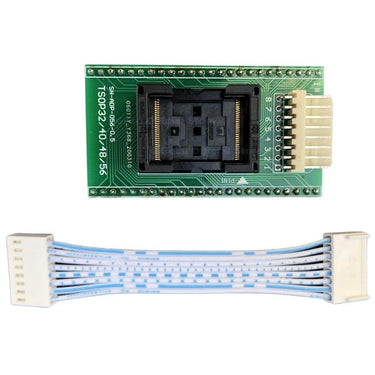

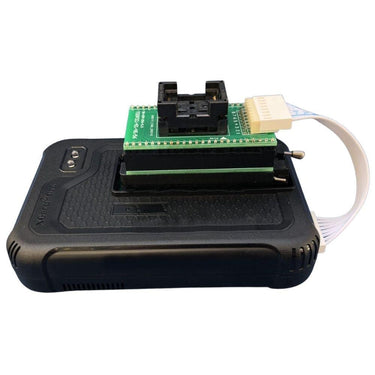

Save time and effort with this handy adapter for the XGECU T56 range of programmers. Pop your TSOP32, TSOP40, TSOP48 or TSOP56 into the ZIF holder, plug the adapter board harness into the board and expansion connector on the T56. Then insert like a regular DIP chip on your T56. Easily Read, Write,Program, Test and Verify your chips without needing to solder them to a board first. Looking for more T56 accessories and adapters? Browse our T56 range. Looking for more T56 accessories and adapters? Browse our T56 range. Features and Usage Notes: For the XGECU T56 ONLY these will not work with other programmers SN-ADP-056-0.5 TSOP32/40/48/56 All In One ZIF to DIP Adapter, no soldering required Supports most TSOP32, TSOP40, TSOP48 or TSOP56 IC's Check the T56 Chip Support List to ensure your required IC is supported.

These handy in-circuit probes for various ICs make for quick and easy work by saving time, effort, and potential PCB damage by allowing you to read and program them in place. Ideal for use in in-system programming (ISP), in-circuit serial programming (ICSP), and testing duties. Simply insert the dummy header into your IC programmer and the pop the probe on to the chip you need to deal with and you're up and running. The enhanced versions provide additional clearance to get round high components, along with redesigned pins for more secure connections. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: Test and program with your IC in place, no need to unsolder. Options for SOP8, VSOP8, WSON6x5, WSON8x6, DIP8, SOT23-5 and SOT23-6. Support 24 25 93 EEPROM 25 Flash BIOS Chip and more Enhanced version has longer legs to clear taller components. Works with most popular programmers including the CH341A, RT809F, RT809H, EZP2019, TL866II, T48 and T56 series Sprung 4 Claw Probes for stable contact.

These updated BGA24 to DIP8 Zif Adapters save you buying multiple adapters to handle your various IC's, providing a convenient way to enhance your IC Programmer. Compatible with 6x8mm packages using 4x6mm or 5x5mm arrays, the adapter enables users to quickly insert the chip and then use a as regular DIP8 package with the programmer, eliminating the need to solder the chip to a pad board. They are suitable for use with many programmers, such as EZP2023, T48, RT809F, TL866II, T56 and more. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Specifications: Style: Adapter Model: BGA24 to DIP8 Multi Adapter Applicable IC Dimensions: 6x8mm (with either 6x4mm or 5x5mm layouts) Applicable IC Package: BGA24 Supports BGA24 SPI FLASH: W25Q16 W25Q32 W25Q64 W25Q128 W25Q256 and more Programmer connector: DIP8 with 1.0mm pitch Important: Do not clean the BGA24 Adapter with halogenated solvents (methylene chloride, trichloroethylene, perchloroethylene, trichlorotrifluoroethane, and 1,1,1-trichloroethane), these will melt the socket Suitable Programmers: XGecu T48, TL866II and T56 series RT809F EZP2019+, EXP2023 Also suitable for Superpro, TNM, TOP, GQ-4X, Stager, SOFI and more. Package Includes: 1x BGA24 to DIP8 Multi Adapter

These handy adapters allow you to easily program 32-pin Quad Flat Pack (QFP32) chips with your T48, T56 or TL866 programmer. The durable clamshell ZIF socket ensures a secure connection to the pins. If your programmer supports your desired chip, or the DIP32 equivalent, this adapter will work. These are also ideal for programming ATMEGA48V ICs. Features and Specifications: Easy to use: Simply plug the adapter into your programmer and then insert the QFP32 chip Secure connection: The clamshell ZIF socket ensures a secure connection to the pins Support QFP32 IC's with 0.8mm pitch Supports ATMEGA48V, EFM8LB12F64E-C-QFP32, EFM8UB20F32G-A-QFP32 and similar Ideal for XGECU T48, T56, TL866 series programmers Will work with most other DIP32+ programmers Dimensions: 3.6*4.4cm or 1.42*1.73inches (approx) Pin count: 32 Package type: QFP32 Socket type: ZIF Item includes: 1 x 32-Pin QFP Programmer Adapter

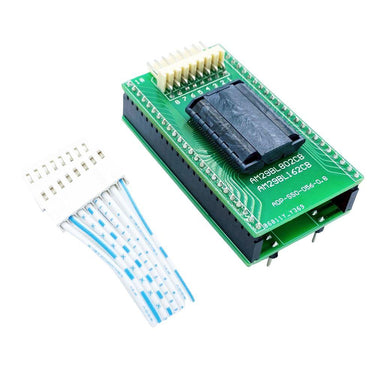

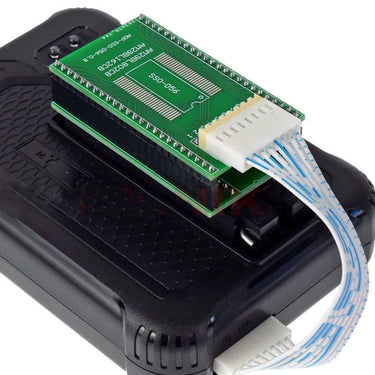

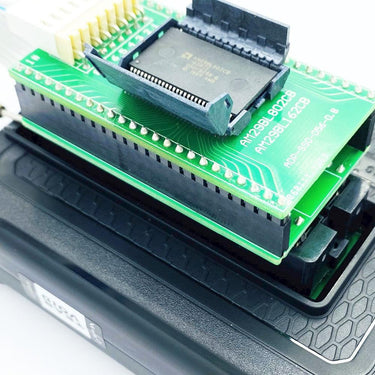

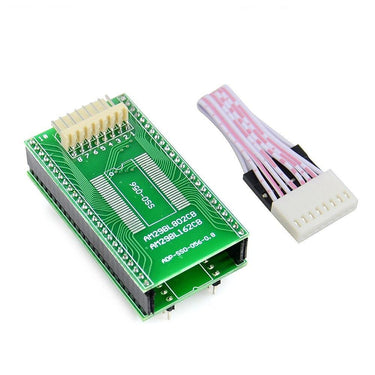

This handy adapter for the XGECU T56 range of programmers let you handle SOP56 IC's such as the AM29BL802CB or AM29BL162CB (or similar), the adapter board connects to your T56 programmer through the socket and cable harness expansion connector on the T56. Read, Write,Program, Test and Verify your chips SOP56 IC's through XGECU's extensive chip support. We also carry a ZIF Socket version of this adapter, ideal for when your handling SOP56 IC's in batches, use our links below to find this model. Looking for more T56 accessories and adapters? Browse our T56 range. Looking for more T56 accessories and adapters? Browse our T56 range. Features and Usage Notes: For the XGECU T56 ONLY these will not work with other programmers ADP-SSO-056-0.8 ZIF SOP56 to DIP adapter Supports SOP56 AM29BL802CB or AM29BL162CB, check the T56 chip support list to ensure your IC is supported.

Enhance your T48, TL866II or T56 programmer with this handy QFN8 Zif Adapter. Suitable for both 6*5mm and 8*6mm packages, simply pop the chip in the adapter, then insert into your programmer like a regular DIP8 package. Save time and effort by not having to solder to a regular pad board. These are suitable for use with many programmers, if your programmer supports the chip you wish to program this adapter should work. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Specifications: Brand Name: XGECU Style: Adapter Model: QFN8 two-in-one Applicable IC Packages: QFN8, WSON8, MLF8, MLP8, DFN8 Package size: 6*5mm and 8*6mm Package Pitch: 1.27mm Programmer connector: DIP8 Suitable Programmers: XGecu T48, TL866II and T56 series RT809F EZP2019+ Also suitable for Superpro, TNM, TOP, GQ-4X, Stager, SOFI and more. Package Includes: 1x QFN8 TO DIP8 two-in-one adapter

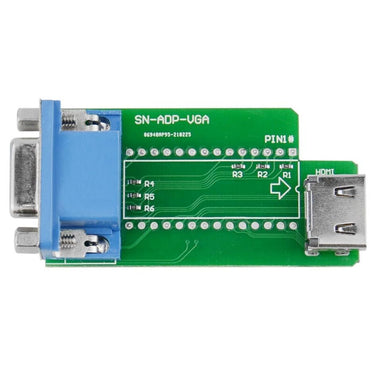

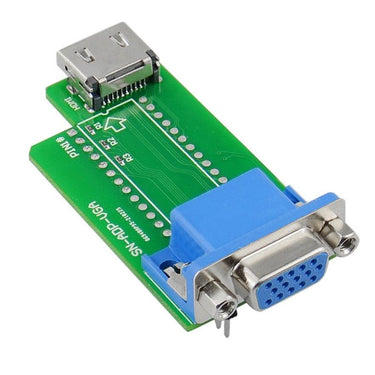

These VGA/HDMI adapters for the XGECU T56 programmer provide a powerful and convenient way to test or program TV's and Monitors. Simply connect to your T56 programmer, hook up to your display over HDMI or VGA, and the XGECU software will allow you to perform a variety of tasks including producing test patterns. The VGA port can also be used to test and program through USB 2.0/3.0, 3.5mm and 2.5mm ports using a self built adapter cable, the wiring for this is show in our images. Looking for more T56 accessories and adapters? Browse our T56 range. Looking for more T56 accessories and adapters? Browse our T56 range. Features and Usage Notes: For the XGECU T56 ONLY these will not work with other programmers For HDMI connections only use preassembled cables, the high frequencies of HDMI signalling (900mb/s or more) will not behave correctly over DIY cables Supports In-system programming (ISP), in-circuit serial programming (ICSP) and Serial console capture providing your TV or Monitor has this features

These handy adapters allow you to easily program 44-pin Quad Flat Pack (QFP44) chips with your T48, T56 or TL866 programmer. The durable clamshell ZIF socket ensures a secure connection to the pins. If your programmer supports your desired chip, or the DIP40 equivalent, this adapter will work. These are also ideal for programming ATMEGA48V ICs. Features and Specifications: Easy to use: Simply plug the adapter into your programmer and then insert the QFP44 chip Secure connection: The clamshell ZIF socket ensures a secure connection to the pins Breakout pins for VCC, SCK, MISO, MOSI, RST, GND and XTAL for ISP or JTAG support on ATmega162, ATmega8515 or similar IC's Support QFP44 IC's with 0.8mm pitch Supports ATMEGA16, ATMEGA644, ATMEGA32, ATMEGA8535, ATMEGA16A, ATMEGA32A, ATMEGA164P, ATMEGA324P, ATMEGA644P, ATMEGA1284P, MC9S08GT32ACFBE, MC908AP16ACFBE and similar Ideal for XGECU T48, T56, TL866 series programmers Will work with most other DIP40+ programmers Pin count: 44 (Socket) 40 (Base) Package type: QFP44 Socket type: ZIF Item includes: 1 x CNV-QFP-MPU51 44-Pin QFP Programmer Adapter

These DIP8 Probes are ideal for reading, programming, or testing DIP8 ICs in-situ. Simply connect the base to your programmer, select the appropriate IC in your programmer software, place the Probe on your DIP8 chip, and you're good to go! Save time, effort, and potential PCB damage by using these probes for In-system programming (ISP), also called in-circuit serial programming (ICSP). These probes are suitable for use with most programmers. If your programmer supports the chip, you can use this clip. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Specifications: Style: Adapter Model: DIP8 Probe Applicable IC Packages: DIP8 Pin spacing: 2.54mm Programmer connector: DIP8 Suitable Programmers: XGecu TL866II, T48, T56, RT809F, RT809H, EZP2019+, EZP2023, CH341A, Superpro, TNM, TOP, GQ-4X, Stager, SOFI and more. Package Includes: 1x DIP8 probe adapter

These high-quality probes are ideal for working on even the smallest of ICs. With their 0.13mm diameter clip, they will grab tiny chip legs easily and securely. Ideal for use in in-system programming (ISP), in-circuit serial programming (ICSP), testing, and JTAG duties, using the standard DuPont connectors on the other end to hook up to your oscilloscopes, IC programmer, Raspberry Pi, and more, you can easily probe, test, program, or read data from your IC. Features: Test, program, write, capture, and more with these great ISP probes Ideal for use with DIP, QFP, TSOP, SOP, SOP, SOIC, MSOP, SSOP, SMD, and more Supplied with a convenient case to keep your probes secure Supplied with test leads with standard DuPont connectors Ideal for use with TL866II, T48, T56, RT809H, RT809F, and similar programmers with ISP connectors or modules Also ideal for use with oscilloscopes, Raspberry Pi, Rpi2040, Arduino, and similar boards for data capture, JTAG, and more Specifications: Probe diameter: 0.13mm Probe length: 100mm Test lead length: 200mm Connector type: DuPont Package includes: 10 x 0.13mm probe test clips 10 x DuPont test leads Carry case Instruction manual

These SMD component test clips are ideal for getting a in circuit connection to very small surface mounted IC's. Ideal for use with Logic Analysers, Signal Generators, Oscilloscopes and IC Programmers, you can test, trace, ICSP, program and hack you way to a job well done. Easy to use pistol grip style design, sleeved arms, secure grip hooks and standard sized DuPont style connectors allow ease of use. Features and Specifications: Model: SDK08 Pack Size: 10 Clips Pack Contents: 2 Pieces of Yellow, Green, Black, Blue, Red Connectors Rated Voltage: 40V max Rated Amperage: 2A max Min Chip Pin Spacing: 0.3mm Connector: DuPont

These handy adapters allow you to easily program various PLCC style chips with your IC programmer. Simply place your PLCC chip in the socket and place in the DIP socket on your reader as normal. As long as your programmer supports the chip or it's DIP equivalent you should find these work. Available as a full kit with a PLCC IC extractor, or buy just the adpater you need.These are also ideal for dealing with chip shortages, if you cannot get a DIP package, find a PLCC version and use these adapters to use it in your existing design. Features and Specifications: Easy to use: Simply then insert the PLCC chip and plug the adapter into your programmer Ideal for XGECU T48, T56, TL866 series programmers Will also work with RT809F, RT809H, TNM5000 and similar programmers Pin count: 28, 32, 40, 44 Package type: PLCC Socket type: PLCC Item includes: 1 x Board as selected OR Full Kit

Read, Write, Program, Test and Burn even more IC Packages, Suitable for use with XGecu T48, TL866, TL866II, T56, RT809F and other IC Programmers. These handy adapters convert a range of SOP, TSOP and SSOP chips to standard DIP pinouts for easy use with your programmer. Save time, effort and potential damage to the IC by using these easy to use ZIF socket adapters. These will work with most popular IC programmers on the market as long as their software supports the IC package you wish to use. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: High quality and durable. Tested before shipping. Easy to use ZIF sockets. Rated lifespan of 5000 insertions Suitable for XGecu T48, TL866, TL866II and T56 series programmers Suitable for RT809F and EZP2019 series programmers. Suitable for ALL-11 Series,ALL-1OOGANG , LT—48 Series, 24C SERIES,SuperPRO Series, TOP Series etc. Specifications: SOP8(150MIL) to DIP8Universal SOIC, SOP8(EZ) 508 TO Dip 8 Adapter 150mil ICPin Pitch: 1.27mm and SOP8 narrow chips.Support Chips: 24CXX, 93CXX and all SOP8 narrow chips. SOP8(300MIL) to DIP8Universal 808 TO Dip 8 Adapter 200MIL 209MIL ICPin Pitch: 1.27mm and SOP8 broad chips.Suitable for W25Q Series, MX Series,Support Chips: 25QXX, MXXX and all SOP8 broad chips. SOP14(150MIL) to DIP14Type: Test BL Programming SocketPackage: SOP14, SOIC14, SO14Pin pitch: 1.27 mmPin Count: 14 pinsApplicable IC body width : 3.8mm 150MIL SOP16(150MIL) to DIP16Package: SOP16, SOIC16, SO16Pin pitch : 1.27 mmPin Count: 16 pinsApplicable lC body width : 3.8mm 150MIL SOP20(209MIL) to DIP20Package: SOP20, SOIC20, SO20Pin pitch : 1.27 mmPin Count: 20 pinsApplicable lC body width : 5.4mm 209MIL SSOP8(173MIL) to DIP8Package: TSSOP8, SSOP8Pin pitch : 0.65 mmPin Count: 8 pinsApplicable lC body width : 4.4mm 173MIL SSOP16(173MIL) to DIP16Package: TSSOP16, SSOP16Pin pitch : 0.65 mmPin Count: 16 pinsApplicable lC body width : 4.4mm 173MIL SSOP20(173MIL) to DIP20Package: TSSOP20, SSOP20Pin pitch : 0.65 mmPin Count: 20 pinsApplicable lC body width : 4.4mm 173MIL SSOP28(173MIL) to DIP28Package: TSSOP28, SSOP28Pin pitch : 0.65 mmPin Count: 28 pinsApplicable lC body width : 4.4mm 173MIL SOP16(300MIL) to DIP16Package: SOP16, SOIC16, SO16Pin pitch : 1.27 mmPin Count: 16 pinsApplicable lC body width : 7.5mm 300MIL SOP20(300MIL) to DIP20Package: SOP20, SOIC20, SO20Pin pitch : 1.27 mmPin Count: 20 pinsApplicable lC body width : 7.5mm 300MIL SOP28(300MIL) to DIP28Package: SOP28, SOIC28, SO28Pin pitch : 1.27 mmPin Count: 28 pinsApplicable lC body width : 7.5mm 300MIL

These handy adapters allow you to easily program various TSOP48 chips with your IC programmer. Simply place your TSOP48 chip in the high quality double contact ZIF socket, then place in the DIP socket on your reader as normal. As long as your programmer supports the chip or it's DIP equivalent you should find these work. These are also ideal for dealing with chip shortages, if you cannot get a DIP package, find a TSOP48 version and use these adapters to use it in your existing design. Features and Specifications: Easy to use: Simply then insert the TSOP48 chip into the ZIF socket and plug the adapter into your programmer High quality double contact ZIF socket Will also work with RT809F with PEB-1 Expansion, RT809H, 5000U, X8-Plus, EasyPro080B, TNM5000, TOP2013, TOP2008,TOP3000 and similar programmers Pin count: 48 Package type: TSOP Socket type: TSOP Model: RT-TSOP48 Item includes: 1 x TSOP48 to DIP48 Board

Enhance your IC programmers with these handy EDID Adapters. Designed to read and program 24C02 Serial Electrically Erasable PROM chips. The adapter has two headers for 30 and 40 pin screens, simply insert the DIP8 header into your T48, TL866II, T56 or similar programmer and access the chip over the cable. Save time and effort through In Circuit Serial Programming ISP/ICSP and not having to solder/desolder the chip. These are suitable for use with many programmers, if your programmer supports the chip you wish to program this adapter will allow you to work with it. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Specifications: Style: Adapter Model: EDID 24C02 to DIP8 Applicable IC Packages: 24C02 Series Programmer connector: DIP8 Suitable Programmers: XGecu T48, TL866II and T56 series RT809F EZP2019+ Also suitable for Superpro, TNM, TOP, GQ-4X, Stager, SOFI and more. Package Includes: 1x 24C02C EDID TO DIP8 Cable
