Hantek DSO5072P Digital Storage Oscilloscope 70MHz 2Channels 1GSa/s... £334.95 £389.95
The Hantek DSO5072P brings you a range of great features to allow you to measure, trace and record your electrical issues. Ideal for Diagnostic and Repair work, the ability to either record your data to USB or connect to your PC for live data capture gives you a range of flexibility. With its large 7 inch WVGA display you can see results clearly. Hantek digital oscilloscopes offer an excellent price/performance ratio.The DSO 5000 series offers twelve versions of digital oscilloscopes with the 60, 70, 100 and 200 MHz bandwidths. The main features of the DSO 5072P model are the 1GS/s maximum sampling rate, 24K sampling memory, USB host on the front USB panel (data storage possibility), connectivity for long-distance control by PC (software included) and external trigger. Standard delivery includes two 60 MHz passive probes 1:1 and 10:1.Use our info link at the top of the description to get the latest software. We will send you links for the latest software upon purchase. Features: 70 MHz bandwidth. 1GSa/s Real Time sample rate. Large (7.0-inch) color display,WVGA(800x480). Built-in memory for measurement storage: 2 GB Record length up to 40K. Trigger mode: edge/pulse width/line selectable video/slop/overtime etc. USB host and device connectivity, standard. 32 automatic measurements. Four math functions, including FFTs standard. Supplied with MSScope software for PC real-time analysis. Specifications Click to view Full Specifications × Model DSO5202P DSO5102P DSO5072P Acquisition Sample Rate Real-Time Sample: 1GS/s Equivalent Sample: 25GS/s Acquisition Modes Normal Normal data only Pea'k Detect High-frequency and randon glitch capture Average Waveform Average, selectable 4,8,16,32,64,128 Inputs Inputs Coupling AC, DC, GND Inputs Impedance 1MΩ±2% II20pF±3pF Probe Attenuation 1X, 10X Supported Probe Attenuation Factor 1X, 10X, 100X, 1000X Maximum Input Voltage CAT I and CAT II: 300VRMS (10×), Installation Category; CAT III: 150VRMS (1×); Installation Category II: rated at 20dB/decade above 100kHz to 13V Peak AC at 3MHz* and above. For non-sinusoidal waveforms, Peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur. Horizontal Sample Rate Range 500MS/s--1GS/s Waveform Interpolation (sin x)/x Record Length 40'K SEC/DIV Range DSO5202P4ns/div to 40s/div DSO5102P/DSO5072P4ns/div to 40s/div Sample Rate and Delay Time Accuracy ±50ppm(at over any ≥1ms time interval) Position Range DSO5202P2ns/div to 10ns/div;(-4div x s/div) to 20ms; DSO5102P/DSO5072P20ns/div to 80us/div; (-8div x s/div) to 40ms; 200us/div to 40s/div; (-8div x s/div) to 400s Incremental Time Measurement Accuracy (Full Bandwidth) Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200 Vertical Vertical Resolution 8-bit resolution, all channel sampled simultaneously Position Range 2mV/div to 200mV/div, ±2V 200mV/div to 5V/div, ±50V Bandwidth DSO5202P100MHz DSO5102P100MHz DSO5072P70MHz Rise Time at BNC( typical) DSO5202P3.5ns DSO5102P3.5ns DSO5072P5ns Analogue Bandwidth in Normal and Average modes at BNC or with probe, DC Coupled 2mV/div to 20mV/div, ±400mV; 50mV/div to 200mV/div, ±2V 500mV/div to 2V/div, ±40V; 5V/div, ±50V Math +, -, *, /, FFT FFT Windows: Hanning, Flatop, Rectangular, Bartlett, Blackman; 1024 sample point Bandwidth Limit 20MHz Low Frequency Response (-3db) ≤10Hz at BNC DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div DC Measurement Accuracy, Average Acquisition Mode When vertical displacement is zero, and N ≥16:± (3% × reading + 0.1div + 1mV) only 10mV/div or greater is selected; When vertical displacement is not zero, and N≥16: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 5V/div Volts Measurement Repeatability, Average Acquisition Mode Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions Trigger System Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative Trigger Source CH1, CH2, EXT, EXT/5, AC Line Trigger Modes Auto, Normal, Single Coupling Type DC, AC, Noise Reject, HF Reject, LF Reject Trigger Sensitivity (Edge Trigger Type) DC(CH1,CH2): 1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full; DC(EXT): 200mV from DC to 100MHz; 350mV from 100MHz to 200MHz; DC(EXT/5): 1V from DC to 100MHz;1.75V from 100MHz to 200MHz; AC: Attenuates signals below 10Hz; HF Reject: Attenuates signals above 80kHz; LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz Trigger Level Range CH1/CH2: ±8 divisions from center of screen; EXT: ±1.2V; EXT/5:±6V Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen; EXT: ± (6% of setting + 40mV); EXT/5: ± (6% of setting + 200mV); Set Level to 50%(typical) Operates with input signals ≥50Hz Video Trigger Video Trigger Type CH1, CH2: Pea'k-to-Pea'k amplitude of 2 divisions; EXT: 400mV; EXT/5: 2V Signal Formats and Field Rates, Video Trigger Type Supports NTSC, PAL and SECAM broadcast systems for any field or any line Holdoff Range 100ns ~ 10s Pulse Width Trigger Pulse Width Trigger Mode Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse Pulse Width Trigger Point Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level. Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width. Less than: The trigger point is the trailing edge. Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width Pulse Width Range 20ns ~ 10s Slope Trigger Slope Trigger Mode Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope Slope Trigger Point Equal: The oscilloscope triggers when the waveform slope is equal to the set slope. Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope. Less than: The oscilloscope triggers when the waveform slope is less than the set slope. Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope. Time Range 20ns ~ 10s Overtime Trigger Over Time Mode Rising edge or Falling edge Time Range 20ns ~ 10s Alternative Trigger Trigger on CH1 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger on CH2 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger Frequency Counter Readout Resolution 6 digits Accuracy (typical) ±30ppm (including all frequency reference errors and ±1 count errors) Frequency Range AC coupled, from 4Hz Min to rated bandwidth Signal Source Pulse Width or Edge Trigger modes: all available trigger sources The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed. Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as trigger able events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time. Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity. Video Trigger mode: The Frequency Counter does not work. Measure Cursor Measurement Voltage difference between cursors: ΔV Time difference between cursors: ΔT Reciprocal of ΔT in Hertz (1/ΔT) Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Min, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF Display Display Type 7 inch 64K color TFT (diagonal liquid crystal) Display Resolution 800 horizontal by 480 vertical pixels Display Contrast Adjustable (16 gears) with the progress bar Probe Compensator Output Output Voltage( typical) About 5Vpp into ≥1MΩ load Frequency(typical) 1kHz Power Supply Supply Voltage 100-120VACRMS(±10%), 45Hz to 440Hz, CATII 120-240VACRMS(±10%), 45Hz to 66Hz, CATII Power Consumption <30W Fuse 2A, T rating, 250V Environmental Temperature Operating: 32F to 122F (0C to 50C); Non-operating: -40F to 159.8F (-40C to +71C) Cooling Method Convection Humidity +104F or below (+40C or below): ≤90% relative humidity; 106F to 122F (+41C to 50C): ≤60% relative humidity Altitude Operating: Below 3,000m (10,000 feet); Non-operating: Below 15,000m(50,000 feet) Mechanical Size Length 385mm, Width 200mm, Height 245mm Weight 3.5KG(with Packing); 2.08KG(without Packing)
Hantek 2000 series 3-in-1 Digital Oscilloscope Waveform Generator Multimeter Portable USB 2 Channels 40/70mhz - NSE Imports Hantek 2000 series 3-in-1 Digital Oscilloscope Waveform Generator Multimeter Portable USB 2 Channels 40/70mhz - NSE Imports
Hantek
Ships from: ChinaShips from China to most countries
Hantek 2000 series 3-in-1 Digital Oscilloscope Waveform Generator... from £125.95
The Hantek 2000 handheld oscilloscope series provide a lightweight and compact 3 in 1 multifunction tester: Multimeter, Oscilloscope, Signal source / Waveform generator (2Dxx models only). Their small volume allows handheld operation, with an integrated desk stand featuring multi-angle adjustment for when you're at the bench. Ultra-low-power consumption with a USB Type-C charging interface, each 2 hours battery charge allow working one full day of use or standby for around two months. The High-definition colour LCD screen displays your readings clearly; Minimalist keyboard design simplifies operation. The USB connectivity feature allows your PC to measure and record in real-time. Please note: Only the 2Dxx models feature the Signal/Waveform generator feature.Use our info link at the top of the description to get the latest software. We will send you links for the latest software upon purchase. Features: 40 (2x4x models) or 70MHz (2x7x models) bandwidth. 250MSa/s Real Time sample rate. Oscilloscope + Waveform Generator + Multimeter: This multi-purpose station own three universal test instrument functions. It is outgoing right-hand product for engineers. Intelligent charging control: Its lithium batteries can be recharged by either high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy; Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months; Large-capacity lithium battery power supply: 18650 replaceable lithium battery power system, free from replace battery; 5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone; AUTO one-key test: Magic tool and essential function for test newbie; Volume small, one hand holding: The 45 degree suspension bracket design provide you a work station anywhere anytime; One key page out, quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective; Digital voltmeter function: automatic frequency and amplitude measurement, convenient and worry-free; Its cursor measurement function supports time and voltage manual measurement, and measure the required waveforms accurately; One-click switching its Chinese and English language menu; Colour LCD screen: exquisite and smooth lines make the waveforms clear and undistorted when magnify; Minimalist keyboard design simplify operation, convenient to use; Unibody casing: fine touch feeling, favourable impact resistance, outstanding heat resistance, easy to disassemble; Self-calibration function: free from level drift after long time unused; Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test; Waveform generator output function (2Dxx models only): output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz; Video help: Scan to QR code on back of machine to get help and video courses. The PC software supports Windows 7/8/10 32-bit and 64-bit. Specifications: Click to view Full Specifications × The included power adapter is a 5V/2A USB Charger, if your country uses a different plug any USB charger of the same rating will be fine Model Hantek2D72 Hantek2D42 Hantek2C72 Hantek2C42 Oscilloscope Mode Bandwidth 70MHz 40MHz 70MHz 40MHz Channel 2CH+DMM+AWG 2CH+DMM+AWG 2CH+DMM 2CH+DMM Horizontal Sample Rate Range 250MSa/s(Single-channel), 125MSa/s(Dual-channel) Waveform Interpolation (sin x)/x Record Length Max. 6K for single-channel; 3K samples per dual-channel SEC/DIV Range 5ns/div~500s/div  1, 2, 5 sequence Vertical A/D Converter 8-bit resolution,each channel sampled simultaneously VOLTS/DIV Range 10mV/div~10V/divat input BNC Bandwidth Limit, typical 20MHz Low Frequency Response (-3db) ≤10Hz at BNC Rise Time at BNC, typical ≤5ns DC Gain Accuracy ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div Note: Bandwidth reduced to 6MHz when using a 1X probe. Acquisition Acquisition Modes Normal Trigger Type Edge Mode Auto, Normal, single Level ±4 divisions from center of screen Trigger Level Accuracy 0.2div × volts/div within ±4 divisions from center of screen    Slope Rising, Falling, Rising & Falling Source CH1/CH2 Input Coupling DC, AC or GND Input Impedance,  25pF±3 pF, 1MΩ±2% DC coupled Probe Attenuation 1X, 10X Supported Probe Attenuation Factors 1X, 10X, 100X, 1000X Maximum Input Voltage 150VRMS Measurement Cursor Voltage difference between cursors: △V Time difference between cursors: △T Automatic Measurements Frequency, Amplitude Arbitrary Waveform Generator Mode Waveform Frequency Sine: 1Hz~25MHz           -           - Square: 1Hz~10MHz           -           - Ramp: 1Hz~1MHz           -           - EXP: 1Hz~5MHz           -           - Sampling 250MSa/s           -           - Amplitude 2.5Vpp(50Ω)           -           - 5Vpp(High impedance)           -           - Frequency Resolution 0.10%           -           - Channel 1CH waveform output           -           - Waveform Depth 512Sa           -           - Vertical Resolution 12 bit           -           - Output Impedance 50 Ω           -           - DMM Maximum Resolution 4000 Counts DMM Testing Modes Voltage,Current,Resistance,Capacitance,Diode &On-Off Maximum Input Voltage AC:600V, DC: 600V Maximum Input Current AC: 10A, DC:10A Input Impedance 10MΩ Measurement Term Range Accuracy Resolution DC Voltage 400.00mV ± (0.8% + 5) 100uV 4.000V 1mV 40.00V 10mV 400.0V 100mV 600.0V ± (1% + 2) 1V Overload protection: 400mV: 250V, other: 600Vrms. AC Voltage 4.000V ± (1.2% + 5) 1mV 40.00V 10mV 400.0V 100mV 600.0V ±(1.5% + 5) 1V Frequency: 40Hz~400Hz; Frequency of 400V and 600V: 40Hz~100Hz DC Current 40.00mA ± (1% + 2) 10uA 200.0mA ± (1.5% + 2) 100uA 4.000A ± (1.8% + 2) 1mA 10.00A ± (3% + 2) 10mA Overload protection:  self restoring fuse: 200mA/250V, 4A and 10A range no fuse. AC Current 40.00mA ± (1.3% + 2) 10uA 400.0mA ± (1.8% + 2) 100uA 4.000A ± (2% + 3) 1mA 10.00A ± (3% + 5) 10mA Frequency: 40Hz~400Hz; self restoring fuse: 200mA/250V, 4A and 10A range no fuse. Resistance 400.0Ω ±(1% + 3) 0.1Ω 4.000KΩ ±(1.2% + 5) 1Ω 60.00KΩ 10Ω 400.0KΩ 100Ω 4.000MΩ 1KΩ 40.00MΩ ± (1.5%±3) 10KΩ Overload protection: 220Vrms Capacitance 40.00nF ±(3% + 5) 10pF 400.0nF 100pF 4.000uF 1nF 40.00uF 10nF 100.0uF 100nF Overload protection: 220Vrms Diode 0V~1.0V On-Off <50Ω General Specifications Display Display Type 2.8 inch64K color TFT Display Resolution 320 horizontal by 240 vertical pixels Display Contrast Adjustable Power Supply Supply Voltage 100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A Power Consumption <2.5W Fuse T, 3A Battery 2600mA*2 Environmental Operating Temperature 0~50 °C (32~122 °F) Storage Temperature -40~+71 °C (-40~159.8 °F) Humidity ≤+104℉(≤+40°C): ≤90% relative humidity 106℉~122℉ (+41°C ~50°C): ≤60% relative humidity Cooling Method Convection Altitude Operating and 3,000m (10,000 feet) Nonoperating Mechanical Shock Random Vibration 0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis Nonoperating 2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis Operating 50g, 11ms, half sine Mechanical Dimension 199 x 98x 40mm (L x W x H) Weight 624g Standard Accessories Probe*1,Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 Probe*1,Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 Probe*1,Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 Probe*1,Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 Additional Images: Click to view Additional images × Great function with small size!: Minimalist keyboard design simplify operation, easy to use. Oscilloscope + Waveform Generator + Multimeter: Multi-purpose station own three universal test instrument functions. Outgoing right-hand product for engineers. Waveform Generator Function (2Dxx models only): A multi-purpose instrument that helps complete your tasks more quickly, improves work efficiency, and meets all your current and future test needs. Multifunction Digital Multimeter Function: High sensitivity and accuracy, showing clear, strong anti-overload capability, easy to carry. Intelligent Charging Control: Be able to recharged by 5V/2A large current or ordinary computer USB port, measurement can be done even while charging, convenience and user-friendly. Large-capacity Lithium Battery + Ultra Low Power + Type C Data Transfer/Charging Interface: 18650 replaceable lithium battery power system, free from replace battery; Able to be recharged by 5V/2A large current or ordinary computer USB port, able to use while charging, very convenient and handy; USB Type-C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months; USB Type-C power + data transfer interface, can share the charger and data cable with your mobile phone; Interface layout Powerful PC software: Oscilloscope powerful functions: 20 kinds of automatic measurement, cursor measurement, waveform printing and saving functions, REF and Math functions, Pass / Fail functions. The waveform generator is able to draw and output arbitrary waveforms on its PC software Its multimeter with recorder function, which support the measurement results to generate the curves and analyse them.
Hanmatek DOS1102 Best Digital Oscilloscope 100mhz 2 channel 1gsa/s 7 inch LCD USB PC Connection - NSE Imports Hanmatek DOS1102 Best Digital Oscilloscope 100mhz 2 channel 1gsa/s 7 inch LCD USB PC Connection - NSE Imports
Hanmatek
Ships from: ChinaShips from China to most countries
Hanmatek DOS1102 Digital Oscilloscope: 100mhz 2 channel 1gsa/s... £172.95 £201.95

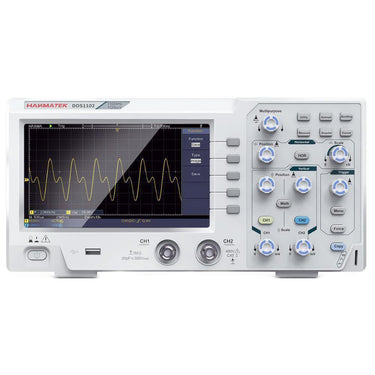

The Hanmatek DOS1102 is a great digital storage oscilloscope for those looking diagnose and measure a wide range of signals and devices, ideal for fault finding and diagnosis work. The integrated LCD screen clearly shows your measurements, or connect via USB to your PC for recording large screen viewing of your data collection.Use our info link at the top of the description to get the latest software. We will send you links for the latest software upon purchase. Features: 110MHz bandwidth, 1GSa / s real-time sampling rate, dual channel, 2ns / div ~ 1000s / div time base range; storage depth (record length of each acquired waveform) is not less than 10K sampling points; stored waveform is not less 16 groups; with U disk storage function; USB Device & Host interface. 7 inch 800*480 LCD screen. Support cursor measurement, cursor mode is not less than voltage difference (△ V), time difference (△ T), time difference & voltage difference ( △ V), four modes of automatic cursor With automatic range function, support horizontal, vertical, single waveform / multi-waveform tracking; probe attenuation multiples of 1X, 10X, 100X, 1000X, four kinds Built-in 6-bit hardware frequency meter, which can measure 2Hz ~ 20MHz; with current measurement function, measurement range: 100.0mA / V ~ 1KA / V 30 kinds of automatic measurement functions. Support LABVIEW communication, support secondary development. Ultra-portable oscilloscope with a volume of 301 x 152 x 70 mm, ultra-thin body design, thickness of 70 mm, weight of 1.1 kg, saving more desktop space, ultra-quiet design, power consumption not higher than 18W Package included:1 x Oscilloscope, 1 x Oscilloscope Kit Model Number: DOS1102 Languages: Chinese, English, German, French, Italian, Spanish, Japanese, Russian Specifications: Click to view Full Specifications × Characteristics Performance Bandwidth 110 MHz Rise Time (at input, typical) ≤3.5 ns Horizontal Scale 2 ns/div - 1000 s/div,step by 1 - 2 - 5 Sample rate(real time) 1 GS/s Display 7inch Colored LCD (Liquid Crystal Display),65536 colors, 800 x 480 pixels Channel 2 channels Max Record length 10K Sampling rate / relay time accuracy ±100 ppm Input coupling DC, AC, Ground Input impedance 1 MQ±2%, in parallel with 20 pF±5 pF Max. input voltage 400V(DC+AC, PK-PK) DC Gain Accuracy ±3% Vertical Sensitivity 5 mV/div-5 V/div Trigger type Edge, Video Trigger mode Auto, Normal, Single Line/field frequency (Video) Support standard NTSC, PAL and SECAM broadcast systems Automatic measurement Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B  Delay A←B,Cycle RMS, Cursor RMS, Screen Duty, Phase, +Pulse Count, -Pulse Count, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area. Waveform Math +,-,x,÷ ,FFT Waveform storage 16 waveforms Communication interface USB 2.0, USB flash disk storage Power supply 100-240 VACRMS, 50/60 Hz, CAT II Fuse 2A, T class, 250 V Dimension 301mm x 152 mm x 70 mm (L*H*W) Weight About 1.1kg
Hantek DSO5102P USB Digital Storage Oscilloscope 100MHz 1GSa/s 2 Channels - NSE Imports Hantek DSO5102P USB Digital Storage Oscilloscope 100MHz 1GSa/s 2 Channels - NSE Imports
Hantek
Ships from: ChinaShips from China to most countries
Hantek DSO5102P USB Digital Storage Oscilloscope 100MHz 1GSa/s... £313.95
The Hantek DSO5102P brings you a range of great features to allow you to measure, trace and record your electrical issues. Ideal for Diagnostic and Repair work, the ability to either record your data to USB or connect to your PC for live data capture gives you a range of flexibility. With its large 7 inch WVGA display you can see results clearly.Hantek digital oscilloscopes offer an excellent price/performance ratio. The DSO 5000 series offers twelve versions of digital oscilloscopes with the 60, 70, 100 and 200 MHz bandwidths. The main features of the DSO 5102P model are the 1GS/s maximum sampling rate, 24K sampling memory, USB host on the front USB panel (data storage possibility), connectivity for long-distance control by PC (software included) and external trigger. Standard delivery includes two 60 MHz passive probes 1:1 and 10:1. Comfortable and user-friendly layout of the control elements is underlined by a large 7inch colour TFT display with 800x480 point resolution.Use our info link at the top of the description to get the latest software. We will send you links for the latest software upon purchase. Features: 100 MHz bandwidth. 1GSa/s Real Time sample rate. Large (7.0-inch) colour display,WVGA(800x480). Built-in memory for measurement storage: 2 GB Record length up to 40K. Trigger mode: edge/pulse width/line selectable video/slop/overtime etc. USB host and device connectivity, standard. 32 automatic measurements. Four math functions, including FFTs standard. Supplied with MSScope software for PC real-time analysis. Specifications: Click to view Full Specifications × Model DSO5202P DSO5102P DSO5072P Acquisition Sample Rate Real-Time Sample: 1GS/s Equivalent Sample: 25GS/s Acquisition Modes Normal Normal data only Pea'k Detect High-frequency and randon glitch capture Average Waveform Average, selectable 4,8,16,32,64,128 Inputs Inputs Coupling AC, DC, GND Inputs Impedance 1MΩ±2% II20pF±3pF Probe Attenuation 1X, 10X Supported Probe Attenuation Factor 1X, 10X, 100X, 1000X Maximum Input Voltage CAT I and CAT II: 300VRMS (10×), Installation Category; CAT III: 150VRMS (1×); Installation Category II: rated at 20dB/decade above 100kHz to 13V Peak AC at 3MHz* and above. For non-sinusoidal waveforms, Peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur. Horizontal Sample Rate Range 500MS/s--1GS/s Waveform Interpolation (sin x)/x Record Length 40'K SEC/DIV Range DSO5202P4ns/div to 40s/div DSO5102P/DSO5072P4ns/div to 40s/div Sample Rate and Delay Time Accuracy ±50ppm(at over any ≥1ms time interval) Position Range DSO5202P2ns/div to 10ns/div;(-4div x s/div) to 20ms; DSO5102P/DSO5072P20ns/div to 80us/div; (-8div x s/div) to 40ms; 200us/div to 40s/div; (-8div x s/div) to 400s Incremental Time Measurement Accuracy (Full Bandwidth) Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200 Vertical Vertical Resolution 8-bit resolution, all channel sampled simultaneously Position Range 2mV/div to 200mV/div, ±2V 200mV/div to 5V/div, ±50V Bandwidth DSO5202P100MHz DSO5102P100MHz DSO5072P70MHz Rise Time at BNC( typical) DSO5202P3.5ns DSO5102P3.5ns DSO5072P5ns Analogue Bandwidth in Normal and Average modes at BNC or with probe, DC Coupled 2mV/div to 20mV/div, ±400mV; 50mV/div to 200mV/div, ±2V 500mV/div to 2V/div, ±40V; 5V/div, ±50V Math +, -, *, /, FFT FFT Windows: Hanning, Flatop, Rectangular, Bartlett, Blackman; 1024 sample point Bandwidth Limit 20MHz Low Frequency Response (-3db) ≤10Hz at BNC DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div DC Measurement Accuracy, Average Acquisition Mode When vertical displacement is zero, and N ≥16:± (3% × reading + 0.1div + 1mV) only 10mV/div or greater is selected; When vertical displacement is not zero, and N≥16: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 5V/div Volts Measurement Repeatability, Average Acquisition Mode Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions Trigger System Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative Trigger Source CH1, CH2, EXT, EXT/5, AC Line Trigger Modes Auto, Normal, Single Coupling Type DC, AC, Noise Reject, HF Reject, LF Reject Trigger Sensitivity (Edge Trigger Type) DC(CH1,CH2): 1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full; DC(EXT): 200mV from DC to 100MHz; 350mV from 100MHz to 200MHz; DC(EXT/5): 1V from DC to 100MHz;1.75V from 100MHz to 200MHz; AC: Attenuates signals below 10Hz; HF Reject: Attenuates signals above 80kHz; LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz Trigger Level Range CH1/CH2: ±8 divisions from center of screen; EXT: ±1.2V; EXT/5:±6V Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen; EXT: ± (6% of setting + 40mV); EXT/5: ± (6% of setting + 200mV); Set Level to 50%(typical) Operates with input signals ≥50Hz Video Trigger Video Trigger Type CH1, CH2: Pea'k-to-Pea'k amplitude of 2 divisions; EXT: 400mV; EXT/5: 2V Signal Formats and Field Rates, Video Trigger Type Supports NTSC, PAL and SECAM broadcast systems for any field or any line Holdoff Range 100ns ~ 10s Pulse Width Trigger Pulse Width Trigger Mode Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse Pulse Width Trigger Point Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level. Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width. Less than: The trigger point is the trailing edge. Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width Pulse Width Range 20ns ~ 10s Slope Trigger Slope Trigger Mode Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope Slope Trigger Point Equal: The oscilloscope triggers when the waveform slope is equal to the set slope. Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope. Less than: The oscilloscope triggers when the waveform slope is less than the set slope. Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope. Time Range 20ns ~ 10s Overtime Trigger Over Time Mode Rising edge or Falling edge Time Range 20ns ~ 10s Alternative Trigger Trigger on CH1 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger on CH2 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger Frequency Counter Readout Resolution 6 digits Accuracy (typical) ±30ppm (including all frequency reference errors and ±1 count errors) Frequency Range AC coupled, from 4Hz Min to rated bandwidth Signal Source Pulse Width or Edge Trigger modes: all available trigger sources The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed. Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as trigger able events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time. Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity. Video Trigger mode: The Frequency Counter does not work. Measure Cursor Measurement Voltage difference between cursors: ΔV Time difference between cursors: ΔT Reciprocal of ΔT in Hertz (1/ΔT) Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Min, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF Display Display Type 7 inch 64K color TFT (diagonal liquid crystal) Display Resolution 800 horizontal by 480 vertical pixels Display Contrast Adjustable (16 gears) with the progress bar Probe Compensator Output Output Voltage( typical) About 5Vpp into ≥1MΩ load Frequency(typical) 1kHz Power Supply Supply Voltage 100-120VACRMS(±10%), 45Hz to 440Hz, CATII 120-240VACRMS(±10%), 45Hz to 66Hz, CATII Power Consumption <30W Fuse 2A, T rating, 250V Environmental Temperature Operating: 32F to 122F (0C to 50C); Non-operating: -40F to 159.8F (-40C to +71C) Cooling Method Convection Humidity +104F or below (+40C or below): ≤90% relative humidity; 106F to 122F (+41C to 50C): ≤60% relative humidity Altitude Operating: Below 3,000m (10,000 feet); Non-operating: Below 15,000m(50,000 feet) Mechanical Size Length 385mm, Width 200mm, Height 245mm Weight 3.5KG(with Packing); 2.08KG(without Packing)
Hantek DSO5202P Digital Oscilloscope 200MHz 1GSa/s 2 Channels 7inch TFT LCD PC USB Electrical Tool - NSE Imports Hantek DSO5202P Digital Oscilloscope 200MHz 1GSa/s 2 Channels 7inch TFT LCD PC USB Electrical Tool - NSE Imports
Hantek
Ships from: ChinaShips from China to most countries
Hantek DSO5202P Digital Oscilloscope 200MHz 1GSa/s 2 Channels... £386.95
The Hantek DSO5202P brings you a range of great features to allow you to measure, trace and record your electrical issues. Ideal for Diagnostic and Repair work, the ability to either record your data to USB or connect to your PC for live data capture gives you a range of flexibility. With its large 7 inch WVGA display you can see results clearly. Hantek digital oscilloscopes offer an excellent price/performance ratio.The DSO 5000 series offers twelve versions of digital oscilloscopes with 60, 70, 100 and 200 MHz bandwidths. The main features of the DSO 5202P model are the 1GS/s maximum sampling rate, 24K sampling memory, USB host on the front USB panel (data storage possibility), connectivity for long-distance control by PC (software included) and external trigger. The pack includes two 60 MHz passive probes 1:1 and 10:1 suitable for most tasks.Use our info link at the top of the description to get the latest software. We will send you links for the latest software upon purchase. Features: 200MHz bandwidths. 1GSa/s Real Time sample rate. Large (7.0-inch) color display,WVGA(800x480). Record length up to 40K. Trigger mode: edge/pulse width/line selectable video/slop/overtime etc. USB host and device connectivity, standard. 32 automatic measurements. Four math functions, including FFTs standard. Supplied with MSScope software for PC real-time analysis. Specifications: Click to view Full Specifications × Model DSO5202P DSO5102P DSO5072P Acquisition Sample Rate Real-Time Sample: 1GS/s Equivalent Sample: 25GS/s Acquisition Modes Normal Normal data only Pea'k Detect High-frequency and randon glitch capture Average Waveform Average, selectable 4,8,16,32,64,128 Inputs Inputs Coupling AC, DC, GND Inputs Impedance 1MΩ±2% II20pF±3pF Probe Attenuation 1X, 10X Supported Probe Attenuation Factor 1X, 10X, 100X, 1000X Maximum Input Voltage CAT I and CAT II: 300VRMS (10×), Installation Category; CAT III: 150VRMS (1×); Installation Category II: rated at 20dB/decade above 100kHz to 13V Peak AC at 3MHz* and above. For non-sinusoidal waveforms, Peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur. Horizontal Sample Rate Range 500MS/s--1GS/s Waveform Interpolation (sin x)/x Record Length 40'K SEC/DIV Range DSO5202P4ns/div to 40s/div DSO5102P/DSO5072P4ns/div to 40s/div Sample Rate and Delay Time Accuracy ±50ppm(at over any ≥1ms time interval) Position Range DSO5202P2ns/div to 10ns/div;(-4div x s/div) to 20ms; DSO5102P/DSO5072P20ns/div to 80us/div; (-8div x s/div) to 40ms; 200us/div to 40s/div; (-8div x s/div) to 400s Incremental Time Measurement Accuracy (Full Bandwidth) Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200 Vertical Vertical Resolution 8-bit resolution, all channel sampled simultaneously Position Range 2mV/div to 200mV/div, ±2V 200mV/div to 5V/div, ±50V Bandwidth DSO5202P100MHz DSO5102P100MHz DSO5072P70MHz Rise Time at BNC( typical) DSO5202P3.5ns DSO5102P3.5ns DSO5072P5ns Analogue Bandwidth in Normal and Average modes at BNC or with probe, DC Coupled 2mV/div to 20mV/div, ±400mV; 50mV/div to 200mV/div, ±2V 500mV/div to 2V/div, ±40V; 5V/div, ±50V Math +, -, *, /, FFT FFT Windows: Hanning, Flatop, Rectangular, Bartlett, Blackman; 1024 sample point Bandwidth Limit 20MHz Low Frequency Response (-3db) ≤10Hz at BNC DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div DC Measurement Accuracy, Average Acquisition Mode When vertical displacement is zero, and N ≥16:± (3% × reading + 0.1div + 1mV) only 10mV/div or greater is selected; When vertical displacement is not zero, and N≥16: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 5V/div Volts Measurement Repeatability, Average Acquisition Mode Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions Trigger System Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative Trigger Source CH1, CH2, EXT, EXT/5, AC Line Trigger Modes Auto, Normal, Single Coupling Type DC, AC, Noise Reject, HF Reject, LF Reject Trigger Sensitivity (Edge Trigger Type) DC(CH1,CH2): 1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full; DC(EXT): 200mV from DC to 100MHz; 350mV from 100MHz to 200MHz; DC(EXT/5): 1V from DC to 100MHz;1.75V from 100MHz to 200MHz; AC: Attenuates signals below 10Hz; HF Reject: Attenuates signals above 80kHz; LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz Trigger Level Range CH1/CH2: ±8 divisions from center of screen; EXT: ±1.2V; EXT/5:±6V Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen; EXT: ± (6% of setting + 40mV); EXT/5: ± (6% of setting + 200mV); Set Level to 50%(typical) Operates with input signals ≥50Hz Video Trigger Video Trigger Type CH1, CH2: Pea'k-to-Pea'k amplitude of 2 divisions; EXT: 400mV; EXT/5: 2V Signal Formats and Field Rates, Video Trigger Type Supports NTSC, PAL and SECAM broadcast systems for any field or any line Holdoff Range 100ns ~ 10s Pulse Width Trigger Pulse Width Trigger Mode Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse Pulse Width Trigger Point Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level. Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width. Less than: The trigger point is the trailing edge. Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width Pulse Width Range 20ns ~ 10s Slope Trigger Slope Trigger Mode Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope Slope Trigger Point Equal: The oscilloscope triggers when the waveform slope is equal to the set slope. Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope. Less than: The oscilloscope triggers when the waveform slope is less than the set slope. Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope. Time Range 20ns ~ 10s Overtime Trigger Over Time Mode Rising edge or Falling edge Time Range 20ns ~ 10s Alternative Trigger Trigger on CH1 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger on CH2 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger Frequency Counter Readout Resolution 6 digits Accuracy (typical) ±30ppm (including all frequency reference errors and ±1 count errors) Frequency Range AC coupled, from 4Hz Min to rated bandwidth Signal Source Pulse Width or Edge Trigger modes: all available trigger sources The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed. Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as trigger able events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time. Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity. Video Trigger mode: The Frequency Counter does not work. Measure Cursor Measurement Voltage difference between cursors: ΔV Time difference between cursors: ΔT Reciprocal of ΔT in Hertz (1/ΔT) Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Min, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF Display Display Type 7 inch 64K color TFT (diagonal liquid crystal) Display Resolution 800 horizontal by 480 vertical pixels Display Contrast Adjustable (16 gears) with the progress bar Probe Compensator Output Output Voltage( typical) About 5Vpp into ≥1MΩ load Frequency(typical) 1kHz Power Supply Supply Voltage 100-120VACRMS(±10%), 45Hz to 440Hz, CATII 120-240VACRMS(±10%), 45Hz to 66Hz, CATII Power Consumption <30W Fuse 2A, T rating, 250V Environmental Temperature Operating: 32F to 122F (0C to 50C); Non-operating: -40F to 159.8F (-40C to +71C) Cooling Method Convection Humidity +104F or below (+40C or below): ≤90% relative humidity; 106F to 122F (+41C to 50C): ≤60% relative humidity Altitude Operating: Below 3,000m (10,000 feet); Non-operating: Below 15,000m(50,000 feet) Mechanical Size Length 385mm, Width 200mm, Height 245mm Weight 3.5KG(with Packing); 2.08KG(without Packing)
Hantek DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel - NSE Imports Hantek DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel - NSE Imports
Hantek
Ships from: ChinaShips from China to most countries
Hantek DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s... £218.95
The Hantek DSO2D10 is a cost-effective oscilloscope that offers a wide range of features and specifications, making it ideal for both beginners and advanced users. With a bandwidth of 150 MHz, a sample rate of 1 GSa/s, and a memory depth of 8 M, the DSO2D10 can capture and analyze even the most complex signals. The DSO2D10 also features a built-in waveform generator, which can be used to create test signals for troubleshooting and debugging. The scope also supports 14 trigger modes, standard with 5 kinds of serial protocol triggers and decodes, and 32 kinds of auto measurements with statistics. In addition to its powerful oscilloscope features, the DSO2D10 also includes a 3-digit digital voltage meter and a 6-digit hardware frequency indicator. It also has 2 sets of DVM and abundant SCPI remote command control. The DSO2D10 is a versatile tool that can be used in a variety of fields, including communication, aerospace, embedded systems, computers, research, PCB repair, and education. It is a valuable addition to any engineer's toolkit. Use our info link at the top of the description to get the latest software. We will send you links for the latest software upon purchase. Features: 2 channels, each channel has independent knob control; Analog bandwidth 100MHZ The highest sampling rate is 1 GSa/s; The storage depth is 8Mpts; The vertical range 2mV/div ~ 10V/div; Built-in a 25MHz signal generator; Vertical resolution: 8bit; Trigger: edge, pulse, video, slope, timeout, window, pattern, interval, runt, UART, LIN, CAN, SPI, IIC;  Bus decoding and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN; Can save settings, waveforms, reference waveforms, CSV, pictures and other data formats. 3-digit digital voltmeter and 6-digit frequency meter functions; Support 32 kinds of automatic measurement and statistics functions, real-time statistics of minimum, maximum, standard deviation and other statistical information;  Two sets of digital voltmeter functions; Support threshold test to realize free measurement in the screen; Rich SCPI remote control instructions; Able to connect to a PC over USB for live data capture and logging Able to store data on a USB Stick for later inspection Package includes: 1 X Hantek DSO2D10 Digital Oscilloscope, 1 x Probe, 2 x BNC to Alligator Clip Test Cables, 1 x Power Cable, 1 x USB Cable These run on 110V-240V AC We will send an appropriate power lead for your country. Specifications: Click to view Full Specifications × Model DSO2D15 DSO2D10 DSO2C15 DSO2C10 Bandwidth 150MHz 100MHz 150MHz 100MHz Oscilloscope channels 2CH 2CH 2CH 2CH Waveform generator 1CH 1CH  -  - Oscilloscope Sample rate 1GSa/s (single channel) 500MSa/s (two channels) Acquisition Normal Sample data Peak-to-peak value Display high frequency and random burr Average Average waveform, times: 4, 8, 16, 32, 64, 128 High resolution Up to 12bit Input Input coupling DC, AC, GND Input impedance 1MΩ±2% ‖20pF±3pF Probe attenuation factor 1X, 10X, 100X, 1000X Voltage rating 300V CAT II Maximum input voltage 300VRMS (10X) Horizontal Waveform interpolation (sin x)/x Maximum record length Single channel maximum 8M Two channels maximum 4M Horizontal scale range 2ns/div~100s/div 1, 2, 5 step by step Time base mode Y-T, X-Y, Roll Zero offset ±0.5 div*minimum time base gear Sample Rate and Delay Time Accuracy ±25ppm Delta Time Measurement Accuracy (Full Bandwidth) Sample Rate and Delay Time Accuracy single-shot, Normal mode ±(1 sample interval+100ppm×reading+0.6ns) >16 times averages ±(1 sample interval+100ppm×reading+0.4ns) Sample interval=sec/div÷200 Sample Rate and Delay Time Accuracy ±50ppm(at any interval greater than 1ms) Vertical Model DSO2D15 DSO2D10 DSO2C15 DSO2C10 Bandwidth 150MHz 100MHz 150MHz 100MHz Rising time in BNC position (typical) 2.4ns 3.5ns 2.4ns 3.5ns Vertical resolution 8 bits resolution, each channel samples simultaneously Vertical sensitivity 2mV/div to 10V/div Offset range ≥ 200mV/div, ±1V; <200mV/div ±50V Mathematical operation +, -, ×, ÷, FFT FFT Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop Bandwidth Limit 20MHz Bass response(-3db) In BNC position ≤ 10Hz Vertical gain accuracy In ''normal''  or ''average'' acquisition mode, the accuracy of 10V/div to 10mV/div is ±3%; In ''normal'' or ''average'' acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4% Note: Bandwidth reduced to 6MHz when using a 1X probe Trigger Trigger type Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC Trigger level range  ±5 divisions from the center of the screen Trigger mode Auto, Normal, single Level CH1~CH2 ±4 divisions from the center of the screen EXT(Only With AWG Model) 0~3.3V Holdoff range 8ns~10s Trigger level accuracy CH1~CH2 0.2 div×volts/div within ±4 divisions from the center of the screen EXT(Only With AWG Model) ±(Set value× 6%+40mV) Edge trigger Slope Rising edge, falling edge, rising or falling edge Signal source CH1, CH2, EXT(Only With AWG Model) Pulse width trigger Polarity Positive polarity, negative polarity Condition(When) <, >, !=, = Signal source CH1~CH2, Pulse width range 8ns ~ 10s Accuracy 8ns Video trigger Signal standard NTSC, PAL Signal source CH1~CH2 Synchronization Scanning line, line number, odd field, even field, all field Slope trigger Slope rising, falling Condition(When) <, >, !=,  = Signal source CH1 ~ CH2 Time range 8ns ~ 10s Accuracy 8ns Overtime trigger Signal source CH1~CH2, Polarity Positive polarity, negative polarity Time range 8ns ~ 10s Accuracy 8ns Window trigger Signal source CH1~CH2  Pattern trigger Pattern 0: low level; 1: high level; X: ignore Level(signal source) CH1~CH2 Interval trigger Slope rising, falling Condition(When) <, >,  !=,  = Signal source CH1~CH2 Time range 8ns ~ 10s Accuracy 8ns Under Amp trigger Polarity Positive polarity, negative polarity Condition(When) <, >, !=, = Signal source CH1~CH2 Time range 8ns ~ 10s Accuracy 8ns UART trigger Condition(When) Start, Stop, data, Parity ERR, COM ERR Signal source(RX/TX) CH1~CH2  Data format Hex (hexadecimal) Data length 1 byte Data bit width 5 bit, 6 bit, 7 bit, 8 bit Odd-even check none, odd, even Idle level high, low Baud rate (optional) 110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s Baud rate(user-defined) 300bit/s~334000bit/s LIN trigger Condition(When) Interval field, synchronization field, ID field, synchronization error, identifier, ID and data Signal source CH1~CH2 Data format Hex (hexadecimal) Baud rate (optional) 110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s Baud rate(user-defined) 300bit/s~334000bit/s CAN trigger Condition(When) Start bit, remote frame ID, data frame ID, frame ID, data frame data, error frame, all errors, ACK Error, overload frame Signal source CH1~CH2 Data format Hex (hexadecimal) Baud rate (optional) 10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000 Baud rate(user-defined) 5kbit/s~1Mbit/s   SPI trigger Signal source CH1~CH2 Data format Hex (hexadecimal) Data bit width 4, 8, 16, 24, 32 IIC trigger Signal source (SDA/SCL) CH1~CH2 Data format Hex (hexadecimal)         Data index 0~7 When(condition) Start bit, stop bit, No Ack, address, restart, address and data Measurement Cursor Voltage difference between cursors △V Time difference between cursors △T Reciprocal of △T, in Hertz (1/△T) Auto measurement frequency, period, mean, peak-to-peak, RMS, minimum, maximum, rising time, falling time, + width, - width, base, top, middle, amplitude, overshoot, preshoot, rising edge phase difference, falling edge phase difference, + duty, - duty, period mean, PRMS, FOVshoot, ROVshoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF DVM Data source CH1, CH2 Measurement type DC RMS AC RMS DC Frequency meter hardware 6 bits frequency meter Arbitrary waveform generator Channel 1 Sample rate 200MSa/s Vertical resolution 12 bits  Maximum frequency 25 MHz  Standard waveforms sine, square, ramp,Exp, noise, DC Arbitrary waveform Arb1, Arb2, Arb3, Arb4 Sin Frequency range 0.1Hz~25MHz Square/pulse Frequency range 0.1Hz~10MHz Triangular wave Frequency range 0.1Hz~1MHz Sampling wave Frequency range 0.1Hz~1MHz Index Frequency range 0.1Hz~5MHz Noise   Arb1 Frequency range 0.1 Hz to 10 MHz  Arb2 Frequency range 0.1 Hz to 10 MHz  Arb3 Frequency range 0.1 Hz to 10 MHz  Arb4 Frequency range 0.1 Hz to 10 MHz  Waveform length 4KSa Frequency Accuracy 100 ppm (<10 kHz) 50 ppm (>10 kHz) Resolution 0.1 Hz or 4 bits,take the greater one Amplitude Output range 10mV~7Vp-p (high impedance) 5mV~3.5Vp-p (50Ω) DC offset Range ±3.5 V, high impedance ±1.75 V, 50 Ω Resolution 100 μV or 3 bits, take the greater one Accuracy 2% (1 kHz) Output impedance 50 Ω General specifications Display Display type 7'' diagonal TFT liquid crystal Display resolution 800 (horizontal)*480 (vertical) pixels Display colour 16 million colours (24 bits true colour) Persistence time minimum, 1 s, 5 s, 10 s, 30 s, infinite Display type dot, vector Display brightness adjustable Grid type adjustable Grid brightness adjustable Interface Standard interface USB Host,USB Device General specifications Probe compensator output Output voltage, typical about 2Vpp input ≥1MΩ load Frequency, typical 1kHz Power supply 100-120VACRMS(±10%), 45Hzto 440Hz, CATⅡ 120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ Power consumption <30W Fuse T, 3.15A, 250V, 5x20mm Operating temperature 0~50 °C (32~122 °F) Storage temperature -40~+71 °C (-40~159.8 °F) Humidity ≤+104℉(≤+40°C): ≤90% relative humidity 106℉~122℉ (+41°C ~50°C): ≤60% relative humidity Altitude Operating and non-operating 3, 000m (10, 000 feet) Mechanical shock Random vibration 0.31 g RMS from 50Hz to 500Hz, 10 minutes on each axis Non-operating 2.46g RMS from 5Hz to 500Hz, 10 minutes on each axis Operating 50g, 11ms, half-sine wave Mechanical Size 318 x 110 x 150mm (length x width x height) Weight 1900g Additional Images: Click to view Additional images × In use screen captures 1CH 25MHz waveform generator, support arbitrary waveform burst output, support modulation waveform output 32 kinds of auto measurements with statistics Can save 10 sets of reference waveforms, CSV waveforms and settings. The USB one-click screenshot function. 2 sets of DVM, 3-digit digital voltage meter and 6-digit hardware frequency indicator functions Serial bus trigger and decode, with the protocol monitoring function 8M memory depth, reducing waveform distortion and restore real waveforms Pass/Fail testing Mathematical operation and FFT X-Y format and display in dual windows
10-Pack 0.13mm ISP Probes for In-System Programming, Testing, and JTAG - NSE Imports 10-Pack 0.13mm ISP Probes for In-System Programming, Testing, and JTAG - NSE Imports
NSE Imports
Ships from: ChinaShips from China to most countries
10-Pack 0.13mm ISP Probes for In-System Programming, Testing,... £8.95
These high-quality probes are ideal for working on even the smallest of ICs. With their 0.13mm diameter clip, they will grab tiny chip legs easily and securely. Ideal for use in in-system programming (ISP), in-circuit serial programming (ICSP), testing, and JTAG duties, using the standard DuPont connectors on the other end to hook up to your oscilloscopes, IC programmer, Raspberry Pi, and more, you can easily probe, test, program, or read data from your IC. Features: Test, program, write, capture, and more with these great ISP probes Ideal for use with DIP, QFP, TSOP, SOP, SOP, SOIC, MSOP, SSOP, SMD, and more Supplied with a convenient case to keep your probes secure Supplied with test leads with standard DuPont connectors Ideal for use with TL866II, T48, T56, RT809H, RT809F, and similar programmers with ISP connectors or modules Also ideal for use with oscilloscopes, Raspberry Pi, Rpi2040, Arduino, and similar boards for data capture, JTAG, and more Specifications: Probe diameter: 0.13mm Probe length: 100mm Test lead length: 200mm Connector type: DuPont Package includes: 10 x 0.13mm probe test clips 10 x DuPont test leads Carry case Instruction manual
LA104 Portable Logic Analyser 100MHz 4ch 8MB Onboard Flash Storage Oscilloscope - NSE Imports LA104 Portable Logic Analyser 100MHz 4ch 8MB Onboard Flash Storage Oscilloscope - NSE Imports
Miniware
Ships from: ChinaShips from China to most countries
LA104 Portable Logic Analyser 100MHz 4ch 8MB Onboard... from £84.95

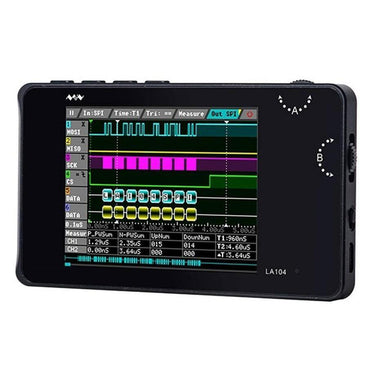

The LA104 is a pocket sized Logic Analyser that is great for mobile road warrior technicians and those with limited space. But small does not mean dumb, these little devices are able to handle a wide range of common tasks without the need for their bigger desktop counterparts.They are a great analyser for both beginners and professionals, with it's 8MB onboard storage, 500mAh battery and clear 2.8 inch screen with simple menu driven controls,you'll be probing away in no time.Able to collect and store multi-channel digital signals and visually display the timing relationships of these signals on the screen. It also has protocol analysis function, which can parse the logic signal of protocol physical layer into high-level protocol data and display it.Use our info link at the top of the description to get the latest software. Features: 2.8 inch TFT LCD screen makes reading data faster and easier. Small and portable, easy to use and carry. Can be widely used in automotive electronics, communications, power, computers and other industries and fields. Capabilities: InputChannels: 4Max Sample Rate: 100MhzMinimum capture pulse width: 10nsInput impedance: 1MΩ OutputChannels: 4Mode: SPI,I2C,PWM3V output Channel: 1 Specifications: Storage: 8MB Onboard flash disk memory Screen Size: 2.8 inch Screen Resolution: 320×240 Battery: 500mAh Dimension: 100*56*8.6mm Weight: 83g Certifications: CE, FCC
DS212 Portable Digital Storage Oscilloscope Nano Handheld Bandwidth 1MHz Sampling Rate 10MSa/s Thumb Wheel, from NSE Imports #1. DS212 Portable Digital Storage Oscilloscope Nano Handheld Bandwidth 1MHz Sampling Rate 10MSa/s Thumb Wheel, from NSE Imports #2.
Miniware
Ships from: ChinaShips from China to most countries
DS212 Portable Digital Storage Oscilloscope Nano Handheld Bandwidth... from £88.95 £113.95

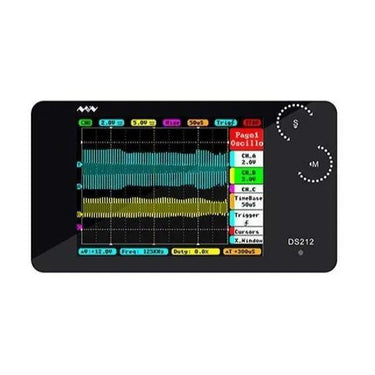

The Miniware DS212 Digital Storage Oscilloscope brings you a portable, handheld and feature rich oscilloscope to allow you to measure, trace and record your electrical issues on the move. Ideal for Diagnostic and Repair work, it is ideal for when you don't require or cannot carry a full size bench oscilloscope with you. With 8Mb of internal storage you can record your probing and measurements to review later. The built in 550mAh battery charges through a regular Micro USB connector allowing you to charge from pretty much any power source. For the geeks and modders out there this also has an Open Source Firmware, you can download the source code and modify it to add new functionality.Use our info link at the top of the description to get the latest software. Features: Easy to use thumb-wheel design Pocket-sized digital storage oscilloscope meets basic electronic engineering requirements. Dual trace three lines, new kind of system interface, capacitive convenient operation. You can easily operate it with the gestures of one-click, double-click, press and slide. The aluminum shell is very fashionable equipped with 320*240 color display. Memory card (USB flash disk), and rechargeable Lithium batteries. The thickness is about 11 mm/ 0.43 inch only! The volume is small enough to take it anywhere. It can meet the demands in many fields, such as, school experiments, electronic repairing, and electric engineering. Specifications: Model: DS212 MCU: STM32F303VC ADC: MCU internal ADC Channels: 2 analog channels, 1 operation channel Synchronous mode: Auto, Normal, Single, None, Scan Trigger Mode: ascend/descend edge trigger mode Modes of vertical precise, horizontal precise measurement and triggering threshold Auto Measurement: frequency, cycle time, duty cycle, DC RMS voltage/Vpp /Vmax/Vmin/Vavg Inbuilt signal generator/10Hz—1MHz square wave (duty adjustable) or 10Hz—20KHz Sine/Square/Triangle/Sawtooth wave Max sample rate:10Msa/s Analog bandwidth:1MHz Max sample memory depth:8K Analog input impedance:1MΩ Max input voltage:±40V(X1) Coupling:AC/DC Vertical sensitivity:20mv/Div~10V/Div (1-2-5) Horizontal sensitivity:1uS/Div~2S/Div(1-2-5) Inbuilt 8MB U disk storage for waveform data and images Internal 550mAh Lithium battery, Recharging through Micro USB port 2.8inch Full Color TFT LCD Display(320X240 pixels) Dimension (100mm X 56.5mm X 10.7mm) Weight (with battery): 90 g
