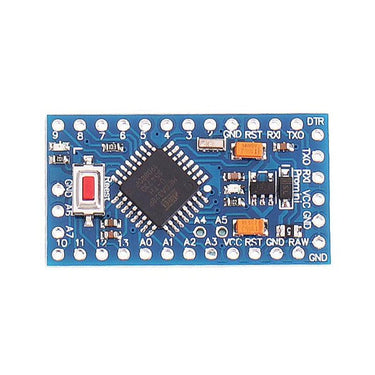

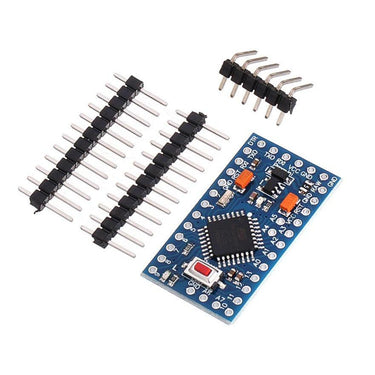

The Geekcreit ATmega328P-AU Pro Mini is a microcontroller board based on the ATmega328, ideal for use with any small electronics project work that requires a compact microcontroller. The board is supplied with headers for easy connection and debugging, alternatively, solder directly to the board when space is a premium. With 14 digital input / output pins (of which 6 can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. The six pin header can be connected to an FTDI cable to provide USB power and communication to the board. Features: Atmega328P-AU MCU TTL level serial port transceiver RX / TX Six PWM ports D3, D5, D6, D9, D10, D11 Supporting serial download Supporting external DC 2.4V ~ 12V power Supporting 12V (or below) battery power Specification: Microcontroller: ATmega328 Operating Voltage: 3.3V Input Voltage: 3.35V ~ 12V Digital I/O Pins: 14 (of which 6 provide PWM output) Analog Input Pins: 8 DC Current Per I/O Pin: 40mA Flash Memory: 32KB (of which 2KB used by bootloader) SRAM: 1KB EEPROM: 512 bytes Clock Speed: 8MHz Size: 33.3 x 17.6mm Package includes: 1 x 3.3V 8MHz Pro Mini (With headers)
Give your Arduino projects a boost with this range of Sensors, Inputs and Outputs. Buzzers, Buttons and Blinking LED's and more. There is a small .zip file with a .pdf and some code examples to help you get started with this kit. We will contact you with download details after purchasing. Kits list: 1 x Active buzzer module 1 x Passive buzzer module 1 x Common cathode RED&GREEN LED module 1 x Two color common cathode LED module 1 x Knock sensor module 1 x Shock switch sensor module 1 x Photo resistor sensor module 1 x Push button module 1 x Tilt switch module 1 x RGB LED module 1 x Infrared transmit module 1 x RGB colorful LED module 1 x Hydrargyrum switch sensor module 1 x Colorful auto flash module 1 x Magnet-ring sensor module 1 x Hall sensor module 1 x Infrared receive sensor module 1 x Analogy hall sensor module 1 x Magic ring module 1 x Rotate encode module 1 x Light break sensor module 1 x Finger pulse sensor module 1 x Magnetic spring module 1 x Obstacle avoidance sensor module 1 x Tracking sensor module 1 x Microphone sensor module 1 x Laser transmit module 1 x Relay module 1 x Analog temperature sensor module 1 x 18b20 temperature sensor module 1 x Digital temperature sensor module 1 x Linear hall Sensor module 1 x Flame sensor module 1 x High sensitive voice sensor module 1 x Humidity sensor module 1 x Joystick PS2 module 1 x Touch sensor module Package included: 1 x Sensor module board set for (37 types in total) Plastic bag package only.
Description: The Geekcreit UNO R3 is a fully Arduino-compatible board powered by an Atmega328p and CH340G serial interface. While a clone to the Arduino UNO R3, it functions exactly the same and is fully compatible with the Arduino Software (IDE). Clone UNO's can be manufactured under the creative commons files provided on the Arduino website.This is a bare board kit, if you have a spare USB A-to-B cable and some headers or a shield you are good to go, save money and the environment by not adding another cable to that pile you already have. Features: All the cool details Fully compatible Arduino UNO R3 clone board High build quality Great for Education, Hobbists and Projects Quick start guide: Do not connect the UNO board until you have followed these steps. Download the latest Arduino IDE Download the CH341 USB x86/x64 driver Plug in UNO development board, the driver will be installed automatically Start the IDE and select the UNO R3 as your target Select the COM port, you may need to check device manager if unsure of this. Load or create your code and upload to the board. Enjoy 😃 Specifications: The technical stuff Microcontroller: ATmega328 Operating Voltage: 5v Input Voltage (recommended): 7-12v Input Voltage (limits): 6-20v Digital IO Pins: 4 Analogue Input Pins: 6 DC Current per IO Pin: 40mA DC Current for 3.3V Pin: 50mA Flash Memory: 32 KB (ATmega328) 0.5KB used by bootloader SRAM: 2 KB EEPROM: 1 KB Clock Speed: 16 MHz USB Chip: CH340G Package includes: 1x Geekcreit UNO R3 Board
