XGEcu

These updated BGA24 to DIP8 Zif Adapters save you buying multiple adapters to handle your various IC's, providing a convenient way to enhance your IC Programmer. Compatible with 6x8mm packages using 4x6mm or 5x5mm arrays, the adapter enables users to quickly insert the chip and then use a as regular DIP8 package with the programmer, eliminating the need to solder the chip to a pad board. They are suitable for use with many programmers, such as EZP2023, T48, RT809F, TL866II, T56 and more. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Specifications: Style: Adapter Model: BGA24 to DIP8 Multi Adapter Applicable IC Dimensions: 6x8mm (with either 6x4mm or 5x5mm layouts) Applicable IC Package: BGA24 Supports BGA24 SPI FLASH: W25Q16 W25Q32 W25Q64 W25Q128 W25Q256 and more Programmer connector: DIP8 with 1.0mm pitch Important: Do not clean the BGA24 Adapter with halogenated solvents (methylene chloride, trichloroethylene, perchloroethylene, trichlorotrifluoroethane, and 1,1,1-trichloroethane), these will melt the socket Suitable Programmers: XGecu T48, TL866II and T56 series RT809F EZP2019+, EXP2023 Also suitable for Superpro, TNM, TOP, GQ-4X, Stager, SOFI and more. Package Includes: 1x BGA24 to DIP8 Multi Adapter

Add extra functionality to your XGecu T48 programmer with this ISP Module. The XGecu EMMC-ISP VER: 1.00 Special Adapter allows for in-circuit programming of EMMC chips with your T48 (TL866-3G) programmer. With its secure encryption chip and anti-interference circuit on the PCB board this is designed to get the job done. Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56. Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: Provides ISP Functionality to suit most EMMC chips Provides Pins for VCC, VCCQ(VCQ), GND x2, CLK, CMD, D0 to D3 Supplied with breakout cable Item includes: 1x EMMC_ISP Board, 1x 10 pin Breakout cable

Enhance your T48, TL866II or T56 programmer with this handy QFN8 Zif Adapter. Suitable for both 6*5mm and 8*6mm packages, simply pop the chip in the adapter, then insert into your programmer like a regular DIP8 package. Save time and effort by not having to solder to a regular pad board. These are suitable for use with many programmers, if your programmer supports the chip you wish to program this adapter should work. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Specifications: Brand Name: XGECU Style: Adapter Model: QFN8 two-in-one Applicable IC Packages: QFN8, WSON8, MLF8, MLP8, DFN8 Package size: 6*5mm and 8*6mm Package Pitch: 1.27mm Programmer connector: DIP8 Suitable Programmers: XGecu T48, TL866II and T56 series RT809F EZP2019+ Also suitable for Superpro, TNM, TOP, GQ-4X, Stager, SOFI and more. Package Includes: 1x QFN8 TO DIP8 two-in-one adapter

These VGA/HDMI adapters for the XGECU T56 programmer provide a powerful and convenient way to test or program TV's and Monitors. Simply connect to your T56 programmer, hook up to your display over HDMI or VGA, and the XGECU software will allow you to perform a variety of tasks including producing test patterns. The VGA port can also be used to test and program through USB 2.0/3.0, 3.5mm and 2.5mm ports using a self built adapter cable, the wiring for this is show in our images. Looking for more T56 accessories and adapters? Browse our T56 range. Looking for more T56 accessories and adapters? Browse our T56 range. Features and Usage Notes: For the XGECU T56 ONLY these will not work with other programmers For HDMI connections only use preassembled cables, the high frequencies of HDMI signalling (900mb/s or more) will not behave correctly over DIY cables Supports In-system programming (ISP), in-circuit serial programming (ICSP) and Serial console capture providing your TV or Monitor has this features

The XGECU SD and EMMC 8*6mm  flash adapter module for the XGecu T48 programmer adds the ability to read and program SD Cards and EMMC chips with the T48 (aka TL866-3G) programmer. Able to accept full size SD, Micro SD, Transflash and EMMC, it's ideal for recovery and/or programming operations. Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56. Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: For use with SD, MultiMediaCard / MMC, Mini SD (using a Mini to full size adapter), Micro SD, Transflash / TF and 8*6mm EMMC modules For T48 Programmer only Item includes: 1x EMMC SD Adapter

The XGECU ADP-BGA63-E001 v2 BGA63 flash adapter module for the XGecu T48 programmer adds the ability to read and program BGA48 and BGA63 packages with the T48 (aka TL866-3G) programmer. Featuring precision pins, the durable clamshell ZIF socket is ideal for recovery and/or programming operations on packages with or without solder balls. The updated design now support even more BGA by bringing BGA48 chip support in addition to  BGA63 packages, you'll be able to handle most of the common chips in your inventory. Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56. Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: Supports BGA48 package chips.Applicable IC Size: 6*8MM, 6.15*8.15MM, 6.5*8MMPitch: 0.8MM Supports BGA63 package chips.Applicable IC Size: 9*11MM, 10.5*13MMPitch: 0.8MM Supports NOR, NAND and eMMC BGA packages For T48 Programmer only ZIF socket rated for 50,000 actuations Item includes: 1x ADP-BGA63-E001 v2, 4* BGA Frames, Expansion cable

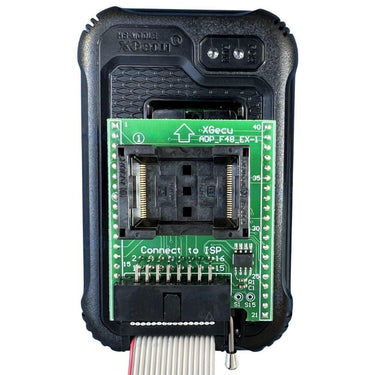

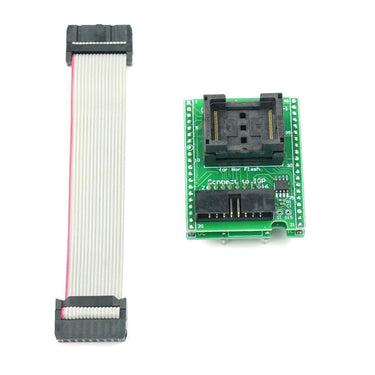

This TSOP40/TSOP48 NOR flash adapter module for the XGecu T48 programmer adds enhanced functionality. The ADP_F48_EX-1 Adapter permits precise reading and programming of TSOP packages with the T48 (aka TL866-3G) programmer. Featuring precision pins, the durable ZIF socket is ideal for recovery and/or programming operations. This adapter replaces the older SN001 series of boards which do not work on the T48 as XGECU has removed support for them, ideal if you are trying to program AM29LV800BB or similar chips. Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56. Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: For use with TSOP48 TSOP40 IC packages For T48 Programmer only Ideal for AM29LV800BB, M29W320DB and similar IC's Replaces TL866II SN001 and TSOP socket adapters ZIF socket rated for 10,000 actuations Item includes: 1x ADP_F48_EX-1, 1x ISP cable

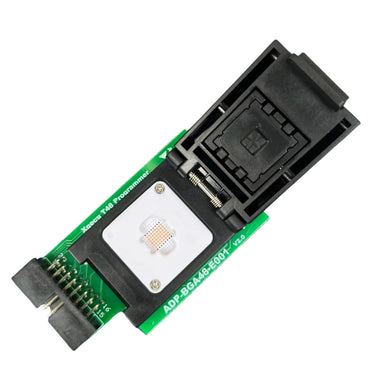

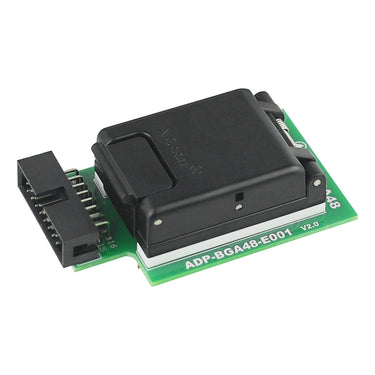

Add extra functionality to your XGecu T48 programmer with this BGA NAND and NOR Module. The ADP_BGA48_E001 Adapter allows for reading and programming a wider range of more exotic chips in 0.8mm BGA packages with your T48 (TL866-3G) programmer. The heavy duty ZIP socket features precision pins that can work on any BGA48 module with or without solder balls, this makes it great for recovery work as well as programming fresh stock. Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56. Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: For use with NOR and NAND flash devices 0.8 mm BGA48 packages Supports BGA48 chip sizes: 6*8 mm, 6.15*8.15 mm, 6.5*8 mm Row spacing 600mil Item includes: 1x ADP_BGA48_E001, 1x ISP cable, 1x 6*8 Plate, 1x 6.15*8.15 Plate, 1x 6.5*8 Plate

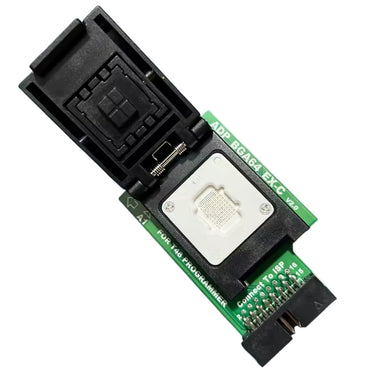

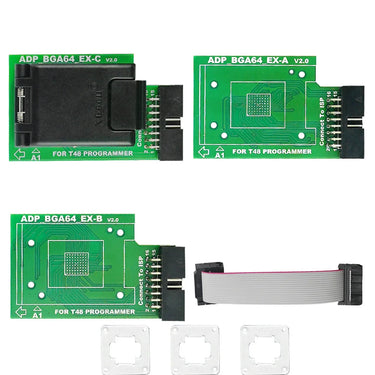

This BGA NAND and NOR Module for the XGecu T48 programmer adds enhanced functionality. The ADP_BGA64_EX-A Adapter permits precise reading and programming of 0.8mm BGA packages with the T48 (aka TL866-3G) programmer. Featuring precision pins, the durable ZIP socket is ideal for recovery and/or programming operations with or without solder balls. Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56. <Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: For use with NOR/NAND/eMMC flash devices BGA64 packages Supports BGA64 chip sizes: 11*13mm, 12*18mm, 10*13mm Supplied with 3 PCB to support different BGA64 Series ADP_BGA64_EX-A: For 29xxx series ADP_BGA64_EX-B: For 28F320/640/128/256 series ADP_BGA64_EX-C: For 28F128/256/512/00A-P series Row spacing 600mil Item includes: 1x  ADP_BGA64-Header, 1x ISP cable, 1x 11*13 Plate, 1x 12*18 Plate, 1x 10*13 Plate, 3x ADP_BGA64-EX PCB's

Add extra functionality to your XGecu T48 programmer with this DIP42/PLCC44 Module. The XGecu ADP_D42_EX-A Adapter allows for reading and programming a wider range of more exotic chips in DIP42 or PLCC44 packages with your T48 (TL866-3G) programmer Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56. Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: Suitable for use with DIP42 PLCC44 package chips, such as: 27C800 27C160 27C322 27V800 27V160 27V322 MX27C8100 MX27C1610 Item includes: 1x ADP_D42_EX-A, 1x ISP cable

Supporting 31000+ types of ROM, EPROM, EEPROM, NAND, GAL, SRAM, EMMC, AVR, MCU, The TL48 (TL866-3G) takes over as XGecu's entry programmer from the venerable TL866 series. Closer in specification to their bigger sibling the T56, these feature rich programmers will help you ensure you can get the job done. With a high-quality 40-pin industrial ZIF Socket, improves all features of the older TL866II Plus programmers. Using a 120Mhz 32-bit MCU and 4-layer PCB design, this professional T48 programmer supports high-capacity NAND EMMC up to 256GB, with faster programming speeds than the TL866II. With high-voltage chips support upto a VPP Maximum of 25V, you can program a wider variert of chips, a lot of older or vintage EPROMS require these far higher voltages. Please visit our T48 Downloads Page for the latest software, manuals and chip support list. Need additional adapters? Browse our T48 range to find suitable adapters. After purchase we will send links to download the software and manuals. Need additional adapters? Browse our T48 range to find suitable adapters. Please get in touch if you need a chip support list. Features: Everything you loved about the TL866II series and more... 120Mhz 32-bit MCU with 4-layer PCB Design, USB2.0 480Mhz Connection 16 channel ISP 56-channel dedicated IO with high-speed high-voltage isolation Replaceable high quality 40pin ZIF socket, extends the life of heavily used programmers VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable. Power consumption: 5V <500MA. Static power consumption: 60mA. Without external power supply interface. Self-test function, self-test each pin of VPP/VCC/GND/IO Program, Read, Write, Test and more. Supports over 31000+ types of ROM, EPROM, EEPROM, NAND, GAL, SRAM, EMMC, AVR, MCU etc.... Kits contain different adapters to cover a wide range of chip styles. See the images for which adapters are included with each kit version. Can attach upto 4 programmers to on PC for small batch runs. Support WIN2000, WINXP, WIN2003, WIN2008, WIN VISTA, WIN7, WIN8, WIN10(32&64 bit) Additional Information: Click to view Additional Information × Specifications: 120Mhz 32-bit MCU with 4-layer PCB Design, USB2.0 480Mhz Connection Volume: 10cm x 6cm x 2.8cm 40-pin drive IO design. Non-full drive, IO voltage is not adjustable. VCC voltage 1.8-6.5V 32 levels adjustable,VPP voltage 9V-18V 32 levels adjustable.VCC 120MA over current protection, VPP 100MA over current protection. VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable. Power consumption: 5V <500MA. Static power consumption: 60mA. Without external power supply interface. Self-test function, self-test each pin of VPP/VCC/GND/IO Suitable for developers and maintenance personnel, can do small batch production for small capacity chips, support simultaneously working with 4 Programmers on each computer 30000+ supported devices from hundreds of manufacturers by 7.05 version of SW (Mar. 1th, 2018). NAND FLASH: Samsung K9xxx, SK Hynix (ex Hynix) HY27xxx, H27xxx, Micron MT29Fxxx, NANDxxx, Spansion S34xxx, NAND Toshiba TH58NVGxxx. Serial NAND FLASH: Micron MT29Fxxx. Serial Flash: standard SPI, high performance Dual I/O SPI and Quad I/O SPI (25Bxxx, 25Dxxx, 25Fxxx, 25Lxxx, 25Pxxx, 25Qxxx, 25Sxxx, 25Txxx, 25Uxxx, 25Vxxx, 25Wxxx, 25Xxxx, 26Vxxx, 45PExx, MX26Lxxx ).DataFlash (AT45Dxxx, AT26Dxxx) Parallel NOR Flash: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, Samsung'sK8Pxxxx, K8Dxxxx series, ... EPROM: NMOS/CMOS, 27xxx and 27Cxxx series EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series, Serial E(E)PROM: 24XXX,25XXX series, Microcontrollers MCS51 series:89Cxxx, 89Sxxx, 89EXXX,89VXX Microcontrollers Atmel AVR 8bit/16bit: AT90Sxxxx, ATtiny, ATmega series Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, PIC24xxx series GAL Programmable logic device programming and SRAM test I.C. Tester: TTL type: 54,74 S/LS/ALS/H/HC/HCT series; CMOS type: 4000, 4500 series; Static RAM: 6116 ..

Add extra functionality to your XGecu T48 programmer with this SOP44 Module. The ADP_S44_EX-1 Adapter allows for reading and programming a wider range of more exotic chips in 1.27mm SOP44 packages with your T48 (TL866-3G) programmer. The heavy duty ZIP socket features precision contacts and is rated for over 10,000 actuations. Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56. Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: For use with 1.27mm PSOP44/SOP44/SOIC44 Ideal for programming AM29F200BB and similar IC's Supports PSOP/SOP/SOIC devices up to 44 pins (for example EPROMs) High quality SOP44 ZIF socket Row spacing 600mil Item includes: 1x ADP_S44_EX-1, 1x ISP cable.

Add extra functionality to your XGecu T48 programmer with this TSOP48 NAND Module. The ADP_F48_EX-2 Adapter allows for reading and programming a wider range of more exotic chips in TSOP48 packages with your T48 (TL866-3G) programmer. The heavy duty ZIP socket features precision contacts and is rated for over 10,000 actuations. Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56. Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: For use with TSOP48 packages Support NAND capacity up to 256G, speed up to 6MB/S High quality ZIF socket rated for over 10000 insertions Item includes: 1x ADP_F48_EX-2

This handy adapter for the XGECU T56 range of programmers let you handle SOP56 IC's such as the AM29BL802CB or AM29BL162CB (or similar), the adapter board connects to your T56 programmer through the socket and cable harness expansion connector on the T56. Read, Write,Program, Test and Verify your chips SOP56 IC's through XGECU's extensive chip support. We also carry a ZIF Socket version of this adapter, ideal for when your handling SOP56 IC's in batches, use our links below to find this model. Looking for more T56 accessories and adapters? Browse our T56 range. Looking for more T56 accessories and adapters? Browse our T56 range. Features and Usage Notes: For the XGECU T56 ONLY these will not work with other programmers ADP-SSO-056-0.8 ZIF SOP56 to DIP adapter Supports SOP56 AM29BL802CB or AM29BL162CB, check the T56 chip support list to ensure your IC is supported.

The XGecu T56 builds upon the successful TL866 series offering a host of upgrades. Now supporting longer chips up to 56 pins, with faster programming and read speeds, thanks to its updated PIC32MZ 32-bit MCU 200MHZ and Xilinx SP6 FPGA. With a far greater range of supported chip types it really is a powerhouse of a programmer. These are a great investment as new chip types are added through updates to the software package the supported chip types are always expanding, 21000+ types and growing. The 5, 17 and 22 Adapter kit contents are listed below. Please visit our T56 Downloads Page for the latest software, manuals and chip support list. Need additional adapters? Browse our T56 range to find suitable adapters. After purchase we will send links to download the software and manuals. Need additional adapters? Browse our T56 range to find suitable adapters. Please get in touch if you need a chip support list. Features: Program, Read, Write, Test and more. Supports over 21000+ types of ROM, EPROM, EEPROM, NAND, NOR, GAL, SRAM, EMMC, AVR, MCU, not sure if your chip is supported? Please get in touch Kits contain different adapters to cover a wide range of chip styles. See the images for which adapters are included with each kit version. Chip support: TSOP48 / TSOP56 / BGA48 / BGA63 / BGA64 / BGA100 / BGA153 / BGA162 / BGA169 / BGA221 Supports WINXP WIN2003 WIN2008 VISTA WIN7 WIN8 WIN10 32-bit or 64-bit operating systems. Carefully built low-cost professional programmer, high-density chip production process, a unified user interface, easy to use, functional integrity, application software, reliable operation, code small, faster execution. The programming speed is greatly improved. It is suitable for small batch production and supports 4 programmers for one computer. Wide range of chip support, currently supports around 21000+ types. Supports a variety of 24 25 26 27 28 29 37 39 49 50 series of serial and parallel memory chips, microcontroller 51 series, ATMEL AVR ATMEGA AT90 series, MICROCHIP PIC10 PIC12 PIC16 PIC18 series microcontroller , GAL programmable logic device programming, SRAM test, 54/74 and CMOS4000 integrated circuit integrated functional test. Support NAND Flash chip, the function is complete and comprehensive, the capacity supports to 8Gbits. 25 series NOR Flash capacity support to 512Mbits. NAND EMMC supports a maximum capacity of up to 256G or more Support VGA and HDMI online programming Support digital logic integrated circuit testing, identification, customization Pin contact check function, pinpoint corroded or faulty pins on your chip. Ultra-low power consumption: the entire programmer uses ultra-low-power chips, no external PSU required. Portable performance super: the world's smallest volume, size 10CM * 6CM * 2.5CM, only the size of the driver's license. Programmable VCC from 1.8V to 6.5V, VPP from 1.8V to 18V. Programmer built a variety of commonly used automatic numbering function. And can use a custom algorithm to achieve any sequence number through DLL dynamic library. This feature allows you to produce a unique identification information for each chip in mass production. The logo can also be encrypted with a custom algorithm to more effectively protect your product's rights. Specifications: Powered by PIC32MZ 32-bit MCU 200MHZ + Xilinx SP6 FPGA structure. Universal serial programming interface ICSP (to support both high-voltage parallel programming and low-volt age serial programming). Note: ICSP now supports 24-Series 25 Series 93 Series Serial Integrated Circuits, ATMEL89S51,52, AVR ATMEGAxxx Full Series, and MICROCHIP PIC10Fxxx 12Fxxx 16Fxxx 18Fxxx Full Series, and the new series of SYNCMOS SM59Dxx SM59Rxx fu ll range chips for in-circuit serial programming. Powerful 54 / 74F / LS / HC CMOS4000 Series Integrated Functionality Tests: The First Development Programmer to Test Common Logic ICs True, Test Errors Locating Logic Gate Circuits, Test Arbitrary Possible input combinations. Variety of 26 27 28 29 37 39 49 50 series of parallel ROM, EPROM, EEPROM Fast, full support. Support TSOP32 TSOP40 TSOP48 chips to 64MBits, will join the TSOP56 pin support. (TL866II programming voltage VPP only supports up to 18V, for early 27C series ROM, the chip with 21V 25V VPP voltage no longer supports writing, but can be read. If it is used, the VPP with the same type of programming voltage can be used as 13V or 12V chip replacement, for example: 27C32 21V or 13V Vpp chip,Pay attention to the VPP voltage) 24 25 35 45 85 93 95 Series Serial EEPROM Serial Series Chip Support Full, Supports Chip Capacity 25 Series 8 or 16PIN to 512MBits (64M Bytes) NAND FLASH chip supports up to 8Gbits MCU series, hundreds of models of 51 series of microcomputer AVR microcontroller package scratch ATMEGA series ATtiny series AT90XXX series of microcontrollers, all AVR ATMEGAxxx chip also supports the ICSP interface for SPI serial download programming. Support AVR one-to-one soft-key with RC correction byte. MICROCHIP PIC10 PIC12 PIC16 PIC18 Series Microcontroller: PIC series of more than 300 models, more than 900 package chip support, currently supports one of the most complete PIC chip integrated programmer. For various types of PIC monolithic, in strict accordance with the manufacturer's manual requirements, the optimal programming, programming speed is excellent. The vast majority of chips support both ISCP online programming and programming through programming sockets. GAL programmable logic device programming. SRAM test: Support for common 24 61 62 DS12 series SRAM test, respectively, to data line testing, address line testing, memory unit incremental testing and unit testing. Super performance 54 / 74F / LS / HC CMOS 4000 series integrated circuit. Function test: The first development-type programmer to really test common logic ICs to test for errors that can be located to logic gates, and to test any possible combinations of inputs in an integrated circuit when testing. Chip support: TSOP48 / TSOP56 / BGA48 / BGA63 / BGA64 / BGA100 / BGA153 / BGA162 / BGA169 / BGA221 Adapter kit contents 22 Adapter Kit: 1x 8pin 200-209mil SOP8 Adapter 1x 8pin 150mil SOP8 Adapter 1x 16pin 150mil SOP8 Adapter 1x 20pin 127mil SOP20/SO20/SOIC20 Adapter 1x 28pin 127mil SOP28/SO28/SOIC28 Adapter 1x PLCC28 to DIP28 Adapter 1x PLCC32 to DIP32 Adapter 1x PLCC44 to DIP40 Adapter 1x SOP16/8 to DIP8 Solder board with pin header & Clip Lead 1x SOP16/8 to DIP8 Solder board without pin header 1x SOP16/8 and MSOP8/SSOP8 Solder board 1x SOP8 to DIP8 Solder board 1x 16pin 1.8v Adapter 1x BGA63 Adapter 1x TSOP56 Adapter 1x BGA48 Adapter 1x SOP56 Solder board 1x EMMC153/160 1x SOP28 127mil Solder board 1x TSSOP28 Adapter Cables, EMMC Frames, Pin Headers as shown 17 Adapter Kit: 1x 8pin 200-209mil SOP8 Adapter 1x 8pin 150mil SOP8 Adapter 1x 16pin 150mil SOP8 Adapter 1x 20pin 127mil SOP20/SO20/SOIC20 Adapter 1x 28pin 127mil SOP28/SO28/SOIC28 Adapter 1x PLCC28 to DIP28 Adapter 1x PLCC32 to DIP32 Adapter 1x PLCC44 to DIP40 Adapter 1x SOP16/8 to DIP8 Solder board with pin header & Clip Lead 1x SOP16/8 to DIP8 Solder board without pin header 1x SOP16/8 and MSOP8/SSOP8 Solder board 1x SOP8 to DIP8 Solder board 1x 16pin 1.8v Adapter 1x SOP28 127mil Solder board 1x TSSOP28 Adapter Cables, Pin Headers as shown 5 Adapter Kit: 1x BGA63 Adapter 1x TSOP56 Adapter 1x BGA48 Adapter 1x SOP56 Solder board 1x EMMC153/160 Cables, EMMC Frames as shown

This TSOP56 3-IN-1 adapter module for the XGecu T48 programmer adds enhanced functionality. The three adapter plates enable reading and programming of various TSOP56 packages with the T48 (aka TL866-3G) programmer. Featuring precision pins, the durable ZIF socket is ideal for recovery and/or programming operations. This adapter replaces the older SN001 series of boards which do not work on the T48 as XGECU has removed support for them. Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56. Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: For use with TSOP56 0.5mm NOR, NAND, EMMC, EPROM IC packages For T48 Programmer only Ideal for 29XXXTSOP56, 28F32/64/128/256, 28F128/256/512/00A-P, S29GL128NxxTAx02 and similar IC's Replaces TL866II SN001 and TSOP socket adapters ZIF socket rated for 10,000 actuations Plate ADP_F56_EX-A supports: 29xxx series chips Plate ADP_F56_EX-B supports: 28F32/64/128/256 series chips Plate ADP_F56_EX-C supports: 28F128/256/512/00A-P series chips Item includes: 1x TSOP56 Header PLate, 1x ISP cable, 1x ADP_F56_EX-A, 1x ADP_F56_EX-B, 1x ADP_F56_EX-C

These updated TSOP56 adapter modules for the XGecu T48 programmer offer enhanced functionality. The updated v2.0 design does away with the baseplate and socket design of the original, instead you can buy just the adapter you need, or purchase all three. The adapters enable reading and programming of various TSOP56 packages with the T48 (aka TL866-3G) programmer. Featuring precision pins, the durable ZIF socket is ideal for recovery and/or programming operations. This adapter replaces the older SN001 series of boards which do not work on the T48 as XGECU has removed support for them. Please note: These adapters only can work on the XGecu T48 programmer, there are not for other programmers such as the TL866CS, TL866A, TL866II or T56. Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch. Features: For use with TSOP56 0.5mm NOR, NAND, EMMC, EPROM IC packages For T48 Programmer only Ideal for 29XXXTSOP56, 28F32/64/128/256, 28F128/256/512/00A-P, S29GL128NxxTAx02 and similar IC's Replaces TL866II SN001 and TSOP socket adapters ZIF socket rated for 10,000 actuations Plate ADP_F56_EX-A supports: 29xxx series chips Plate ADP_F56_EX-B supports: 28F32/64/128/256 series chips Plate ADP_F56_EX-C supports: 28F128/256/512/00A-P series chips Item includes: 1x TSOP56 Header PLate, 1x ISP cable, 1x ADP_F56_EX-A, 1x ADP_F56_EX-B, 1x ADP_F56_EX-C
