Ships from: China
XGecu T56 Programmer 56 Pin Drivers ISP Support 21000+ Chips with 22 adapters
£907.95
The XGecu T56 builds upon the successful TL866 series offering a host of upgrades. Now supporting longer chips up to 56 pins, with faster programming and read speeds, thanks to its updated PIC32MZ 32-bit MCU 200MHZ and Xilinx SP6 FPGA. With a far greater range of supported chip types it really is a powerhouse of a programmer. These are a great investment as new chip types are added through updates to the software package the supported chip types are always expanding, 21000+ types and growing.
The 5, 17 and 22 Adapter kit contents are listed below.
Please visit our T56 Downloads Page for the latest software, manuals and chip support list. Need additional adapters? Browse our T56 range to find suitable adapters.
After purchase we will send links to download the software and manuals. Need additional adapters? Browse our T56 range to find suitable adapters. Please get in touch if you need a chip support list.
Features:
Program, Read, Write, Test and more.
Supports over 21000+ types of ROM, EPROM, EEPROM, NAND, NOR, GAL, SRAM, EMMC, AVR, MCU, not sure if your chip is supported? Please get in touch
Kits contain different adapters to cover a wide range of chip styles. See the images for which adapters are included with each kit version.
Chip support: TSOP48 / TSOP56 / BGA48 / BGA63 / BGA64 / BGA100 / BGA153 / BGA162 / BGA169 / BGA221
Supports WINXP WIN2003 WIN2008 VISTA WIN7 WIN8 WIN10 32-bit or 64-bit operating systems.
Carefully built low-cost professional programmer, high-density chip production process, a unified user interface, easy to use, functional integrity, application software, reliable operation, code small, faster execution.
The programming speed is greatly improved. It is suitable for small batch production and supports 4 programmers for one computer.
Wide range of chip support, currently supports around 21000+ types.
Supports a variety of 24 25 26 27 28 29 37 39 49 50 series of serial and parallel memory chips, microcontroller 51 series, ATMEL AVR ATMEGA AT90 series, MICROCHIP PIC10 PIC12 PIC16 PIC18 series microcontroller , GAL programmable logic device programming, SRAM test, 54/74 and CMOS4000 integrated circuit integrated functional test.
Support NAND Flash chip, the function is complete and comprehensive, the capacity supports to 8Gbits.
25 series NOR Flash capacity support to 512Mbits.
NAND EMMC supports a maximum capacity of up to 256G or more
Support VGA and HDMI online programming
Support digital logic integrated circuit testing, identification, customization
Pin contact check function, pinpoint corroded or faulty pins on your chip.
Ultra-low power consumption: the entire programmer uses ultra-low-power chips, no external PSU required.
Portable performance super: the world's smallest volume, size 10CM * 6CM * 2.5CM, only the size of the driver's license.
Programmable VCC from 1.8V to 6.5V, VPP from 1.8V to 18V.
Programmer built a variety of commonly used automatic numbering function. And can use a custom algorithm to achieve any sequence number through DLL dynamic library. This feature allows you to produce a unique identification information for each chip in mass production.
The logo can also be encrypted with a custom algorithm to more effectively protect your product's rights.
Specifications:
Powered by PIC32MZ 32-bit MCU 200MHZ + Xilinx SP6 FPGA structure.
Universal serial programming interface ICSP (to support both high-voltage parallel programming and low-volt age serial programming). Note: ICSP now supports 24-Series 25 Series 93 Series Serial Integrated Circuits, ATMEL89S51,52, AVR ATMEGAxxx Full Series, and MICROCHIP PIC10Fxxx 12Fxxx 16Fxxx 18Fxxx Full Series, and the new series of SYNCMOS SM59Dxx SM59Rxx fu ll range chips for in-circuit serial programming.
Powerful 54 / 74F / LS / HC CMOS4000 Series Integrated Functionality Tests: The First Development Programmer to Test Common Logic ICs True, Test Errors Locating Logic Gate Circuits, Test Arbitrary Possible input combinations.
Variety of 26 27 28 29 37 39 49 50 series of parallel ROM, EPROM, EEPROM Fast, full support.

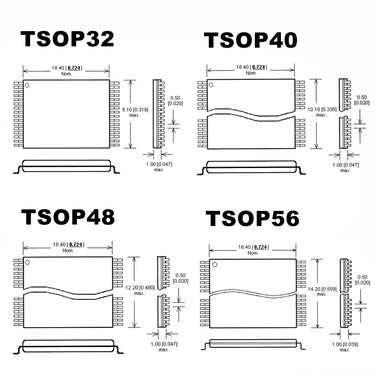

Support TSOP32 TSOP40 TSOP48 chips to 64MBits, will join the TSOP56 pin support.
(TL866II programming voltage VPP only supports up to 18V, for early 27C series ROM, the chip with 21V 25V VPP voltage no longer supports writing, but can be read. If it is used, the VPP with the same type of programming voltage can be used as 13V or 12V chip replacement, for example: 27C32 21V or 13V Vpp chip,Pay attention to the VPP voltage)
24 25 35 45 85 93 95 Series Serial EEPROM Serial Series Chip Support Full, Supports Chip Capacity 25 Series 8 or 16PIN to 512MBits (64M Bytes)
NAND FLASH chip supports up to 8Gbits
MCU series, hundreds of models of 51 series of microcomputer
AVR microcontroller package scratch ATMEGA series ATtiny series AT90XXX series of microcontrollers, all AVR ATMEGAxxx chip also supports the ICSP interface for SPI serial download programming. Support AVR one-to-one soft-key with RC correction byte.
MICROCHIP PIC10 PIC12 PIC16 PIC18 Series Microcontroller: PIC series of more than 300 models, more than 900 package chip support, currently supports one of the most complete PIC chip integrated programmer. For various types of PIC monolithic, in strict accordance with the manufacturer's manual requirements, the optimal programming, programming speed is excellent. The vast majority of chips support both ISCP online programming and programming through programming sockets.
GAL programmable logic device programming.
SRAM test: Support for common 24 61 62 DS12 series SRAM test, respectively, to data line testing, address line testing, memory unit incremental testing and unit testing.
Super performance 54 / 74F / LS / HC CMOS 4000 series integrated circuit.
Function test: The first development-type programmer to really test common logic ICs to test for errors that can be located to logic gates, and to test any possible combinations of inputs in an integrated circuit when testing.
Chip support: TSOP48 / TSOP56 / BGA48 / BGA63 / BGA64 / BGA100 / BGA153 / BGA162 / BGA169 / BGA221
Adapter kit contents

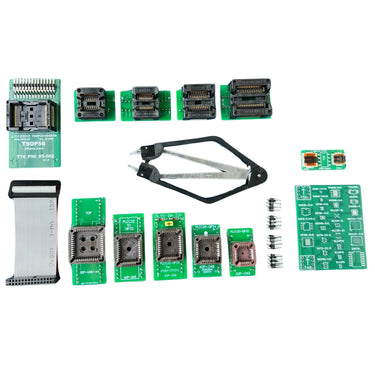

22 Adapter Kit:
1x 8pin 200-209mil SOP8 Adapter
1x 8pin 150mil SOP8 Adapter
1x 16pin 150mil SOP8 Adapter
1x 20pin 127mil SOP20/SO20/SOIC20 Adapter
1x 28pin 127mil SOP28/SO28/SOIC28 Adapter
1x PLCC28 to DIP28 Adapter
1x PLCC32 to DIP32 Adapter
1x PLCC44 to DIP40 Adapter
1x SOP16/8 to DIP8 Solder board with pin header & Clip Lead
1x SOP16/8 to DIP8 Solder board without pin header
1x SOP16/8 and MSOP8/SSOP8 Solder board
1x SOP8 to DIP8 Solder board
1x 16pin 1.8v Adapter
1x BGA63 Adapter

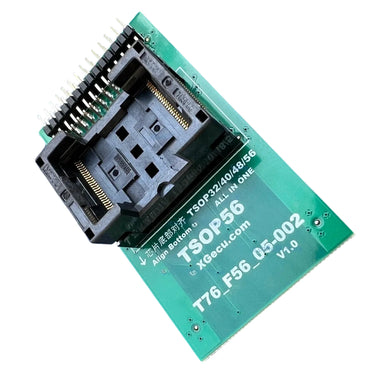

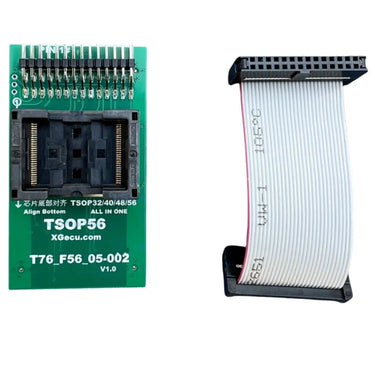

1x TSOP56 Adapter
1x BGA48 Adapter
1x SOP56 Solder board
1x EMMC153/160
1x SOP28 127mil Solder board
1x TSSOP28 Adapter
Cables, EMMC Frames, Pin Headers as shown
17 Adapter Kit:
1x 8pin 200-209mil SOP8 Adapter
1x 8pin 150mil SOP8 Adapter
1x 16pin 150mil SOP8 Adapter
1x 20pin 127mil SOP20/SO20/SOIC20 Adapter
1x 28pin 127mil SOP28/SO28/SOIC28 Adapter
1x PLCC28 to DIP28 Adapter
1x PLCC32 to DIP32 Adapter
1x PLCC44 to DIP40 Adapter
1x SOP16/8 to DIP8 Solder board with pin header & Clip Lead
1x SOP16/8 to DIP8 Solder board without pin header
1x SOP16/8 and MSOP8/SSOP8 Solder board
1x SOP8 to DIP8 Solder board
1x 16pin 1.8v Adapter
1x SOP28 127mil Solder board
1x TSSOP28 Adapter
Cables, Pin Headers as shown
5 Adapter Kit:
1x BGA63 Adapter
1x TSOP56 Adapter
1x BGA48 Adapter
1x SOP56 Solder board
1x EMMC153/160
Cables, EMMC Frames as shown
Ships from: China
SOFI SP8 High Speed USB programmer + 4 Adapters Supports 5400+ 93/24/25/BR90/EEPROM
£189.95
£190.95
The Sofi SP8 provides a compact and feature rich programmer, with a high quality 3M ZIF Socket, ISP port and supplied with a range of adapters you are ready to tackle most common chip styles.
Please visit our SOFI SP8 Downloads Page for the latest software, manuals and chip support list. Need additional adapters? Browse our SOFI SP8 range to find suitable adapters.
After purchase we will send links to download the software and manuals. Need additional adapters? Browse our DIP8 range to find suitable adapters. Please get in touch if you cannot find the adapter you need.
Features:
Program, Read, Write, Test and more.
Supports over 5400 types of ROM, EPROM, EEPROM, NAND, GAL, SRAM, EMMC, AVR, MCU etc....
ISP Port for In Circuit Programming
Built-in 128Mbit data storage for computer free programming
Intelligent Pin sensing show if there are connection issues or incorrectly seated IC's
Kits contain different adapters to cover a wide range of chip styles. See our specifications section for a full list
High Speed true USB connection (not simulated serial port)
Over-current and ESD protections, additional protection against damage of programmers or USB ports
Can attach multiple programmers to one PC for small batch runs.
Serial 24/25/93/BR90/BR93 series programming. High-performance BIOS programmer
Supports low-voltage 3.3V and 5V chips
Support WinXP/Vista/Win7/Win10 32&64 bit English & Chinese Language
Specifications:
Brand: Sofi
Model: SP8
Processor: 32-Bit High Speed Processor
Memory: 128Mbit (16 Megabyte) onboard Storage
Kit Includes:
1 * SOFI SP8 programmer
1 * USB cable
1 * 10 Pin ISP/ICSP cable
1 * Driver CD
1 * SOP8/SOP16/MSop8/SSOP8 to DIP16 Adapter
1 * SOP8-DIP8 150mil adapter with Gold Plating
1 * SOP8-DIP8 200-208mil adapter with Gold Plating
1 * SOP16 to DIP16 Adapter with Gold Plating
1 * SOP8/SOP16/MSOP8/SSOP8 Adapter
Ships from: China

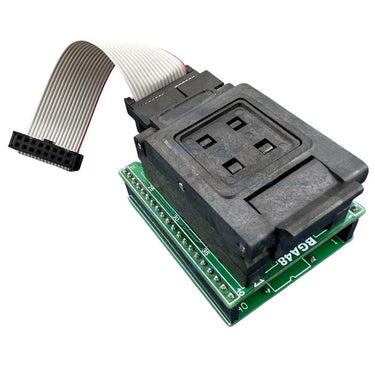

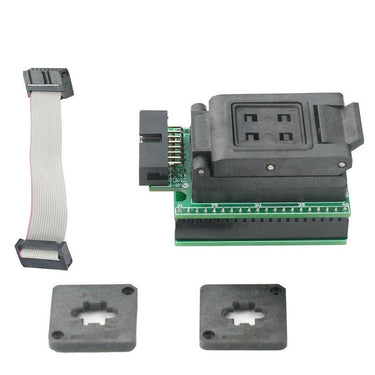

XGecu T48 BGA48 Module ADP_BGA48_E001, Read, Program and Test 0.8mm BGA48 NAND and NOR packages TL866-3G
£55.95
£62.95
Add extra functionality to your XGecu T48 programmer with this BGA NAND and NOR Module. The ADP_BGA48_E001 Adapter allows for reading and programming a wider range of more exotic chips in 0.8mm BGA packages with your T48 (TL866-3G) programmer. The heavy duty ZIP socket features precision pins that can work on any BGA48 module with or without solder balls, this makes it great for recovery work as well as programming fresh stock.
Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56.
Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Features:
For use with NOR and NAND flash devices 0.8 mm BGA48 packages
Supports BGA48 chip sizes: 6*8 mm, 6.15*8.15 mm, 6.5*8 mm
Row spacing 600mil
Item includes: 1x ADP_BGA48_E001, 1x ISP cable, 1x 6*8 Plate, 1x 6.15*8.15 Plate, 1x 6.5*8 Plate
Ships from: China

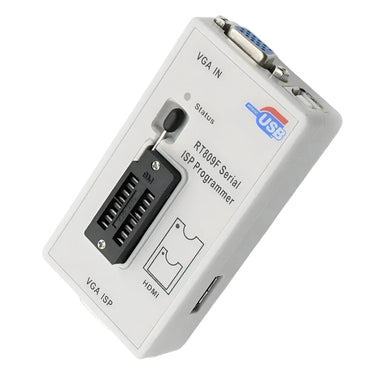

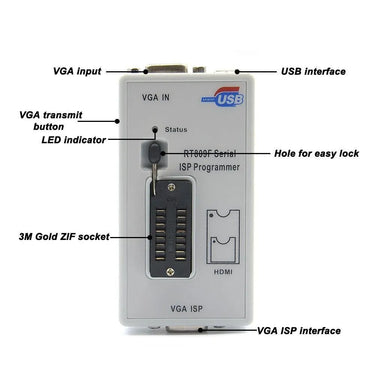

RT809F Serial ISP Programmer: with 12 adapters, 1.8v adapter, SOP8 test clip and EDID cable
from £51.95
£52.95
The RT809F Serial ISP Programmer is powerful little device is similar in nature to the TL866 series but has a few tricks that make it unique.
It supports a wide range in circuit (ICSP) programming options, you can program all sorts of things using the harnesses and clips, you can even program certain devices through VGA or EDID. Great for diagnosis and repair of household appliances. The extensive feature list gives you an idea of what you can achieve with this device.
Please visit our RT809F Downloads Page for the latest software, manuals and chip support list. Need additional adapters? Browse our RT809F range to find suitable adapters.
After purchase we will send links to download the software and manuals. Need additional adapters? Browse our DIP8 range to find suitable adapters. Please get in touch if you cannot find the adapter you need.
Features:
Read and write 8 pin and 16 pins chips, commonly used on computer motherboard, laptop, LCD, routers and home appliances.
Read and write memory DDR1/DDR2/DDR3, especially support 34C02 and other special part numbers.
Support laptop 8 pin and 14 pin password chip and battery chip (especially 24RF08/6480AR/BR9080/9016 special part numbers.
Support all series of 24,IIC EEPROM Memory. It can automatically identify chip model from 24C01 to 24C16. Automatically identifies write protection level of the 24 series' 7th pin.
Support all series of 25 and 26 SPI FLASH Memory, support identifying the chips part number automatically, up to 256Mbit.
Support all series 93 MircroWire Memory, including Japanese special chips.
It is the only one programmer which supports RTD2120 chip’s double bank read and write online. Including the BANK0 where the firmware resides, and the BANK1 area which the menu lives in. It can read double BANK in only 6 seconds. Support RTD2122‘s three BANK read and write online.
Support reading and writing DDC-EDID data of LCD display and LCD TV online. Very easy to solve EDID data problems.
Support reading and writing laptop screen EDID data online, easy to solve laptop’s screen issues. Our store have screen wires sale.
Support for Triumph, Leroy, Ding Branch, Rainbow Star, Kang Yue and Wang Jie general driver board. Write the driver board MCU by VGA port without needing to remove the board.
The programmer software has a new additional function, it can restore the chips. If the board has been damaged when programming, it can work normally with this function. Reduces many issues.
Support to read and write firmware of LCD display and TV motherboard online and out off line. chipset solution, you can use the official ISP software or third-party software, take into account the function's integrity and the user's ease of use.
Support Philips, AOC, BENQ, NESO use NT68F63/NT68F632/NT68F633 series MCU and WT61P4 models. Can read and write programmer free disassemble. The LCD has a common problem of missing programmer, you can solve this problem free disassemble with it. It has a special function of reading MCU original programmer online. It can read and save original programmers from the good MCU. Supports latest SE1059 series’ reading and writing. Easy to solve black screen problems.
Support WINBOND series MCU’s programming online, such as W78E65P-40,it can replace the MCU of M6759,SM5964,SM89516,P89C51RD and TP2804 which are very easily damaged.
Support MTK series LCD and DVD program online. Such as MT2389,MT1379,MT8223 and 8226 etc.
Support SUNPLUS series DVD program online. Such as 8202D 8202S,8202L,8281 and 8200 etc.
Online support in nine series satellite receiver upgrade crack and the brick machine repair; including of Guoxin, Haier, China and Asia, movement program online to read and write and demolition chip reader upgrade feature;
USB-powered, communication automatically detects the programmer self-test mode, the original ISP online programming mode pin disconnection detection, target board power detection function, offline reading and writing pin-contact detection and other special features during the burning of various types of failures can be identified and prompt, effective solution to read and write errors;
Programming the internal high-speed MCU control to upgrade PC client software to complete the programmer's own feature upgrades, more compatible models; using USB interface, power supply and control, eliminating the need for bulky power adapter, easier to use; locking seat of the programming interface, there are anti-static and port the IO protection measures to ensure the reliability of the programmer.
Recordable models constantly add, if there are special needs, you can contact with the company, part of the chip models can remotely add. 24,25,26,93 series chip and official ISP software, users can also customize the video tutorial to add, convenient to use. Gift 8G procedures and information, and provide long-term technical support, to welcome major brand service station order, such as over one hundred customizable software LOGO and special features.
Specifications
Product Includes (x12 Adapter bundle)
1 x SOP8 IC test Clip with base adapter
1 x SOP8 to DIP8 150mil Adapter (Gold Plating)
1 x SOP8 to DIP8 200-208mil Adpater (Gold Plating)
1 x SOP16 to DIP16 150mil Adpater (Gold Plating)
1 x SOP16 to DIP8 Adpater 300mil (Gold Plating)
1 x SOP8/SOP16/ MSOP8/sop8 to DIP16 simple adapter
1 x 1.8V Adapter
1 x TSSOP8/SSOP8 Adapter
1 x ICSP Board with 6P Wire
1 x KB9012 Borad
1 x RT-SOP8-A simple Adapter
1 x RT809F programmer with Package
1 x USB Cable
1 x VGA Cable
1 x EDID Cable
Ships from: China

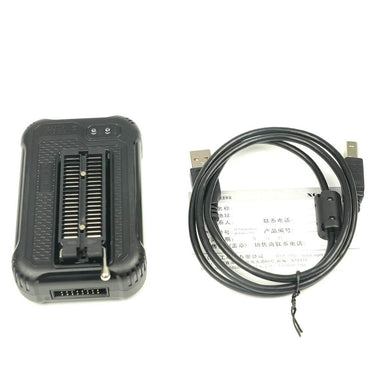

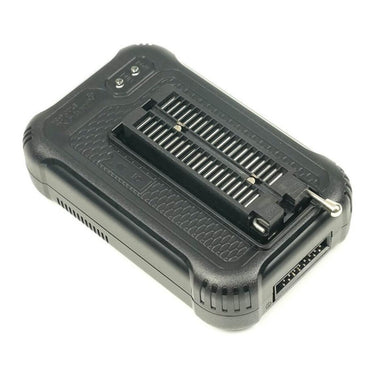

XGecu T48 Programmer V12.15 Support 31000+ ICs for Eprom,MCU,SPI,Nor,Nand Flash,Emmc/IC Tester TL866-3G
from £46.95
Supporting 31000+ types of ROM, EPROM, EEPROM, NAND, GAL, SRAM, EMMC, AVR, MCU, The TL48 (TL866-3G) takes over as XGecu's entry programmer from the venerable TL866 series. Closer in specification to their bigger sibling the T56, these feature rich programmers will help you ensure you can get the job done.
With a high-quality 40-pin industrial ZIF Socket, improves all features of the older TL866II Plus programmers. Using a 120Mhz 32-bit MCU and 4-layer PCB design, this professional T48 programmer supports high-capacity NAND EMMC up to 256GB, with faster programming speeds than the TL866II. With high-voltage chips support upto a VPP Maximum of 25V, you can program a wider variert of chips, a lot of older or vintage EPROMS require these far higher voltages.
Please visit our T48 Downloads Page for the latest software, manuals and chip support list. Need additional adapters? Browse our T48 range to find suitable adapters.
After purchase we will send links to download the software and manuals. Need additional adapters? Browse our T48 range to find suitable adapters. Please get in touch if you need a chip support list.
Features:
Everything you loved about the TL866II series and more...
120Mhz 32-bit MCU with 4-layer PCB Design, USB2.0 480Mhz Connection
16 channel ISP
56-channel dedicated IO with high-speed high-voltage isolation
Replaceable high quality 40pin ZIF socket, extends the life of heavily used programmers
VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable.
Power consumption: 5V <500MA. Static power consumption: 60mA. Without external power supply interface.
Self-test function, self-test each pin of VPP/VCC/GND/IO
Program, Read, Write, Test and more.
Supports over 31000+ types of ROM, EPROM, EEPROM, NAND, GAL, SRAM, EMMC, AVR, MCU etc....
Kits contain different adapters to cover a wide range of chip styles. See the images for which adapters are included with each kit version.
Can attach upto 4 programmers to on PC for small batch runs.
Support WIN2000, WINXP, WIN2003, WIN2008, WIN VISTA, WIN7, WIN8, WIN10(32&64 bit)
Additional Information:
Click to view
Additional Information
×
Specifications:
120Mhz 32-bit MCU with 4-layer PCB Design, USB2.0 480Mhz Connection
Volume: 10cm x 6cm x 2.8cm
40-pin drive IO design. Non-full drive, IO voltage is not adjustable.
VCC voltage 1.8-6.5V 32 levels adjustable,VPP voltage 9V-18V 32 levels adjustable.VCC 120MA over current protection, VPP 100MA over current protection.
VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable.
Power consumption: 5V <500MA. Static power consumption: 60mA. Without external power supply interface.
Self-test function, self-test each pin of VPP/VCC/GND/IO
Suitable for developers and maintenance personnel, can do small batch production for small capacity chips, support simultaneously working with 4 Programmers on each computer
30000+ supported devices from hundreds of manufacturers by 7.05 version of SW (Mar. 1th, 2018).
NAND FLASH: Samsung K9xxx, SK Hynix (ex Hynix) HY27xxx, H27xxx, Micron MT29Fxxx, NANDxxx, Spansion S34xxx, NAND Toshiba TH58NVGxxx.
Serial NAND FLASH: Micron MT29Fxxx.
Serial Flash: standard SPI, high performance Dual I/O SPI and Quad I/O SPI (25Bxxx, 25Dxxx, 25Fxxx, 25Lxxx, 25Pxxx, 25Qxxx, 25Sxxx, 25Txxx, 25Uxxx, 25Vxxx, 25Wxxx, 25Xxxx, 26Vxxx, 45PExx, MX26Lxxx ).DataFlash (AT45Dxxx, AT26Dxxx)
Parallel NOR Flash: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, Samsung'sK8Pxxxx, K8Dxxxx series, ...
EPROM: NMOS/CMOS, 27xxx and 27Cxxx series
EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series,
Serial E(E)PROM: 24XXX,25XXX series,
Microcontrollers MCS51 series:89Cxxx, 89Sxxx, 89EXXX,89VXX
Microcontrollers Atmel AVR 8bit/16bit: AT90Sxxxx, ATtiny, ATmega series
Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, PIC24xxx series
GAL Programmable logic device programming and SRAM test
I.C. Tester: TTL type: 54,74 S/LS/ALS/H/HC/HCT series; CMOS type: 4000, 4500 series; Static RAM: 6116 ..
Ships from: China
XGecu T56 ADP-SSO-056-0.8 ZIF SOP56 to DIP Adapter, no need to solder chip, Support AM29BL802CB and AM29BL162CB
£37.95
Save time and effort with this handy adapter for the XGECU T56 range of programmers. Pop your SOP56 AM29BL802CB or AM29BL162CB (or similar) into the holder, plug the adapter board harness into the board and expansion connector on the T56. Then insert like a regular DIP chip on your T56. Easily Read, Write,Program, Test and Verify your chips without needing to solder them to a board first.
Looking for more T56 accessories and adapters? Browse our T56 range.
Looking for more T56 accessories and adapters? Browse our T56 range.
Features and Usage Notes:
For the XGECU T56 ONLY these will not work with other programmers
ADP-SSO-056-0.8 ZIF SOP56 to DIP adapter, no soldering required
Supports SOP56 AM29BL802CB or AM29BL162CB, check the T56 chip support list to ensure your IC is supported.
Ships from: China

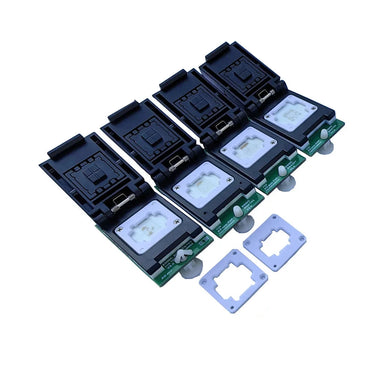

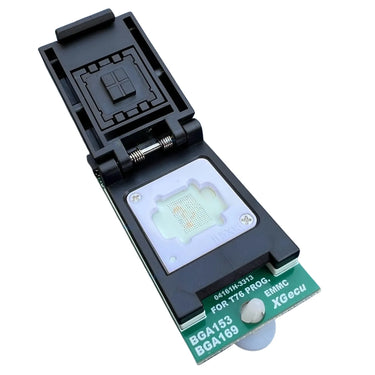

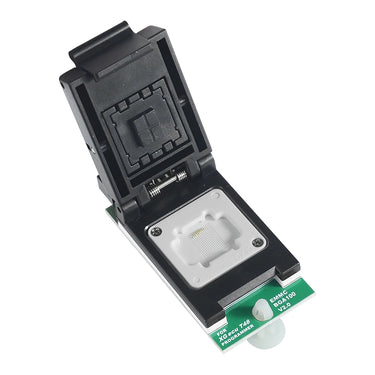

XGECU EMMC BGA Adapter for T48 Programmer Supports BGA153 BGA169 BGA162 BGA221 BGA100 High Speed 5 in 1 Kit
from £28.95
The newly enhanced XGECU EMMC BGA flash adapters for the XGecu T48 programmer expand its capabilities to read and program an extensive array of EMMC BGA packages using your T48 (also known as TL866-3G) programmer. The robust clamshell ZIF socket, equipped with precision pins, is perfectly suited for recovery and programming tasks on packages, regardless of the presence of solder balls. With support for a broad spectrum of BGA packages measuring 12x16mm and 14x18mm, these adapters enable you to manage most common chips in your inventory.
Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56.
Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Features:
For use with BGA153, BGA169, BGA162, BGA221 and BGA100 IC packages
High quality sprung pins ensure a firm connection
Supports 11.5x13mm, 12x16mm and 14x18mm eMMC BGA packages
Supports Samsung KMAFG000A-S998, Hynix H9TQ17ABJTMCUR and similar
For T48 Programmer only
ZIF socket rated for 50,000 actuations
Item includes: 1x Adaptor of choice OR All four adapters
Ships from: China
XGecu T56 SN-ADP-056-0.5 TSOP32/40/48/56 All In One ZIF to DIP Adapter, no soldering
£20.95
£21.95
Save time and effort with this handy adapter for the XGECU T56 range of programmers. Pop your TSOP32, TSOP40, TSOP48 or TSOP56 into the ZIF holder, plug the adapter board harness into the board and expansion connector on the T56. Then insert like a regular DIP chip on your T56. Easily Read, Write,Program, Test and Verify your chips without needing to solder them to a board first.
Looking for more T56 accessories and adapters? Browse our T56 range.
Looking for more T56 accessories and adapters? Browse our T56 range.
Features and Usage Notes:
For the XGECU T56 ONLY these will not work with other programmers
SN-ADP-056-0.5 TSOP32/40/48/56 All In One ZIF to DIP Adapter, no soldering required
Supports most TSOP32, TSOP40, TSOP48 or TSOP56 IC's Check the T56 Chip Support List to ensure your required IC is supported.
Ships from: China
TSOP32 TSOP40 TSOP48 SOP44 SOP56 Adapter Kit for TL866II T56 MiniPro Universal Programmer
£20.95
£21.95
If you have a T56 or TL866 series programmer and are lacking adapters to fit more exotic chips, this kit is just the thing for you. The kit contains various TSOP (Thin Small Outline Package) and two SOP (Small Outline Package) adapters.
This kit is great for allowing you to read and write various flash types for BIOS, TV's, Games Consoles, Laptops, White Goods, Home Audio Video equipment and much more. If your programmer supports the chips you need to deal with, these adapters will get the job done.
Please note: XGECU removed support for the SN001 series boards from T48 programmers, do not purchase these for use on the T48. Please search our T48 collection for a suitable adapter, or get in touch and we'll be happy to help find a suitable solution.
Kit Includes:
TSOP32/TSOP40/TSOP48 Solder Board (SN001-5)
TSOP32/TSOP40/TSOP48 ZIF (SN003)
TSOP40A (SN001-2)
TSOP48/SOP44 2-in-1 NOR base board (SN001-1)
TSOP32 (SN001-4)
TSOP40B (SN001-3)
SOP44 ZIF
SOP56
Ships from: China
In-Circuit SPI Probe Programmer for 24, 25, 93 EEPROM, 25 Flash, and BIOS Chips - For T48, T56, RT809F and more
from £19.95
£20.95
These handy in-circuit probes for various ICs make for quick and easy work by saving time, effort, and potential PCB damage by allowing you to read and program them in place. Ideal for use in in-system programming (ISP), in-circuit serial programming (ICSP), and testing duties. Simply insert the dummy header into your IC programmer and the pop the probe on to the chip you need to deal with and you're up and running. The enhanced versions provide additional clearance to get round high components, along with redesigned pins for more secure connections.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Features:
Test and program with your IC in place, no need to unsolder.
Options for SOP8, VSOP8, WSON6x5, WSON8x6, DIP8, SOT23-5 and SOT23-6.
Support 24 25 93 EEPROM 25 Flash BIOS Chip and more
Enhanced version has longer legs to clear taller components.
Works with most popular programmers including the CH341A, RT809F, RT809H, EZP2019, TL866II, T48 and T56 series
Sprung 4 Claw Probes for stable contact.
Ships from: China
BGA24 4x6mm,5x5mm or 6x8mm to DIP8 ZIF Multi Adapter: Suitable for EZP2023 T48 RT809F TL866II T56 programmers
£17.95
£19.95
These updated BGA24 to DIP8 Zif Adapters save you buying multiple adapters to handle your various IC's, providing a convenient way to enhance your IC Programmer. Compatible with 6x8mm packages using 4x6mm or 5x5mm arrays, the adapter enables users to quickly insert the chip and then use a as regular DIP8 package with the programmer, eliminating the need to solder the chip to a pad board. They are suitable for use with many programmers, such as EZP2023, T48, RT809F, TL866II, T56 and more.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Specifications:
Style: Adapter
Model: BGA24 to DIP8 Multi Adapter
Applicable IC Dimensions: 6x8mm (with either 6x4mm or 5x5mm layouts)
Applicable IC Package: BGA24
Supports BGA24 SPI FLASH: W25Q16 W25Q32 W25Q64 W25Q128 W25Q256 and more
Programmer connector: DIP8 with 1.0mm pitch
Important: Do not clean the BGA24 Adapter with halogenated solvents (methylene chloride, trichloroethylene, perchloroethylene, trichlorotrifluoroethane, and 1,1,1-trichloroethane), these will melt the socket
Suitable Programmers:
XGecu T48, TL866II and T56 series
RT809F
EZP2019+, EXP2023
Also suitable for Superpro, TNM, TOP, GQ-4X, Stager, SOFI and more.
Package Includes: 1x BGA24 to DIP8 Multi Adapter
Ships from: China

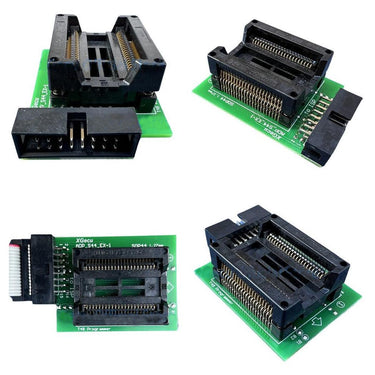

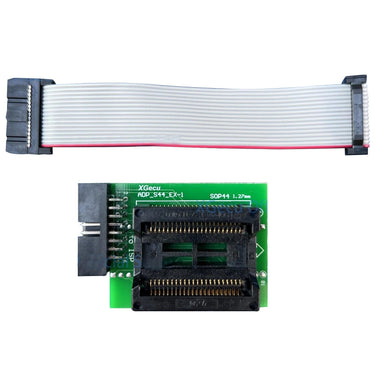

XGecu T48 SOP44 Module ADP_S44_EX-1 Module, Read, Program and Test 1.27mm PSOP44/SOP44/SOIC44 packages TL866-3G
£17.95
Add extra functionality to your XGecu T48 programmer with this SOP44 Module. The ADP_S44_EX-1 Adapter allows for reading and programming a wider range of more exotic chips in 1.27mm SOP44 packages with your T48 (TL866-3G) programmer. The heavy duty ZIP socket features precision contacts and is rated for over 10,000 actuations.
Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56.
Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Features:
For use with 1.27mm PSOP44/SOP44/SOIC44
Ideal for programming AM29F200BB and similar IC's
Supports PSOP/SOP/SOIC devices up to 44 pins (for example EPROMs)
High quality SOP44 ZIF socket
Row spacing 600mil
Item includes: 1x ADP_S44_EX-1, 1x ISP cable.
Ships from: China

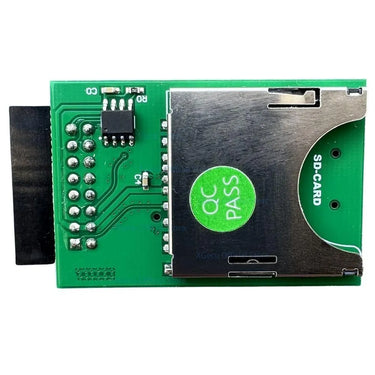

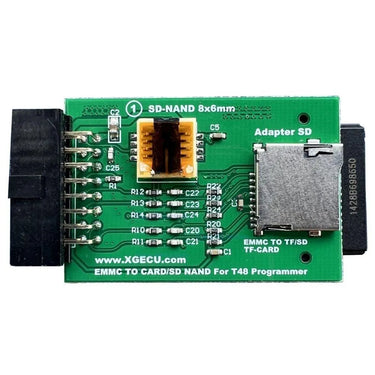

XGECU EMMC SD Adapter for T48 programmer Read and Write SD / TF and 8*6mm EMMC chip
£17.95
£19.95
The XGECU SD and EMMC 8*6mm flash adapter module for the XGecu T48 programmer adds the ability to read and program SD Cards and EMMC chips with the T48 (aka TL866-3G) programmer. Able to accept full size SD, Micro SD, Transflash and EMMC, it's ideal for recovery and/or programming operations.
Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56.
Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Features:
For use with SD, MultiMediaCard / MMC, Mini SD (using a Mini to full size adapter), Micro SD, Transflash / TF and 8*6mm EMMC modules
For T48 Programmer only
Item includes: 1x EMMC SD Adapter
Ships from: China

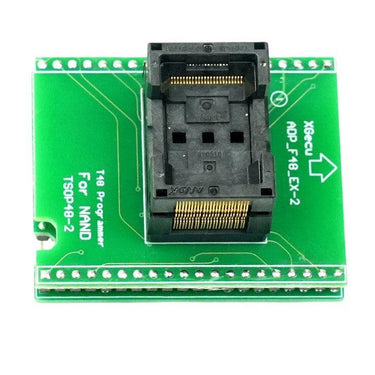

XGecu T48 TSOP48 NAND Module ADP_F48_EX-2, Read, Program and Test TSOP48 NAND packages TL866-3G
£14.95
£16.95
Add extra functionality to your XGecu T48 programmer with this TSOP48 NAND Module. The ADP_F48_EX-2 Adapter allows for reading and programming a wider range of more exotic chips in TSOP48 packages with your T48 (TL866-3G) programmer. The heavy duty ZIP socket features precision contacts and is rated for over 10,000 actuations.
Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56.
Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Features:
For use with TSOP48 packages
Support NAND capacity up to 256G, speed up to 6MB/S
High quality ZIF socket rated for over 10000 insertions
Item includes: 1x ADP_F48_EX-2
Ships from: China

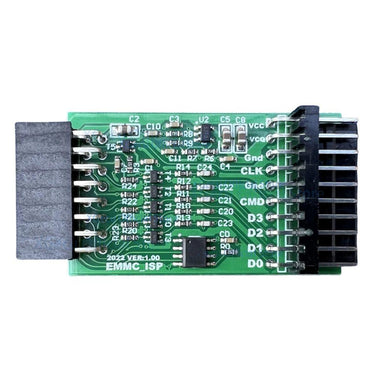

EMMC ISP Module for XGecu T48: Perform In Circuit Serial Programming, Reading and Testing
£14.95
£16.95
Add extra functionality to your XGecu T48 programmer with this ISP Module. The XGecu EMMC-ISP VER: 1.00 Special Adapter allows for in-circuit programming of EMMC chips with your T48 (TL866-3G) programmer. With its secure encryption chip and anti-interference circuit on the PCB board this is designed to get the job done.
Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56.
Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Features:
Provides ISP Functionality to suit most EMMC chips
Provides Pins for VCC, VCCQ(VCQ), GND x2, CLK, CMD, D0 to D3
Supplied with breakout cable
Item includes: 1x EMMC_ISP Board, 1x 10 pin Breakout cable
Ships from: China
T48/TL866II/T56 QFN8/WSON8/MLF8/MLP8/DFN8 To DIP8 Adapter 6*5mm and 8*6mm chips
£14.95
Enhance your T48, TL866II or T56 programmer with this handy QFN8 Zif Adapter. Suitable for both 6*5mm and 8*6mm packages, simply pop the chip in the adapter, then insert into your programmer like a regular DIP8 package. Save time and effort by not having to solder to a regular pad board. These are suitable for use with many programmers, if your programmer supports the chip you wish to program this adapter should work.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Specifications:
Brand Name: XGECU
Style: Adapter
Model: QFN8 two-in-one
Applicable IC Packages: QFN8, WSON8, MLF8, MLP8, DFN8
Package size: 6*5mm and 8*6mm
Package Pitch: 1.27mm
Programmer connector: DIP8
Suitable Programmers:
XGecu T48, TL866II and T56 series
RT809F
EZP2019+
Also suitable for Superpro, TNM, TOP, GQ-4X, Stager, SOFI and more.
Package Includes: 1x QFN8 TO DIP8 two-in-one adapter
Ships from: China
T48 TL866II T56 sop8 sop14 sop16 sop20 sop28 ssop8 ssop16 ssop20 ssop28 zif to dip8 dip28 adapter
£9.95
Read, Write, Program, Test and Burn even more IC Packages, Suitable for use with XGecu T48, TL866, TL866II, T56, RT809F and other IC Programmers. These handy adapters convert a range of SOP, TSOP and SSOP chips to standard DIP pinouts for easy use with your programmer. Save time, effort and potential damage to the IC by using these easy to use ZIF socket adapters. These will work with most popular IC programmers on the market as long as their software supports the IC package you wish to use.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Features:
High quality and durable.
Tested before shipping.
Easy to use ZIF sockets.
Rated lifespan of 5000 insertions
Suitable for XGecu T48, TL866, TL866II and T56 series programmers
Suitable for RT809F and EZP2019 series programmers.
Suitable for ALL-11 Series,ALL-1OOGANG , LT—48 Series, 24C SERIES,SuperPRO Series, TOP Series etc.
Specifications:
SOP8(150MIL) to DIP8Universal SOIC, SOP8(EZ) 508 TO Dip 8 Adapter 150mil ICPin Pitch: 1.27mm and SOP8 narrow chips.Support Chips: 24CXX, 93CXX and all SOP8 narrow chips.
SOP8(300MIL) to DIP8Universal 808 TO Dip 8 Adapter 200MIL 209MIL ICPin Pitch: 1.27mm and SOP8 broad chips.Suitable for W25Q Series, MX Series,Support Chips: 25QXX, MXXX and all SOP8 broad chips.
SOP14(150MIL) to DIP14Type: Test BL Programming SocketPackage: SOP14, SOIC14, SO14Pin pitch: 1.27 mmPin Count: 14 pinsApplicable IC body width : 3.8mm 150MIL
SOP16(150MIL) to DIP16Package: SOP16, SOIC16, SO16Pin pitch : 1.27 mmPin Count: 16 pinsApplicable lC body width : 3.8mm 150MIL
SOP20(209MIL) to DIP20Package: SOP20, SOIC20, SO20Pin pitch : 1.27 mmPin Count: 20 pinsApplicable lC body width : 5.4mm 209MIL
SSOP8(173MIL) to DIP8Package: TSSOP8, SSOP8Pin pitch : 0.65 mmPin Count: 8 pinsApplicable lC body width : 4.4mm 173MIL
SSOP16(173MIL) to DIP16Package: TSSOP16, SSOP16Pin pitch : 0.65 mmPin Count: 16 pinsApplicable lC body width : 4.4mm 173MIL
SSOP20(173MIL) to DIP20Package: TSSOP20, SSOP20Pin pitch : 0.65 mmPin Count: 20 pinsApplicable lC body width : 4.4mm 173MIL
SSOP28(173MIL) to DIP28Package: TSSOP28, SSOP28Pin pitch : 0.65 mmPin Count: 28 pinsApplicable lC body width : 4.4mm 173MIL
SOP16(300MIL) to DIP16Package: SOP16, SOIC16, SO16Pin pitch : 1.27 mmPin Count: 16 pinsApplicable lC body width : 7.5mm 300MIL
SOP20(300MIL) to DIP20Package: SOP20, SOIC20, SO20Pin pitch : 1.27 mmPin Count: 20 pinsApplicable lC body width : 7.5mm 300MIL
SOP28(300MIL) to DIP28Package: SOP28, SOIC28, SO28Pin pitch : 1.27 mmPin Count: 28 pinsApplicable lC body width : 7.5mm 300MIL
Ships from: China
EDID ISP ICSP Cable for Notebook and LCD screens: suits 24C02 series chips for RT809F, RT809H, TL866, T48, T56
£8.95
Enhance your IC programmers with these handy EDID Adapters. Designed to read and program 24C02 Serial Electrically Erasable PROM chips. The adapter has two headers for 30 and 40 pin screens, simply insert the DIP8 header into your T48, TL866II, T56 or similar programmer and access the chip over the cable. Save time and effort through In Circuit Serial Programming ISP/ICSP and not having to solder/desolder the chip. These are suitable for use with many programmers, if your programmer supports the chip you wish to program this adapter will allow you to work with it.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other DIP8 adapters? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Specifications:
Style: Adapter
Model: EDID 24C02 to DIP8
Applicable IC Packages: 24C02 Series
Programmer connector: DIP8
Suitable Programmers:
XGecu T48, TL866II and T56 series
RT809F
EZP2019+
Also suitable for Superpro, TNM, TOP, GQ-4X, Stager, SOFI and more.
Package Includes: 1x 24C02C EDID TO DIP8 Cable
Ships from: China
XGecu T48 DIP42/PLCC44 Module ADP_D42_EX-A, Read, Program and Test DIP42 and PLCC44 Chips such as 27C800 MX2171610 TL866-3G
£8.95
£9.95
Add extra functionality to your XGecu T48 programmer with this DIP42/PLCC44 Module. The XGecu ADP_D42_EX-A Adapter allows for reading and programming a wider range of more exotic chips in DIP42 or PLCC44 packages with your T48 (TL866-3G) programmer
Please note: This adapter only can work on the XGecu T48 programmer, it is not for other programmers such as the TL866CS, TL866A, TL866II or T56.
Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Looking for other T48 adapters? View our T48 range, need DIP8 adapters instead? View our DIP8 adapter range, if we don't have the one you're looking for please get in touch.
Features:
Suitable for use with DIP42 PLCC44 package chips, such as:
27C800
27C160
27C322
27V800
27V160
27V322
MX27C8100
MX27C1610
Item includes: 1x ADP_D42_EX-A, 1x ISP cable
Ships from: China
EZP2019+ USB SPI Programmer with 12 adapters. Supports 24/25/25/93 Block EEPROMS
from £8.95
£9.95
The EZP2019+ may look small and cheap against larger programmer such as TL866II and T56 series, but don't be fooled by it's looks. These cracking little programmers pack a punch with a great feature set and small size, making them ideal for use in the workshop and on the move. Able to read, write, program, test and burn a wide variety of common IC packages. Some kits include a SOP8 test clip for ISP and SPI work such as; BIOS Recovery, Domestic Appliance Repair, TV, DVD, Hard Drive Controllers and more.. The LCD 2 in 1 cable included with the 12 Adapter kit allows work on a wide variety of LCD TV's and Monitors
Please visit our EZP2019 Downloads Page for the latest software, manuals and chip support list. Need additional adapters? Browse our EZP2019 range to find suitable adapters.
After purchase we will send links to download the software and manuals. Need additional adapters? Browse our DIP8 range to find suitable adapters. Please get in touch if you cannot find the adapter you need.
Features:
Appliance repair: suitable for household appliances maintenance industry flash color TV, DVD, computer motherboards, hard disk memory chips.
he product research and development: the company product research and development in the process of burning test chip.
The factory production: automatic offline copy function is particularly suited to factory mass burn memory chips.
USB 2.0 interface, speed up to 12 MBPS.
Read and write speed is super fast, read EN25T80 as long as three seconds, write EN25T80 only in 9 seconds, the fastest is currently on the market the BIOS chip programmer.
The automatic identification of chip.
Automatically detect whether chip.
Automatic selection chip power supply voltage.
Automatic offline copy.
Includes PC software and programming device firmware upgrade.
Fully supports 24/25/26/93 Block FLASH, EEPROM, Memory chips, etc..
Appearance is compact, easy to carry, and ordinary card about the size.
Kit Contents:
2 Adapter Kit: EZP2019 with 2x SOP8/SOP16 solder plates.
5 Adapter Kit: EZP2019 with 2x SOP8/SOP16 solder plates. 1x SOP16 300mil, 1x SOP8 200mil, 1x SOP8 150mil.
8 Adapter Kit: EZP2019 with 2x SOP8/SOP16 solder plates, 1x SOP16 300mil, 1x SOP8 200mil, 1x SOP8 150mil, 1x 1.8V ZIF Adapter, 1x SOP8 Flash Clip, 1x Flash Clip Connector Board.
10 Adapter Kit: EZP2019 with 2x SOP8/SOP16 solder plates, 1x SOP16 300mil, 1x SOP8 200mil, 1x SOP8 150mil, 1x 1.8V ZIF Adapter, 1x SOP8 Flash Clip, 1x Flash Clip Connector Board, 2x QFN/DFN8/WSON8/MLF8 to DIP8.
12 Adapter Kit: EZP2019 with 2x SOP8/SOP16 solder plates, 1x SOP8 200mil, 1x SOP8 150mil,1x SOP16 300mil, 1x 1.8V ZIF Adapter, 1x SOP8 Flash Clip, 1x Flash Clip Connector Board, 1x LED LCD 2in1 cable, 2x QFN/DFN8/WSON8/MLF8 to DIP8.
