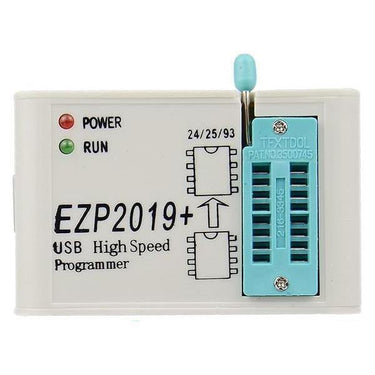

EZP2019+ USB SPI Programmer with 12 adapters. Supports 24/25/25/93 Block EEPROMS
from £8.95
The EZP2019+ may look small and cheap against larger programmer such as TL866II and T56 series, but don't be fooled by it's looks. These cracking little programmers pack a punch with a great feature set and small size, making them ideal for use in the workshop and on the move. Able to read, write, program, test and burn a wide variety of common IC packages. Some kits include a SOP8 test clip for ISP and SPI work such as; BIOS Recovery, Domestic Appliance Repair, TV, DVD, Hard Drive Controllers and more.. The LCD 2 in 1 cable included with the 12 Adapter kit allows work on a wide variety of LCD TV's and Monitors
Please visit our EZP2019 Downloads Page for the latest software, manuals and chip support list. Need additional adapters? Browse our EZP2019 range to find suitable adapters.
After purchase we will send links to download the software and manuals. Need additional adapters? Browse our DIP8 range to find suitable adapters. Please get in touch if you cannot find the adapter you need.
Features:
Appliance repair: suitable for household appliances maintenance industry flash color TV, DVD, computer motherboards, hard disk memory chips.
he product research and development: the company product research and development in the process of burning test chip.
The factory production: automatic offline copy function is particularly suited to factory mass burn memory chips.
USB 2.0 interface, speed up to 12 MBPS.
Read and write speed is super fast, read EN25T80 as long as three seconds, write EN25T80 only in 9 seconds, the fastest is currently on the market the BIOS chip programmer.
The automatic identification of chip.
Automatically detect whether chip.
Automatic selection chip power supply voltage.
Automatic offline copy.
Includes PC software and programming device firmware upgrade.
Fully supports 24/25/26/93 Block FLASH, EEPROM, Memory chips, etc..
Appearance is compact, easy to carry, and ordinary card about the size.
Kit Contents:

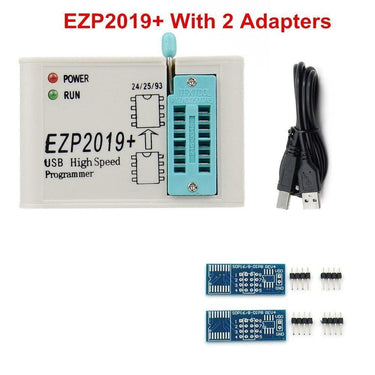

2 Adapter Kit: EZP2019 with 2x SOP8/SOP16 solder plates.
5 Adapter Kit: EZP2019 with 2x SOP8/SOP16 solder plates. 1x SOP16 300mil, 1x SOP8 200mil, 1x SOP8 150mil.
8 Adapter Kit: EZP2019 with 2x SOP8/SOP16 solder plates, 1x SOP16 300mil, 1x SOP8 200mil, 1x SOP8 150mil, 1x 1.8V ZIF Adapter, 1x SOP8 Flash Clip, 1x Flash Clip Connector Board.
10 Adapter Kit: EZP2019 with 2x SOP8/SOP16 solder plates, 1x SOP16 300mil, 1x SOP8 200mil, 1x SOP8 150mil, 1x 1.8V ZIF Adapter, 1x SOP8 Flash Clip, 1x Flash Clip Connector Board, 2x QFN/DFN8/WSON8/MLF8 to DIP8.
12 Adapter Kit: EZP2019 with 2x SOP8/SOP16 solder plates, 1x SOP8 200mil, 1x SOP8 150mil,1x SOP16 300mil, 1x 1.8V ZIF Adapter, 1x SOP8 Flash Clip, 1x Flash Clip Connector Board, 1x LED LCD 2in1 cable, 2x QFN/DFN8/WSON8/MLF8 to DIP8.
