Ships from: China
DIY Bluetooth Speaker: Great starter electronics/stem project, educational toy for children
£11.95
A great little project for yourself or others to learn a bit more about electronics. The supplied parts are easy to assemble and gives you a practical item at the end. Once built you can connect to your phone over Bluetooth and enjoy your music. 🔊🕺
Notes:
Batteries not included, self assembly required.
Soldering iron and basic tools required.
Ideal project for any budding electrical engineer, build your own Bluetooth speaker from this kit.
Ideal starter project with a practical result.
Requires 4x AA Batteries.
Once built simply turn on and pair to your mobile phone.
The speaker has a simple on/off switch, most phones have a Bluetooth volume control when connected.
Will work with pretty much any Apple or Android phone/tablet.
Ships from: China

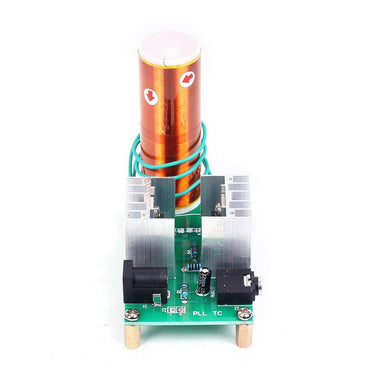

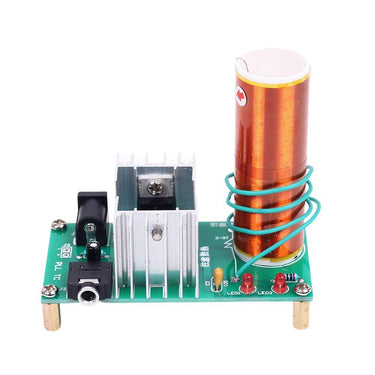

DIY Mini Tesla Coil Kit Module, Plasma Speaker Electronic Kit, 15W DC 15-24V 2A , Great Educational Toy
£10.95
Tesla coils are cool, who cannot resist playing with mini lightning ⚡ This Mini Tesla Coil Kit is a great educational toy, it works much as you would expect, producing mini sparks of energy you can interact with, it also has an audio input allowing you to produce sound based on the audio input. The kit is unassembled and you'll need to provide a power supply to drive it, most laptop power supplies with a barrel jack will be fine for this. You'll need basic soldering skills to assemble the kit.
A Tesla coil is a transformer that operates on the resonance principle. It was invented by Nicola Tesla, a Serbian-American scientist in 1891. It is mainly used to produce ultra high voltage, but low current, high-frequency AC power. The Tesla coil is composed of two groups of resonant circuits (sometimes three groups) coupled. Nicola Tesla tried a large number of configurations of various coils for his experiments over the years, such as electrical lighting, fluorescence spectrum, X ray, high frequency alternating current phenomenon, electrotherapy, and radio energy transmission (such as Wardenclyffe Tower), among others.
Features:
Great educational product
Unassembled kit, requires basic soldering skills to assemble
Requires DC power supply, a spare laptop supply with a barrel jack will do the trick
Tesla coil functions:
Electric arc function: the traverse of the rear end will produce an arc. The arc can also ignite
Power transmission function: after the Tesla coil is charged, small LED's and bulbs can be wirelessly powered
Music playback function: a new concept loudspeaker for an electric arc to stimulate air to make air vibration produced by plasma. You can play mobile/computer music, but the sound is small.
Assembly tips:
1. Install small components at first;
2. Install complex components preferentially;
3. Pay attention to the installation direction of components.
4. Make sure the soldering iron does not touch the components for a long time. Otherwise it is easy to damage the components.
Safety notes:
1. This product is safe, power is not high, will not be injured by electric shock, but it is not recommended to touch the top of the coil arc, there will be a sense of burning.
2. Do not touch the heat sink after a long time power supply, the temperature is very high, especially the use of 24v high voltage heat huge, if necessary, add their own cooling fan cooling, or working hours lead to too hot, please turn off for a period of time Electric use.
3. Tesla coil is recommended to work when the body or other objects close to the coil, the coil next to half a meter blank can not be other objects, as other objects as a good conductor will make the coil form a good loop, absorbing the coil energy, making Testers Pull the coil at this time the effect of demonstration or deterioration can not be demonstrated!
4. Do not put cell phones, mp3 and other electronic equipment close to the coil, or the coil will produce high-frequency magnetic field interference, making mobile phones, mp3, and other equipment failure or damage!
Specifications
PCB size: 4.0mm*8.0mm
Power: 15W
Power input: DC 15-24V 2A 5.5mm barrel jack
Audio input: 3.5 socket, can be connected to mobile phone, MP3, computer audio
Component list
NO.
Component Name
PCB marker
Parameter
QTY.
1
Metal film resistor
R1, R4
10K
2
2
Metal film resistor
R3, R5
2K
2
3
TIP41
Q2
/
1
4
LED
LED1, LED2
3mm
2
5
Audio socket
J2
/
1
6
Electrolytic capacitor
1uf
C1
1
7
IRF530
Q1
/
1
8
Power socket
J1
5.0*2.1mm
1
9
Primary coil
L1
2-3T
1
10
Secondary coil
L2
350T
1
11
Copper pillar
/
M3*10
4
12
Screw
/
M3*6
4
13
Heat sink
/
/
1
14
PCB
/
40*76mm
1
Assembly Guide and Links
Assembly Guide
oneTesla 5 Step Soldering Tutorial (great for beginners)
Nicola Tesla Wikipedia Page
Tesla Science Center at Wardenclyffe Wikipedia Page
ArcAttack's YouTube page (Big Tesla Coils making music)
Ships from: China
DIY Mini Tesla Coil Kit (x3) Module, Plasma Speaker Electronic Kit, 15W DC 15-24V 2A , Great Educational Toy
£15.95
Tesla coils are cool, who cannot resist playing with mini lightning ⚡ This Mini Tesla Coil Kit is a great educational toy, these packs of 3 are great for use in group projects. They work much as you would expect, producing mini sparks of energy you can interact with, it also has an audio input allowing you to produce sound based on the audio input. The kit is unassembled and you'll need to provide a power supply to drive it, most laptop power supplies with a barrel jack will be fine for this. You'll need basic soldering skills to assemble the kit.
A Tesla coil is a transformer that operates on the resonance principle. It was invented by Nicola Tesla, a Serbian-American scientist in 1891. It is mainly used to produce ultra high voltage, but low current, high-frequency AC power. The Tesla coil is composed of two groups of resonant circuits (sometimes three groups) coupled. Nicola Tesla tried a large number of configurations of various coils for his experiments over the years, such as electrical lighting, fluorescence spectrum, X ray, high frequency alternating current phenomenon, electrotherapy, and radio energy transmission (such as Wardenclyffe Tower), among others.
Features:
Great educational product
Unassembled kit, requires basic soldering skills to assemble
Requires DC power supply, a spare laptop supply with a barrel jack will do the trick
Tesla coil functions:
Electric arc function: the traverse of the rear end will produce an arc. The arc can also ignite
Power transmission function: after the Tesla coil is charged, small LED's and bulbs can be wirelessly powered
Music playback function: a new concept loudspeaker for an electric arc to stimulate air to make air vibration produced by plasma. You can play mobile/computer music, but the sound is small.
Assembly tips:
1. Install small components at first;
2. Install complex components preferentially;
3. Pay attention to the installation direction of components.
4. Make sure the soldering iron does not touch the components for a long time. Otherwise it is easy to damage the components.
Safety notes:
1. This product is safe, power is not high, will not be injured by electric shock, but it is not recommended to touch the top of the coil arc, there will be a sense of burning.
2. Do not touch the heat sink after a long time power supply, the temperature is very high, especially the use of 24v high voltage heat huge, if necessary, add their own cooling fan cooling, or working hours lead to too hot, please turn off for a period of time Electric use.
3. Tesla coil is recommended to work when the body or other objects close to the coil, the coil next to half a meter blank can not be other objects, as other objects as a good conductor will make the coil form a good loop, absorbing the coil energy, making Testers Pull the coil at this time the effect of demonstration or deterioration can not be demonstrated!
4. Do not put cell phones, mp3 and other electronic equipment close to the coil, or the coil will produce high-frequency magnetic field interference, making mobile phones, mp3, and other equipment failure or damage!
Specifications
PCB size: 4.0mm*8.0mm
Power: 15W
Power input: DC 15-24V 2A 5.5mm barrel jack
Audio input: 3.5 socket, can be connected to mobile phone, MP3, computer audio
Component list
NO.
Component Name
PCB marker
Parameter
QTY.
1
Metal film resistor
R1, R4
10K
2
2
Metal film resistor
R3, R5
2K
2
3
TIP41
Q2
/
1
4
LED
LED1, LED2
3mm
2
5
Audio socket
J2
/
1
6
Electrolytic capacitor
1uf
C1
1
7
IRF530
Q1
/
1
8
Power socket
J1
5.0*2.1mm
1
9
Primary coil
L1
2-3T
1
10
Secondary coil
L2
350T
1
11
Copper pillar
/
M3*10
4
12
Screw
/
M3*6
4
13
Heat sink
/
/
1
14
PCB
/
40*76mm
1
Assembly Guide and Links
Assembly Guide
oneTesla 5 Step Soldering Tutorial (great for beginners)
Nicola Tesla Wikipedia Page
Tesla Science Center at Wardenclyffe Wikipedia Page
ArcAttack's YouTube page (Big Tesla Coils making music)
Ships from: China
Lucky Cat DIY Wireless Bluetooth Speaker Educational Electronic Science Experiment Production Kit STEM
£13.95
A great little project for learning a bit more about electronics. The supplied parts are easy to assemble and gives you a practical item at the end. Once built you can connect to your phone over Bluetooth and play your favourite tunes. 🔊🕺
This updated model features an USB power connector to save using AA batteries, and a cute laser engraved cat face design.
Notes:
Batteries not included, self assembly required.
Soldering iron and basic tools required.
Ideal project for any budding electrical engineer, build your own Bluetooth speaker from this kit.
Ideal starter project with a practical result.
Requires 4x AA Batteries or USB Power.
Once built simply turn on and pair to your mobile phone.
The speaker has a simple on/off switch, your phone can control the Bluetooth volume control when connected.
Will work with pretty much any Apple or Android phone/tablet.
