XGecu T48 Programmer V12.15 Support 31000+ ICs for Eprom,MCU,SPI,Nor,Nand Flash,Emmc/IC Tester TL866-3G

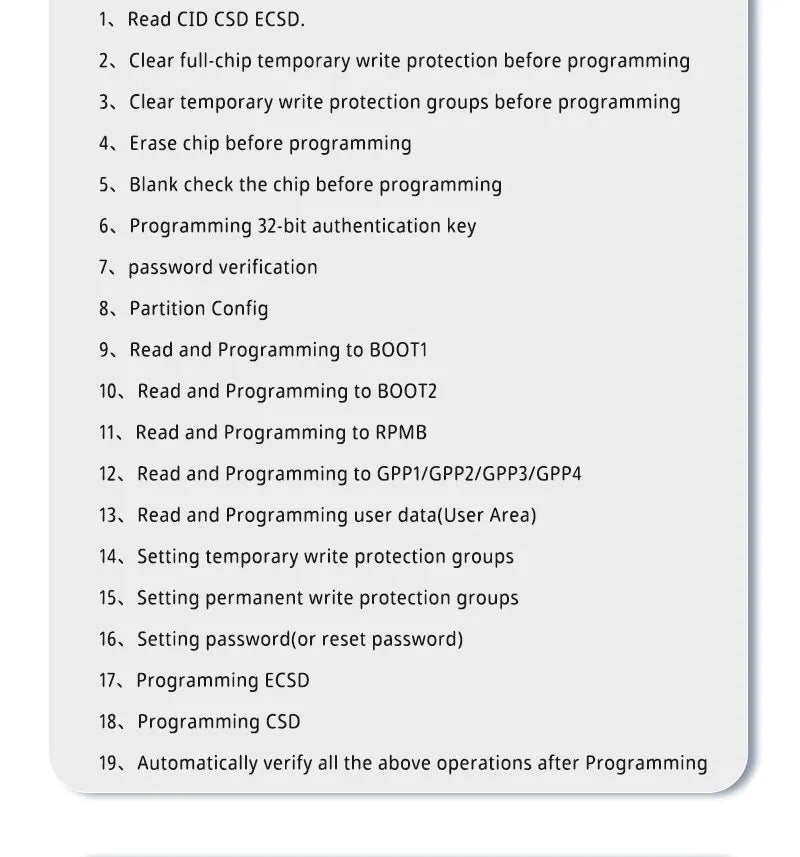

Supporting 31000+ types of ROM, EPROM, EEPROM, NAND, GAL, SRAM, EMMC, AVR, MCU, The TL48 (TL866-3G) takes over as XGecu's entry programmer from the venerable TL866 series. Closer in specification to their bigger sibling the T56, these feature rich programmers will help you ensure you can get the job done.

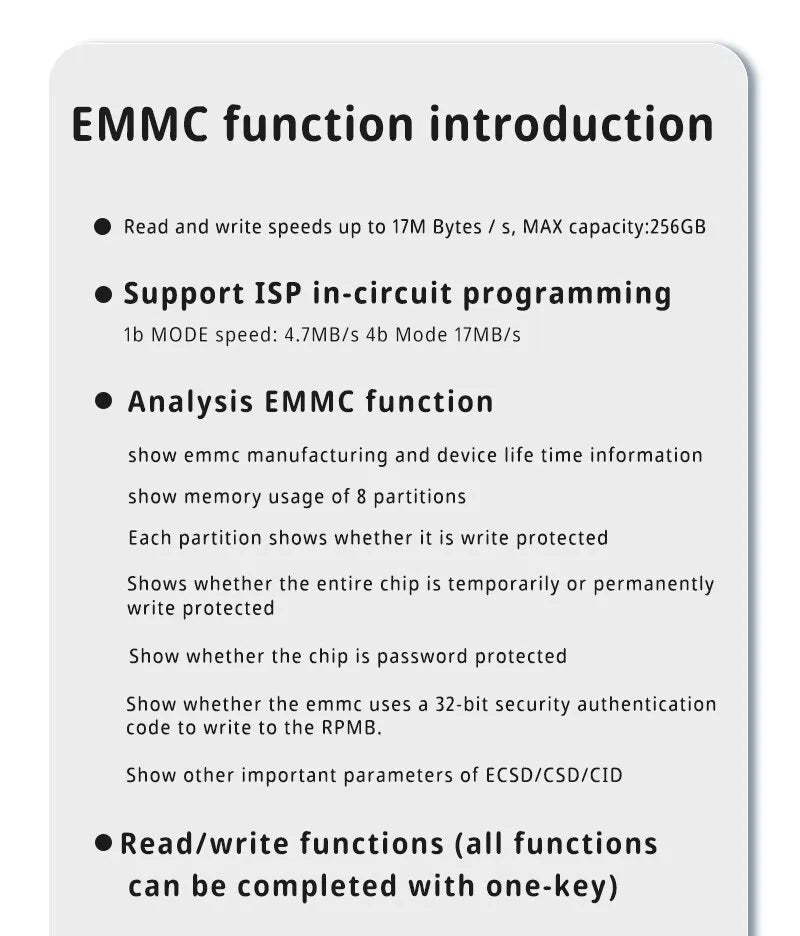

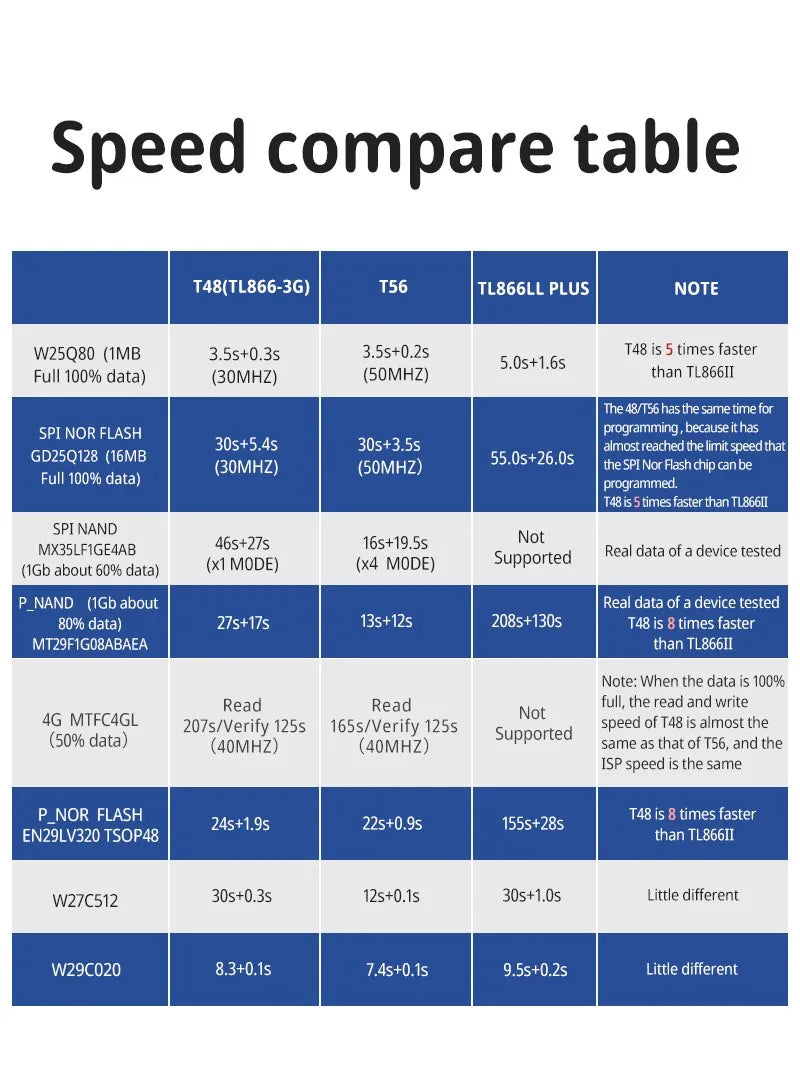

With a high-quality 40-pin industrial ZIF Socket, improves all features of the older TL866II Plus programmers. Using a 120Mhz 32-bit MCU and 4-layer PCB design, this professional T48 programmer supports high-capacity NAND EMMC up to 256GB, with faster programming speeds than the TL866II. With high-voltage chips support upto a VPP Maximum of 25V, you can program a wider variert of chips, a lot of older or vintage EPROMS require these far higher voltages.

Features:

• Everything you loved about the TL866II series and more...
• 120Mhz 32-bit MCU with 4-layer PCB Design, USB2.0 480Mhz Connection

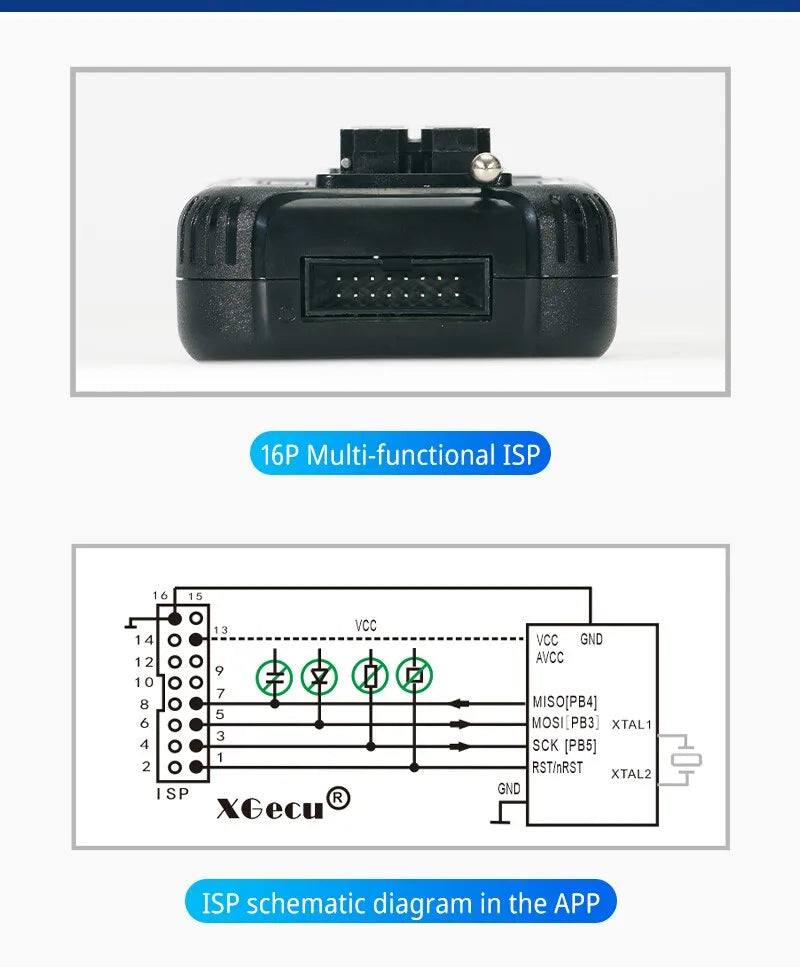

• 16 channel ISP
• 56-channel dedicated IO with high-speed high-voltage isolation

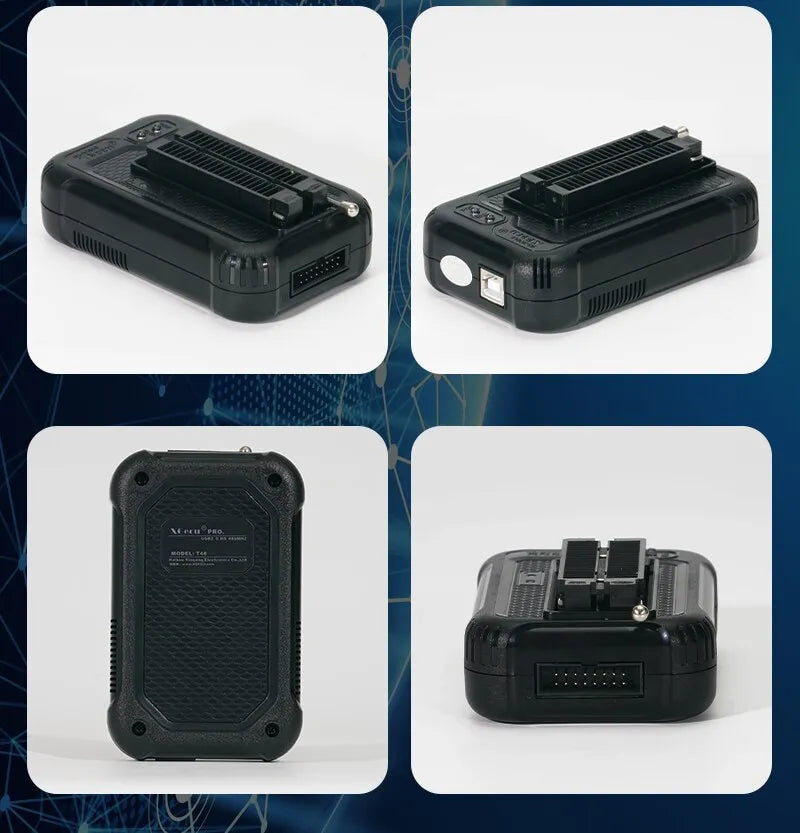

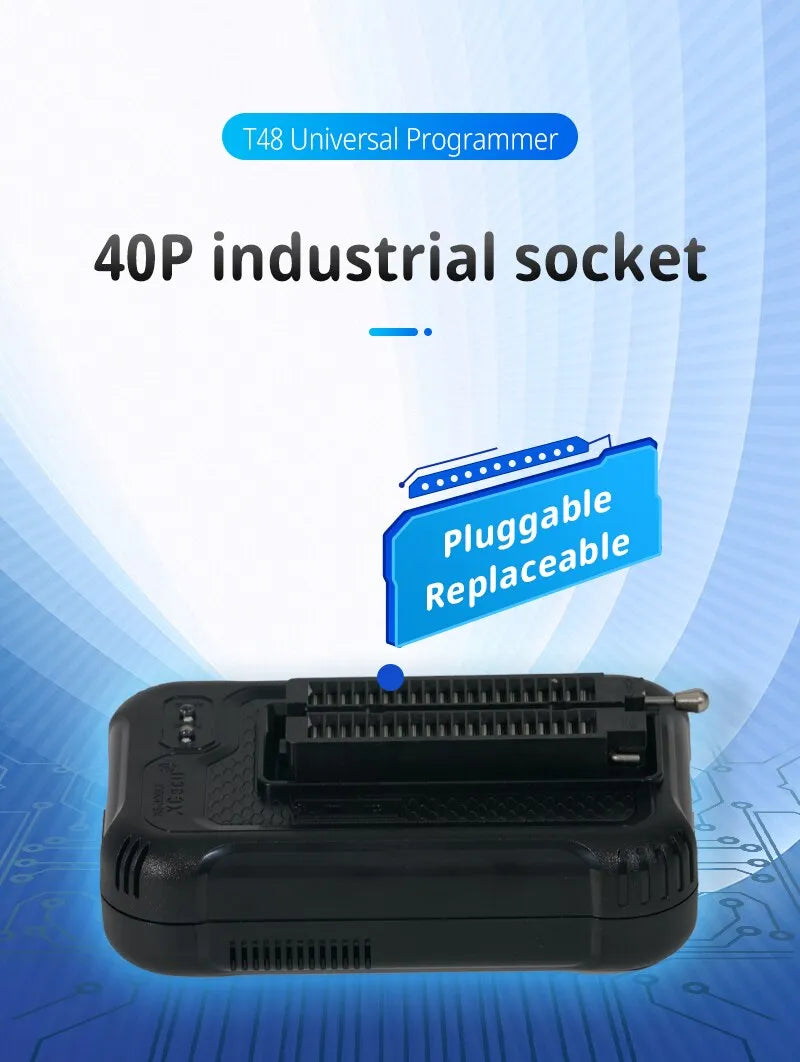

• Replaceable high quality 40pin ZIF socket, extends the life of heavily used programmers
• VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable.
• Power consumption: 5V <500MA. Static power consumption: 60mA. Without external power supply interface.
• Self-test function, self-test each pin of VPP/VCC/GND/IO
• Program, Read, Write, Test and more.
• Supports over 31000+ types of ROM, EPROM, EEPROM, NAND, GAL, SRAM, EMMC, AVR, MCU etc....
• Kits contain different adapters to cover a wide range of chip styles. See the images for which adapters are included with each kit version.

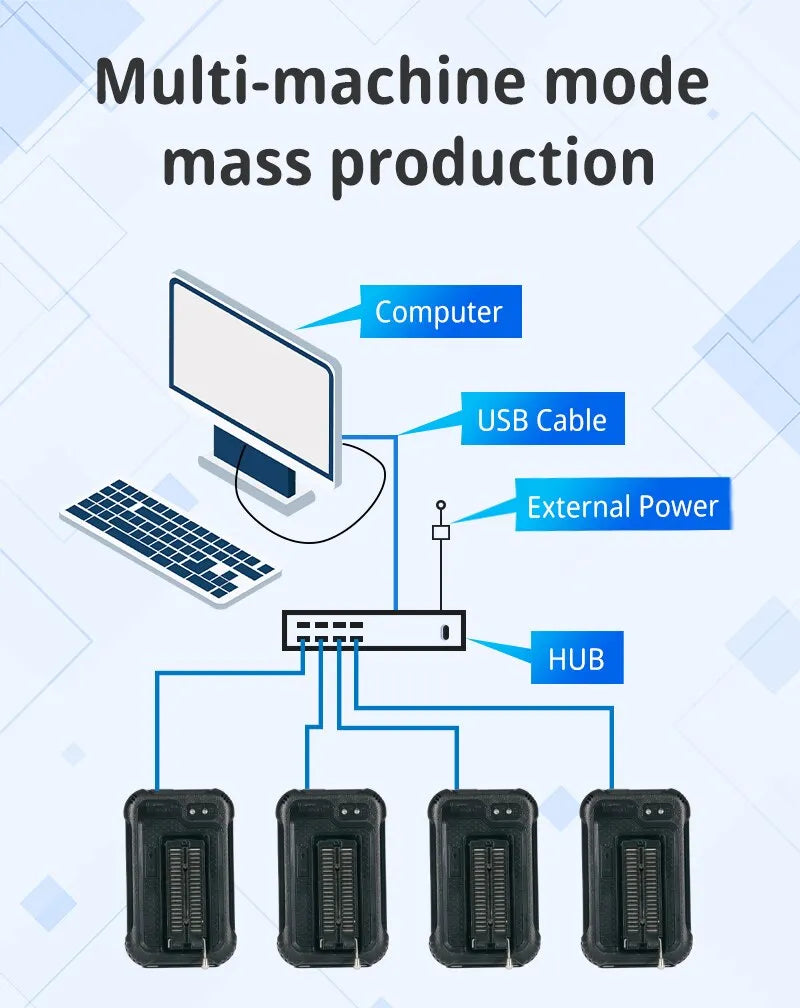

• Can attach upto 4 programmers to on PC for small batch runs.
• Support WIN2000, WINXP, WIN2003, WIN2008, WIN VISTA, WIN7, WIN8, WIN10(32&64 bit)

Additional Information:

Click to view

Additional Information

×

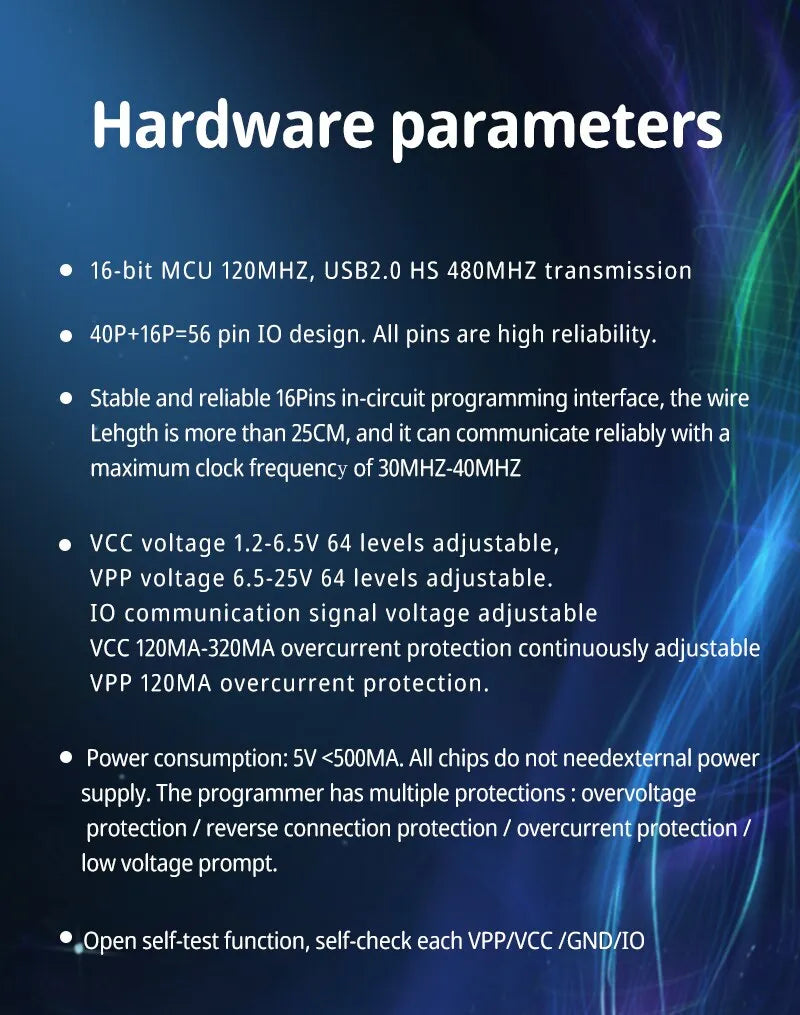

Specifications:

• 120Mhz 32-bit MCU with 4-layer PCB Design, USB2.0 480Mhz Connection

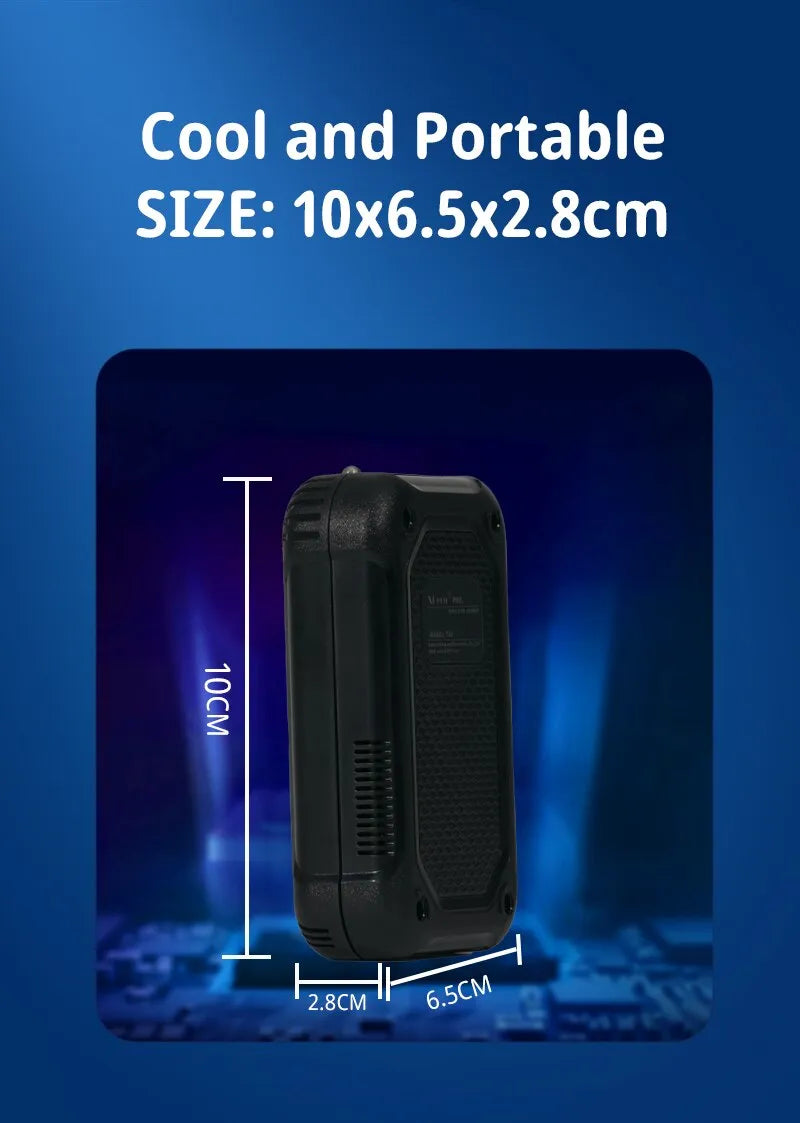

• Volume: 10cm x 6cm x 2.8cm
• 40-pin drive IO design. Non-full drive, IO voltage is not adjustable.
• VCC voltage 1.8-6.5V 32 levels adjustable,VPP voltage 9V-18V 32 levels adjustable.VCC 120MA over current protection, VPP 100MA over current protection.
• VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable.
• Power consumption: 5V <500MA. Static power consumption: 60mA. Without external power supply interface.
• Self-test function, self-test each pin of VPP/VCC/GND/IO
• Suitable for developers and maintenance personnel, can do small batch production for small capacity chips, support simultaneously working with 4 Programmers on each computer
• 30000+ supported devices from hundreds of manufacturers by 7.05 version of SW (Mar. 1th, 2018).

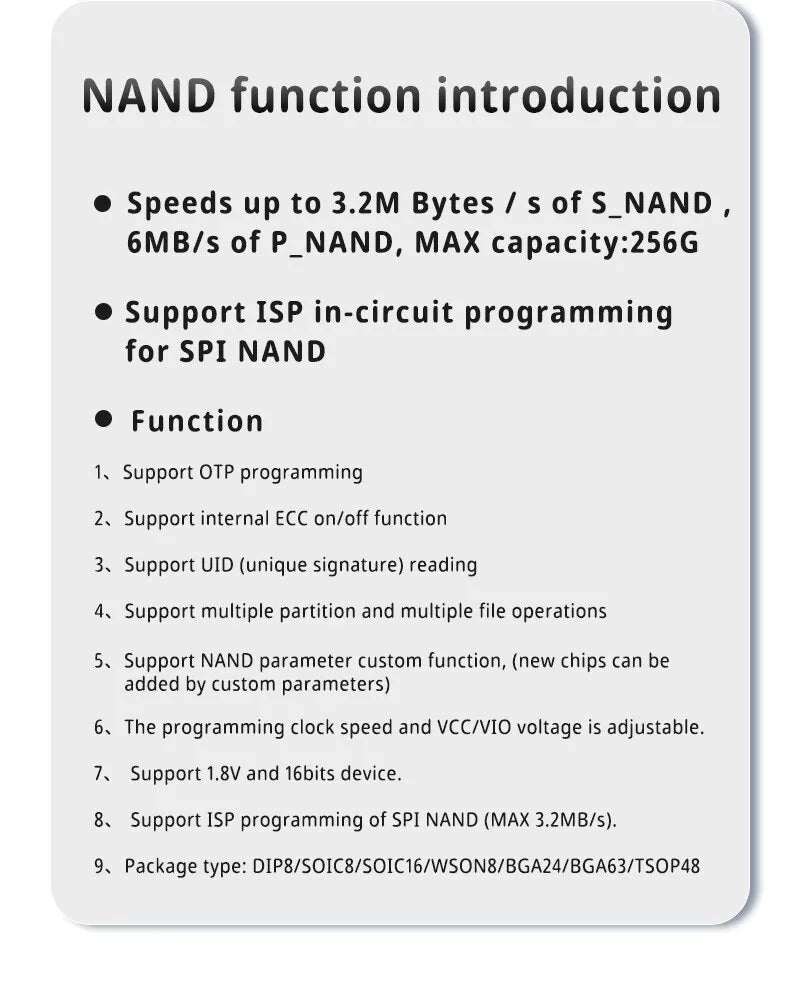

• NAND FLASH: Samsung K9xxx, SK Hynix (ex Hynix) HY27xxx, H27xxx, Micron MT29Fxxx, NANDxxx, Spansion S34xxx, NAND Toshiba TH58NVGxxx.
• Serial NAND FLASH: Micron MT29Fxxx.

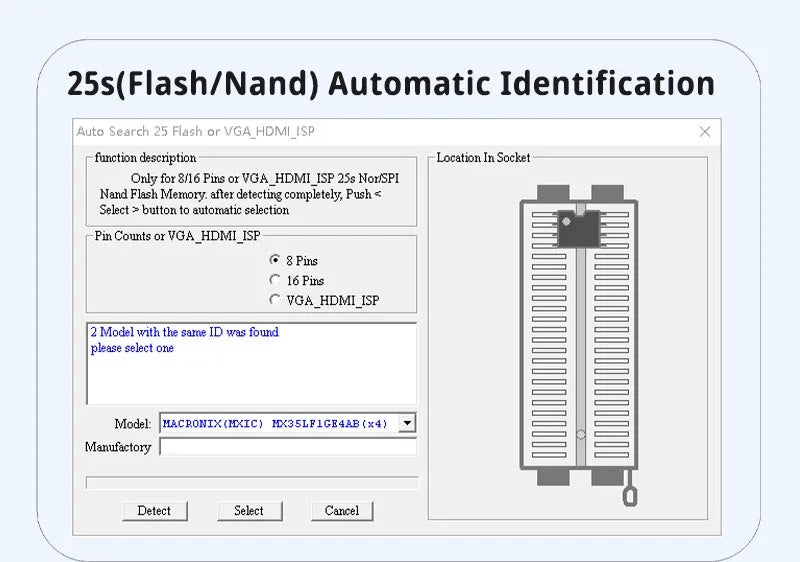

• Serial Flash: standard SPI, high performance Dual I/O SPI and Quad I/O SPI (25Bxxx, 25Dxxx, 25Fxxx, 25Lxxx, 25Pxxx, 25Qxxx, 25Sxxx, 25Txxx, 25Uxxx, 25Vxxx, 25Wxxx, 25Xxxx, 26Vxxx, 45PExx, MX26Lxxx ).DataFlash (AT45Dxxx, AT26Dxxx)
• Parallel NOR Flash: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, Samsung'sK8Pxxxx, K8Dxxxx series, ...
• EPROM: NMOS/CMOS, 27xxx and 27Cxxx series
• EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series,
• Serial E(E)PROM: 24XXX,25XXX series,
• Microcontrollers MCS51 series:89Cxxx, 89Sxxx, 89EXXX,89VXX
• Microcontrollers Atmel AVR 8bit/16bit: AT90Sxxxx, ATtiny, ATmega series
• Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, PIC24xxx series
• GAL Programmable logic device programming and SRAM test

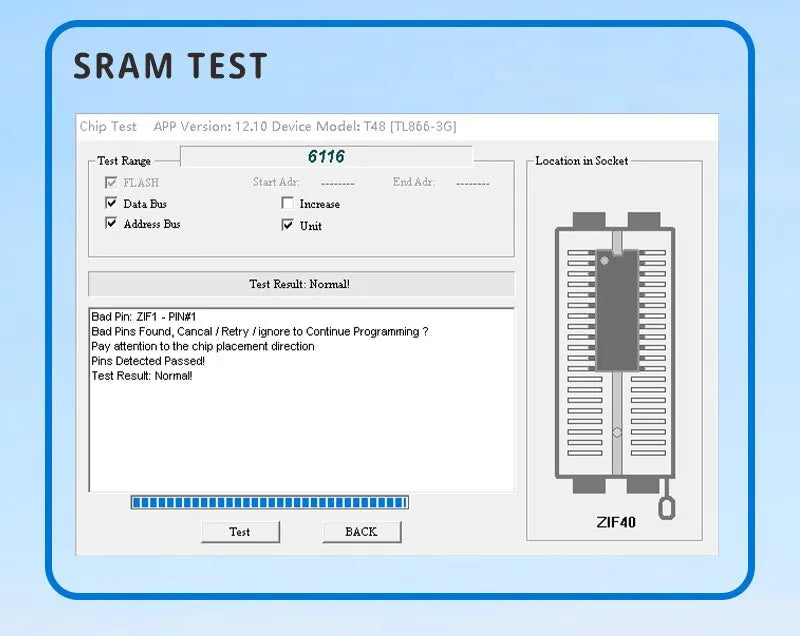

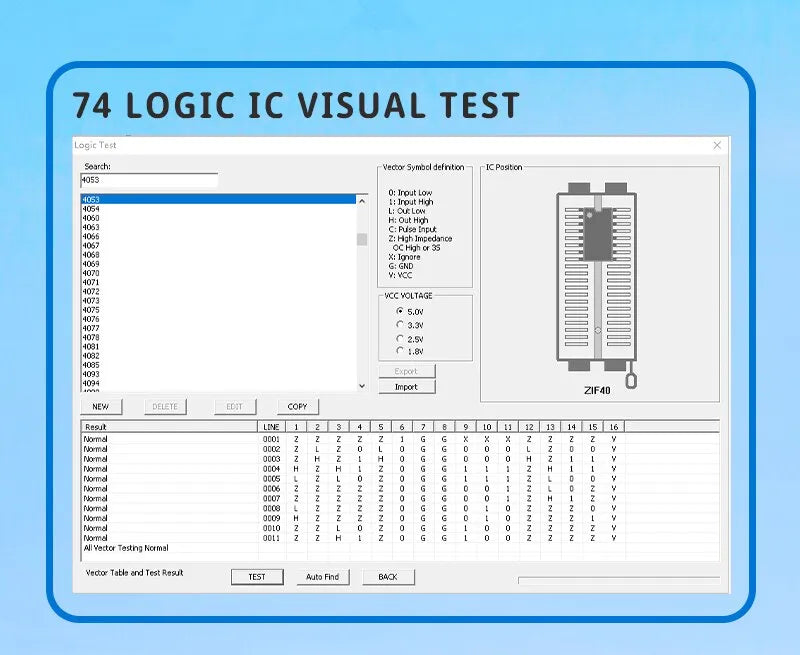

• I.C. Tester: TTL type: 54,74 S/LS/ALS/H/HC/HCT series; CMOS type: 4000, 4500 series; Static RAM: 6116 ..
