Hantek
Hantek 2000 series 3-in-1 Digital Oscilloscope Waveform Generator Multimeter Portable USB 2 Channels 40/70mhz - NSE Imports Hantek 2000 series 3-in-1 Digital Oscilloscope Waveform Generator Multimeter Portable USB 2 Channels 40/70mhz - NSE Imports
Hantek
Ships from: CN Warehouse
Hantek 2000 series 3-in-1 Digital Oscilloscope Waveform Generator Multimeter Portable USB 2 Channels 40/70mhz from £124.99

The Hantek 2000 handheld oscilloscope series, continues the compact and lightweight concept but with a new generation of a 3 in 1 multifunction tester: oscilloscope, signal source / waveform generator (2Dxx models only) and multimeter; Their small volume allows handheld operation; The integrated desk stand is designed to support multi-angle adjustment; Ultra-low-power, USB Type-C charging interface, each 2 hours battery charge allow working one full day or standby for around two months; High-definition colour LCD screen display clear and delicate; Minimalist keyboard design simplifies operation. USB connectivity to your PC allows you to measure and record in real-time.Please note: Only the 2Dxx models feature the Signal/Waveform generator feature. Please visit our Hantek 2000 Downloads Page for the drivers, software and manuals. Features: 40 or 70MHz bandwidth. 250MSa/s Real Time sample rate. Oscilloscope + Waveform Generator + Multimeter: This multi-purpose station own three universal test instrument functions. It is outgoing right-hand product for engineers. Intelligent charging control: Its lithium batteries can be recharged by either high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy; Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months; Large-capacity lithium battery power supply: 18650 replaceable lithium battery power system, free from replace battery; 5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone; AUTO one-key test: Magic tool and essential function for test newbie; Volume small, one hand holding: The 45 degree suspension bracket design provide you a work station anywhere anytime; One key page out, quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective; Digital voltmeter function: automatic frequency and amplitude measurement, convenient and worry-free; Its cursor measurement function supports time and voltage manual measurement, and measure the required waveforms accurately; One-click switching its Chinese and English language menu; Colour LCD screen: exquisite and smooth lines make the waveforms clear and undistorted when magnify; Minimalist keyboard design simplify operation, convenient to use; Unibody casing: fine touch feeling, favourable impact resistance, outstanding heat resistance, easy to disassemble; Self-calibration function: free from level drift after long time unused; Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test; Waveform generator output function (2Dxx models only): output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz; Video help: Scan to QR code on back of machine to get help and video courses. The PC software supports Windows 7/8/10 32-bit and 64-bit. Specifications ⠀ The included power adapter is a 5V/2A USB Charger, if your country uses a different plug any USB charger of the same rating will be fine   Model Hantek2D72 Hantek2D42 Hantek2C72 Hantek2C42 Oscilloscope Mode Bandwidth 70MHz 40MHz 70MHz 40MHz Channel 2CH+DMM+AWG 2CH+DMM+AWG 2CH+DMM 2CH+DMM Horizontal Sample Rate Range 250MSa/s(Single-channel), 125MSa/s(Dual-channel) Waveform Interpolation (sin x)/x Record Length Max. 6K for single-channel; 3K samples per dual-channel SEC/DIV Range 5ns/div~500s/div  1, 2, 5 sequence Vertical A/D Converter 8-bit resolution,each channel sampled simultaneously VOLTS/DIV Range 10mV/div~10V/divat input BNC Bandwidth Limit, typical 20MHz Low Frequency Response (-3db) ≤10Hz at BNC Rise Time at BNC, typical ≤5ns DC Gain Accuracy ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div Note: Bandwidth reduced to 6MHz when using a 1X probe. Acquisition Acquisition Modes Normal Trigger Type Edge Mode Auto, Normal, single Level ±4 divisions from center of screen Trigger Level Accuracy 0.2div × volts/div within ±4 divisions from center of screen    Slope Rising, Falling, Rising & Falling Source CH1/CH2 Input Coupling DC, AC or GND Input Impedance,  25pF±3 pF, 1MΩ±2% DC coupled Probe Attenuation 1X, 10X Supported Probe Attenuation Factors 1X, 10X, 100X, 1000X Maximum Input Voltage 150VRMS Measurement Cursor Voltage difference between cursors: △V Time difference between cursors: △T Automatic Measurements Frequency, Amplitude Arbitrary Waveform Generator Mode Waveform Frequency Sine: 1Hz~25MHz           -           - Square: 1Hz~10MHz           -           - Ramp: 1Hz~1MHz           -           - EXP: 1Hz~5MHz           -           - Sampling 250MSa/s           -           - Amplitude 2.5Vpp(50Ω)           -           - 5Vpp(High impedance)           -           - Frequency Resolution 0.10%           -           - Channel 1CH waveform output           -           - Waveform Depth 512Sa           -           - Vertical Resolution 12 bit           -           - Output Impedance 50 Ω           -           - DMM Maximum Resolution 4000 Counts DMM Testing Modes Voltage,Current,Resistance,Capacitance,Diode &On-Off Maximum Input Voltage AC:600V, DC: 600V Maximum Input Current AC: 10A, DC:10A Input Impedance 10MΩ Measurement Term Range Accuracy Resolution DC Voltage 400.00mV ± (0.8% + 5) 100uV 4.000V 1mV 40.00V 10mV 400.0V 100mV 600.0V ± (1% + 2) 1V Overload protection: 400mV: 250V, other: 600Vrms. AC Voltage 4.000V ± (1.2% + 5) 1mV 40.00V 10mV 400.0V 100mV 600.0V ±(1.5% + 5) 1V Frequency: 40Hz~400Hz; Frequency of 400V and 600V: 40Hz~100Hz DC Current 40.00mA ± (1% + 2) 10uA 200.0mA ± (1.5% + 2) 100uA 4.000A ± (1.8% + 2) 1mA 10.00A ± (3% + 2) 10mA Overload protection:  self restoring fuse: 200mA/250V, 4A and 10A range no fuse. AC Current 40.00mA ± (1.3% + 2) 10uA 400.0mA ± (1.8% + 2) 100uA 4.000A ± (2% + 3) 1mA 10.00A ± (3% + 5) 10mA Frequency: 40Hz~400Hz; self restoring fuse: 200mA/250V, 4A and 10A range no fuse. Resistance 400.0Ω ±(1% + 3) 0.1Ω 4.000KΩ ±(1.2% + 5) 1Ω 60.00KΩ 10Ω 400.0KΩ 100Ω 4.000MΩ 1KΩ 40.00MΩ ± (1.5%±3) 10KΩ Overload protection: 220Vrms Capacitance 40.00nF ±(3% + 5) 10pF 400.0nF 100pF 4.000uF 1nF 40.00uF 10nF 100.0uF 100nF Overload protection: 220Vrms Diode 0V~1.0V On-Off <50Ω General Specifications Display Display Type 2.8 inch64K color TFT Display Resolution 320 horizontal by 240 vertical pixels Display Contrast Adjustable Power Supply Supply Voltage 100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A Power Consumption <2.5W Fuse T, 3A Battery 2600mA*2 Environmental Operating Temperature 0~50 °C (32~122 °F) Storage Temperature -40~+71 °C (-40~159.8 °F) Humidity ≤+104℉(≤+40°C): ≤90% relative humidity 106℉~122℉ (+41°C ~50°C): ≤60% relative humidity Cooling Method Convection Altitude Operating and 3,000m (10,000 feet) Nonoperating Mechanical Shock Random Vibration 0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis Nonoperating 2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis Operating 50g, 11ms, half sine Mechanical Dimension 199 x 98x 40mm (L x W x H) Weight 624g Standard Accessories Probe*1,Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 Probe*1,Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 Probe*1,Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 Probe*1,Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 Return to top Additional Images ⠀ Great function with small size!: Minimalist keyboard design simplify operation, easy to use. Oscilloscope + Waveform Generator + Multimeter: Multi-purpose station own three universal test instrument functions. Outgoing right-hand product for engineers. Waveform Generator Function (2Dxx models only): A multi-purpose instrument that helps complete your tasks more quickly, improves work efficiency, and meets all your current and future test needs. Multifunction Digital Multimeter Function: High sensitivity and accuracy, showing clear, strong anti-overload capability, easy to carry. Intelligent Charging Control: Be able to recharged by 5V/2A large current or ordinary computer USB port, measurement can be done even while charging, convenience and user-friendly. Large-capacity Lithium Battery + Ultra Low Power + Type C Data Transfer/Charging Interface: 18650 replaceable lithium battery power system, free from replace battery; Able to be recharged by 5V/2A large current or ordinary computer USB port, able to use while charging, very convenient and handy; USB Type-C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months; USB Type-C power + data transfer interface, can share the charger and data cable with your mobile phone; Interface layout Powerful PC software: Oscilloscope powerful functions: 20 kinds of automatic measurement, cursor measurement, waveform printing and saving functions, REF and Math functions, Pass / Fail functions. The waveform generator is able to draw and output arbitrary waveforms on its PC software Its multimeter with recorder function, which support the measurement results to generate the curves and analyze them. Return to top

Sold out

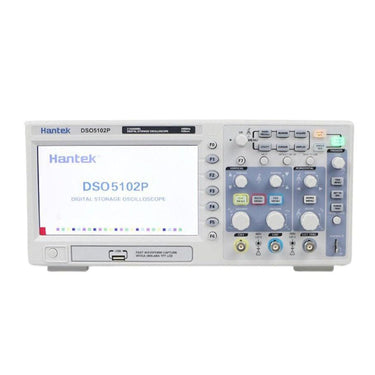

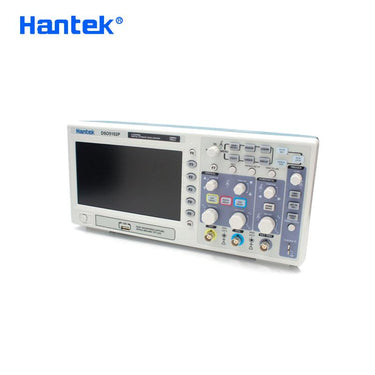

Hantek DSO5102P USB Digital Storage Oscilloscope 2 Channels 100MHz 1GSa/s - NSE Imports Hantek DSO5102P USB Digital Storage Oscilloscope 2 Channels 100MHz 1GSa/s - NSE Imports
Hantek
Ships from: CN Warehouse
Hantek DSO5102P USB Digital Storage Oscilloscope 2 Channels 100MHz 1GSa/s £261.99

The Hantek DSO5102P brings you a range of great features to allow you to measure, trace and record your electrical issues. Ideal for Diagnostic and Repair work, the ability to either record your data to USB or connect to your PC for live data capture gives you a range of flexibility. With its large 7 inch WVGA display you can see results clearly. Hantek digital oscilloscopes offer an excellent price/performance ratio. The DSO 5000 series offers twelve versions of digital oscilloscopes with the 60, 70, 100 and 200 MHz bandwidths. The main features of the DSO 5102P model are the 1GS/s maximum sampling rate, 24K sampling memory, USB host on the front USB panel (data storage possibility), connectivity for long-distance control by PC (software included) and external trigger. Standard delivery includes two 60 MHz passive probes 1:1 and 10:1. Comfortable and user-friendly layout of the control elements is underlined by a large 7inch colour TFT display with 800x480 point resolution.An obstacle for anyone interested in owning a good oscilloscope is the purchasing price of a digital oscilloscope. Quality oscilloscopes are expensive. Hantek brings an alternative and offers a balanced price/performance ratio. Measuring technology development and production are marching in seven-league boots, and everybody understands that computer technology prices have fallen sharply in the last decade. Measuring technology is no exception. Hantek offers a cheap and good quality solution, although not a perfect one. Hantek oscilloscopes are accessible to anyone interested in making the relevant measurements. Please visit our Hantek DSO5102P Downloads Page for the drivers, software and manuals. Features: 100 MHz bandwidth. 1GSa/s Real Time sample rate. Large (7.0-inch) colour display,WVGA(800x480). Built-in memory for measurement storage: 2 GB Record length up to 40K. Trigger mode: edge/pulse width/line selectable video/slop/overtime etc. USB host and device connectivity, standard. 32 automatic measurements. Four math functions, including FFTs standard. Supplied with MSScope software for PC real-time analysis. Specifications ⠀ Model DSO5202P DSO5102P DSO5072P Acquisition Sample Rate Real-Time Sample: 1GS/s Equivalent Sample: 25GS/s Acquisition Modes Normal Normal data only Pea'k Detect High-frequency and randon glitch capture Average Waveform Average, selectable 4,8,16,32,64,128 Inputs Inputs Coupling AC, DC, GND Inputs Impedance 1MΩ±2% II20pF±3pF Probe Attenuation 1X, 10X Supported Probe Attenuation Factor 1X, 10X, 100X, 1000X Maximum Input Voltage CAT I and CAT II: 300VRMS (10×), Installation Category; CAT III: 150VRMS (1×); Installation Category II: rated at 20dB/decade above 100kHz to 13V Peak AC at 3MHz* and above. For non-sinusoidal waveforms, Peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur. Horizontal Sample Rate Range 500MS/s--1GS/s Waveform Interpolation (sin x)/x Record Length 40'K SEC/DIV Range DSO5202P4ns/div to 40s/div DSO5102P/DSO5072P4ns/div to 40s/div Sample Rate and Delay Time Accuracy ±50ppm(at over any ≥1ms time interval) Position Range DSO5202P2ns/div to 10ns/div;(-4div x s/div) to 20ms; DSO5102P/DSO5072P20ns/div to 80us/div; (-8div x s/div) to 40ms; 200us/div to 40s/div; (-8div x s/div) to 400s Incremental Time Measurement Accuracy (Full Bandwidth) Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200 Vertical Vertical Resolution 8-bit resolution, all channel sampled simultaneously Position Range 2mV/div to 200mV/div, ±2V 200mV/div to 5V/div, ±50V Bandwidth DSO5202P100MHz DSO5102P100MHz DSO5072P70MHz Rise Time at BNC( typical) DSO5202P3.5ns DSO5102P3.5ns DSO5072P5ns Analogue Bandwidth in Normal and Average modes at BNC or with probe, DC Coupled 2mV/div to 20mV/div, ±400mV; 50mV/div to 200mV/div, ±2V 500mV/div to 2V/div, ±40V; 5V/div, ±50V Math +, -, *, /, FFT FFT Windows: Hanning, Flatop, Rectangular, Bartlett, Blackman; 1024 sample point Bandwidth Limit 20MHz Low Frequency Response (-3db) ≤10Hz at BNC DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div DC Measurement Accuracy, Average Acquisition Mode When vertical displacement is zero, and N ≥16:± (3% × reading + 0.1div + 1mV) only 10mV/div or greater is selected; When vertical displacement is not zero, and N≥16: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 5V/div Volts Measurement Repeatability, Average Acquisition Mode Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions Trigger System Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative Trigger Source CH1, CH2, EXT, EXT/5, AC Line Trigger Modes Auto, Normal, Single Coupling Type DC, AC, Noise Reject, HF Reject, LF Reject Trigger Sensitivity (Edge Trigger Type) DC(CH1,CH2): 1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full; DC(EXT): 200mV from DC to 100MHz; 350mV from 100MHz to 200MHz; DC(EXT/5): 1V from DC to 100MHz;1.75V from 100MHz to 200MHz; AC: Attenuates signals below 10Hz; HF Reject: Attenuates signals above 80kHz; LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz Trigger Level Range CH1/CH2: ±8 divisions from center of screen; EXT: ±1.2V; EXT/5:±6V Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen; EXT: ± (6% of setting + 40mV); EXT/5: ± (6% of setting + 200mV); Set Level to 50%(typical) Operates with input signals ≥50Hz Video Trigger Video Trigger Type CH1, CH2: Pea'k-to-Pea'k amplitude of 2 divisions; EXT: 400mV; EXT/5: 2V Signal Formats and Field Rates, Video Trigger Type Supports NTSC, PAL and SECAM broadcast systems for any field or any line Holdoff Range 100ns ~ 10s Pulse Width Trigger Pulse Width Trigger Mode Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse Pulse Width Trigger Point Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level. Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width. Less than: The trigger point is the trailing edge. Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width Pulse Width Range 20ns ~ 10s Slope Trigger Slope Trigger Mode Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope Slope Trigger Point Equal: The oscilloscope triggers when the waveform slope is equal to the set slope. Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope. Less than: The oscilloscope triggers when the waveform slope is less than the set slope. Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope. Time Range 20ns ~ 10s Overtime Trigger Over Time Mode Rising edge or Falling edge Time Range 20ns ~ 10s Alternative Trigger Trigger on CH1 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger on CH2 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger Frequency Counter Readout Resolution 6 digits Accuracy (typical) ±30ppm (including all frequency reference errors and ±1 count errors) Frequency Range AC coupled, from 4Hz Min to rated bandwidth Signal Source Pulse Width or Edge Trigger modes: all available trigger sources The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed. Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as trigger able events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time. Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity. Video Trigger mode: The Frequency Counter does not work. Measure Cursor Measurement Voltage difference between cursors: ΔV Time difference between cursors: ΔT Reciprocal of ΔT in Hertz (1/ΔT) Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Min, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF Display Display Type 7 inch 64K color TFT (diagonal liquid crystal) Display Resolution 800 horizontal by 480 vertical pixels Display Contrast Adjustable (16 gears) with the progress bar Probe Compensator Output Output Voltage( typical) About 5Vpp into ≥1MΩ load Frequency(typical) 1kHz Power Supply Supply Voltage 100-120VACRMS(±10%), 45Hz to 440Hz, CATII 120-240VACRMS(±10%), 45Hz to 66Hz, CATII Power Consumption <30W Fuse 2A, T rating, 250V Environmental Temperature Operating: 32F to 122F (0C to 50C); Non-operating: -40F to 159.8F (-40C to +71C) Cooling Method Convection Humidity +104F or below (+40C or below): ≤90% relative humidity; 106F to 122F (+41C to 50C): ≤60% relative humidity Altitude Operating: Below 3,000m (10,000 feet); Non-operating: Below 15,000m(50,000 feet) Mechanical Size Length 385mm, Width 200mm, Height 245mm Weight 3.5KG(with Packing); 2.08KG(without Packing) Return to top

Hantek DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel with Signal Source (AWG) - NSE Imports Hantek DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel with Signal Source (AWG) - NSE Imports
Hantek
Ships from: CN Warehouse
Hantek DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel with Signal Source (AWG) £251.99

The Hantek DSO2D10 builds on the success of their previous DS05000 series models. Bringing updated features and specifications, these are ideal scopes for both beginners and advanced users alike. A cost-effective oscilloscope, featuring 150 MHz Bandwidth, 1GSa/s, 8M memory depth; with 1CH 25 MHz waveform generator, support arbitrary waveform output; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics; 3-digit digital voltage meter and 6-digit hardware frequency indicator functions; 2 sets of DVM; Abundant SCPI remote command control. It is a useful commissioning instrument for various fields such as communication, aerospace, embedded systems, computers, research, PCB repair and education. Please visit our Hantek DSO2D10 Downloads Page for the drivers, software and manuals. Features: 2 channels, each channel has independent knob control; Analog bandwidth 100MHZ The highest sampling rate is 1 GSa/s; The storage depth is 8Mpts; The vertical range 2mV/div ~ 10V/div; Built-in a 25MHz signal generator; Vertical resolution: 8bit; Trigger: edge, pulse, video, slope, timeout, window, pattern, interval, runt, UART, LIN, CAN, SPI, IIC;  Bus decoding and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN; Can save settings, waveforms, reference waveforms, CSV, pictures and other data formats. 3-digit digital voltmeter and 6-digit frequency meter functions; Support 32 kinds of automatic measurement and statistics functions, real-time statistics of minimum, maximum, standard deviation and other statistical information;  Two sets of digital voltmeter functions; Support threshold test to realize free measurement in the screen; Rich SCPI remote control instructions; Able to connect to a PC over USB for live data capture and logging Able to store data on a USB Stick for later inspection Package includes: 1 X Hantek DSO2D10 Digital Oscilloscope, 1 x Probe, 2 x BNC to Alligator Clip Test Cables, 1 x Power Cable, 1 x USB Cable These run on 110V-240V AC We will send an appropriate power lead for your country. Specifications ⠀ Model DSO2D15 DSO2D10 DSO2C15 DSO2C10 Bandwidth 150MHz 100MHz 150MHz 100MHz Oscilloscope channels 2CH 2CH 2CH 2CH Waveform generator 1CH 1CH  -  - Oscilloscope Sample rate 1GSa/s (single channel) 500MSa/s (two channels) Acquisition Normal Sample data Peak-to-peak value Display high frequency and random burr Average Average waveform, times: 4, 8, 16, 32, 64, 128 High resolution Up to 12bit Input Input coupling DC, AC, GND Input impedance 1MΩ±2% ‖20pF±3pF Probe attenuation factor 1X, 10X, 100X, 1000X Voltage rating 300V CAT II Maximum input voltage 300VRMS (10X) Horizontal Waveform interpolation (sin x)/x Maximum record length Single channel maximum 8M Two channels maximum 4M Horizontal scale range 2ns/div~100s/div 1, 2, 5 step by step Time base mode Y-T, X-Y, Roll Zero offset ±0.5 div*minimum time base gear Sample Rate and Delay Time Accuracy ±25ppm Delta Time Measurement Accuracy (Full Bandwidth) Sample Rate and Delay Time Accuracy single-shot, Normal mode ±(1 sample interval+100ppm×reading+0.6ns) >16 times averages ±(1 sample interval+100ppm×reading+0.4ns) Sample interval=sec/div÷200 Sample Rate and Delay Time Accuracy ±50ppm(at any interval greater than 1ms) Vertical Model DSO2D15 DSO2D10 DSO2C15 DSO2C10 Bandwidth 150MHz 100MHz 150MHz 100MHz Rising time in BNC position (typical) 2.4ns 3.5ns 2.4ns 3.5ns Vertical resolution 8 bits resolution, each channel samples simultaneously Vertical sensitivity 2mV/div to 10V/div Offset range ≥ 200mV/div, ±1V; <200mV/div ±50V Mathematical operation +, -, ×, ÷, FFT FFT Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop Bandwidth Limit 20MHz Bass response(-3db) In BNC position ≤ 10Hz Vertical gain accuracy In ''normal''  or ''average'' acquisition mode, the accuracy of 10V/div to 10mV/div is ±3%; In ''normal'' or ''average'' acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4% Note: Bandwidth reduced to 6MHz when using a 1X probe Trigger Trigger type Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC Trigger level range  ±5 divisions from the center of the screen Trigger mode Auto, Normal, single Level CH1~CH2 ±4 divisions from the center of the screen EXT(Only With AWG Model) 0~3.3V Holdoff range 8ns~10s Trigger level accuracy CH1~CH2 0.2 div×volts/div within ±4 divisions from the center of the screen EXT(Only With AWG Model) ±(Set value× 6%+40mV) Edge trigger Slope Rising edge, falling edge, rising or falling edge Signal source CH1, CH2, EXT(Only With AWG Model) Pulse width trigger Polarity Positive polarity, negative polarity Condition(When) <, >, !=, = Signal source CH1~CH2, Pulse width range 8ns ~ 10s Accuracy 8ns Video trigger Signal standard NTSC, PAL Signal source CH1~CH2 Synchronization Scanning line, line number, odd field, even field, all field Slope trigger Slope rising, falling Condition(When) <, >, !=,  = Signal source CH1 ~ CH2 Time range 8ns ~ 10s Accuracy 8ns Overtime trigger Signal source CH1~CH2, Polarity Positive polarity, negative polarity Time range 8ns ~ 10s Accuracy 8ns Window trigger Signal source CH1~CH2  Pattern trigger Pattern 0: low level; 1: high level; X: ignore Level(signal source) CH1~CH2 Interval trigger Slope rising, falling Condition(When) <, >,  !=,  = Signal source CH1~CH2 Time range 8ns ~ 10s Accuracy 8ns Under Amp trigger Polarity Positive polarity, negative polarity Condition(When) <, >, !=, = Signal source CH1~CH2 Time range 8ns ~ 10s Accuracy 8ns UART trigger Condition(When) Start, Stop, data, Parity ERR, COM ERR Signal source(RX/TX) CH1~CH2  Data format Hex (hexadecimal) Data length 1 byte Data bit width 5 bit, 6 bit, 7 bit, 8 bit Odd-even check none, odd, even Idle level high, low Baud rate (optional) 110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s Baud rate(user-defined) 300bit/s~334000bit/s LIN trigger Condition(When) Interval field, synchronization field, ID field, synchronization error, identifier, ID and data Signal source CH1~CH2 Data format Hex (hexadecimal) Baud rate (optional) 110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s Baud rate(user-defined) 300bit/s~334000bit/s CAN trigger Condition(When) Start bit, remote frame ID, data frame ID, frame ID, data frame data, error frame, all errors, ACK Error, overload frame Signal source CH1~CH2 Data format Hex (hexadecimal) Baud rate (optional) 10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000 Baud rate(user-defined) 5kbit/s~1Mbit/s   SPI trigger Signal source CH1~CH2 Data format Hex (hexadecimal) Data bit width 4, 8, 16, 24, 32 IIC trigger Signal source (SDA/SCL) CH1~CH2 Data format Hex (hexadecimal)         Data index 0~7 When(condition) Start bit, stop bit, No Ack, address, restart, address and data Measurement Cursor Voltage difference between cursors △V Time difference between cursors △T Reciprocal of △T, in Hertz (1/△T) Auto measurement frequency, period, mean, peak-to-peak, RMS, minimum, maximum, rising time, falling time, + width, - width, base, top, middle, amplitude, overshoot, preshoot, rising edge phase difference, falling edge phase difference, + duty, - duty, period mean, PRMS, FOVshoot, ROVshoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF DVM Data source CH1, CH2 Measurement type DC RMS AC RMS DC Frequency meter hardware 6 bits frequency meter Arbitrary waveform generator Channel 1 Sample rate 200MSa/s Vertical resolution 12 bits  Maximum frequency 25 MHz  Standard waveforms sine, square, ramp,Exp, noise, DC Arbitrary waveform Arb1, Arb2, Arb3, Arb4 Sin Frequency range 0.1Hz~25MHz Square/pulse Frequency range 0.1Hz~10MHz Triangular wave Frequency range 0.1Hz~1MHz Sampling wave Frequency range 0.1Hz~1MHz Index Frequency range 0.1Hz~5MHz Noise   Arb1 Frequency range 0.1 Hz to 10 MHz  Arb2 Frequency range 0.1 Hz to 10 MHz  Arb3 Frequency range 0.1 Hz to 10 MHz  Arb4 Frequency range 0.1 Hz to 10 MHz  Waveform length 4KSa Frequency Accuracy 100 ppm (<10 kHz) 50 ppm (>10 kHz) Resolution 0.1 Hz or 4 bits,take the greater one Amplitude Output range 10mV~7Vp-p (high impedance) 5mV~3.5Vp-p (50Ω) DC offset Range ±3.5 V, high impedance ±1.75 V, 50 Ω Resolution 100 μV or 3 bits, take the greater one Accuracy 2% (1 kHz) Output impedance 50 Ω General specifications Display Display type 7'' diagonal TFT liquid crystal Display resolution 800 (horizontal)*480 (vertical) pixels Display colour 16 million colours (24 bits true colour) Persistence time minimum, 1 s, 5 s, 10 s, 30 s, infinite Display type dot, vector Display brightness adjustable Grid type adjustable Grid brightness adjustable Interface Standard interface USB Host,USB Device General specifications Probe compensator output Output voltage, typical about 2Vpp input ≥1MΩ load Frequency, typical 1kHz Power supply 100-120VACRMS(±10%), 45Hzto 440Hz, CATⅡ 120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ Power consumption <30W Fuse T, 3.15A, 250V, 5x20mm Operating temperature 0~50 °C (32~122 °F) Storage temperature -40~+71 °C (-40~159.8 °F) Humidity ≤+104℉(≤+40°C): ≤90% relative humidity 106℉~122℉ (+41°C ~50°C): ≤60% relative humidity Altitude Operating and non-operating 3, 000m (10, 000 feet) Mechanical shock Random vibration 0.31 g RMS from 50Hz to 500Hz, 10 minutes on each axis Non-operating 2.46g RMS from 5Hz to 500Hz, 10 minutes on each axis Operating 50g, 11ms, half-sine wave Mechanical Size 318 x 110 x 150mm (length x width x height) Weight 1900g Return to top Additional Images ⠀ Return to top In Use Screen Captures ⠀ 1CH 25MHz waveform generator, support arbitrary waveform burst output, support modulation waveform output 32 kinds of auto measurements with statistics Can save 10 sets of reference waveforms, CSV waveforms and settings. The USB one-click screenshot function. 2 sets of DVM, 3-digit digital voltage meter and 6-digit hardware frequency indicator functions Serial bus trigger and decode, with the protocol monitoring function 8M memory depth, reducing waveform distortion and restore real waveforms Pass/Fail Mathematical operation and FFT X-Y format and display in dual windows Return to top
