XGecu T56 Programmer 56 Pin Drivers ISP Support 21000+ Chips with 22 adapters

£134.95
This item ships from our: CHINA Warehouse
Ships to UK and most other Countries.

Color Clear filters
Product description

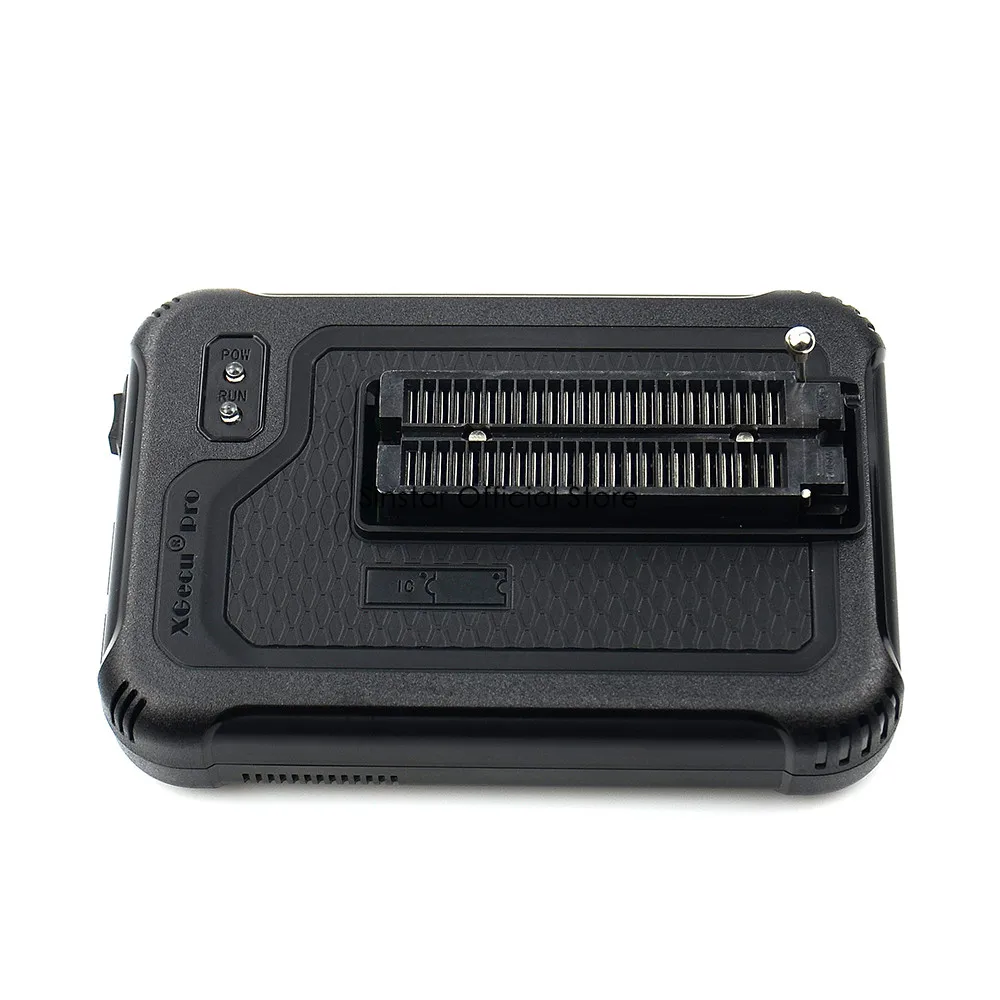

The XGecu T56 builds upon the successful TL866 series offering a host of upgrades. Now supporting longer chips up to 56 pins, with faster programming and read speeds, thanks to its updated PIC32MZ 32-bit MCU 200MHZ and Xilinx SP6 FPGA. With a far greater range of supported chip types it really is a powerhouse of a programmer. These are a great investment as new chip types are added through updates to the software package the supported chip types are always expanding, 21000+ types and growing.

All the cool details

  • Program, Read, Write, Test and more.
  • Supports over 21000+ types of ROM, EPROM, EEPROM, NAND, NOR, GAL, SRAM, EMMC, AVR, MCU XGecu T56 Chip Support List

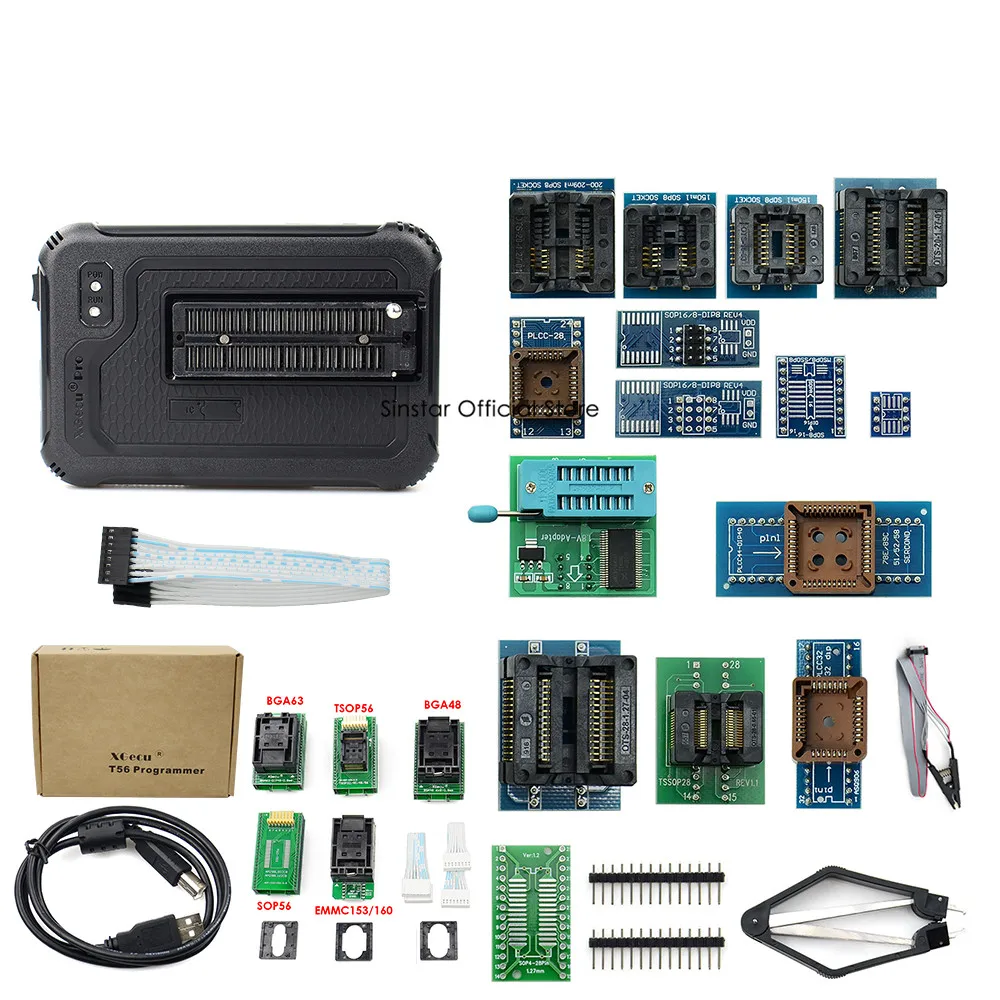

  • Kits contain different adpaters to cover a wide range of chip styles. See the images for which adpaters are included with each kit version.
  • Chip support: TSOP48 / TSOP56 / BGA48 / BGA63 / BGA64 / BGA100 / BGA153 / BGA162 / BGA169 / BGA221
  • Supports WINXP WIN2003 WIN2008 VISTA WIN7 WIN8 WIN10 32-bit or 64-bit operating systems.
  • Carefully built low-cost professional programmer, high-density chip production process, a unified user interface, easy to use, functional integrity, application software, reliable operation, code small, faster execution.
  • The programming speed is greatly improved. It is suitable for small batch production and supports 4 programmers for one computer.
  • Wide range of chip support, currently supports around 21000+ types.
  • Supports a variety of 24 25 26 27 28 29 37 39 49 50 series of serial and parallel memory chips, microcontroller 51 series, ATMEL AVR ATMEGA AT90 series, MICROCHIP PIC10 PIC12 PIC16 PIC18 series microcontroller , GAL programmable logic device programming, SRAM test, 54/74 and CMOS4000 integrated circuit integrated functional test.
  • Support NAND Flash chip, the function is complete and comprehensive, the capacity supports to 8Gbits.
  • 25 series NOR Flash capacity support to 512Mbits.
  • NAND EMMC supports a maximum capacity of up to 256G or more
  • Support VGA and HDMI online programming
  • Support digital logic integrated circuit testing, identification, customization
  • Pin contact check function, pinpoint corroded or faulty pins on your chip.
  • Ultra-low power consumption: the entire programmer uses ultra-low-power chips, no external PSU required.
  • Portable performance super: the world's smallest volume, size 10CM * 6CM * 2.5CM, only the size of the driver's license.
  • Programmable VCC from 1.8V to 6.5V, VPP from 1.8V to 18V.
  • Programmer built a variety of commonly used automatic numbering function. And can use a custom algorithm to achieve any sequence number through DLL dynamic library. This feature allows you to produce a unique identification information for each chip in mass production.
  • The logo can also be encrypted with a custom algorithm to more effectively protect your product's rights.

The technical stuff

  • Powered by PIC32MZ 32-bit MCU 200MHZ + Xilinx SP6 FPGA structure.
  • Universal serial programming interface ICSP (to support both high-voltage parallel programming and low-volt age serial programming). Note: ICSP now supports 24-Series 25 Series 93 Series Serial Integrated Circuits, ATMEL89S51,52, AVR ATMEGAxxx Full Series, and MICROCHIP PIC10Fxxx 12Fxxx 16Fxxx 18Fxxx Full Series, and the new series of SYNCMOS SM59Dxx SM59Rxx fu ll range chips for in-circuit serial programming.
  • Powerful 54 / 74F / LS / HC CMOS4000 Series Integrated Functionality Tests: The First Development Programmer to Test Common Logic ICs True, Test Errors Locating Logic Gate Circuits, Test Arbitrary Possible input combinations.
  • Variety of 26 27 28 29 37 39 49 50 series of parallel ROM, EPROM, EEPROM Fast, full support.

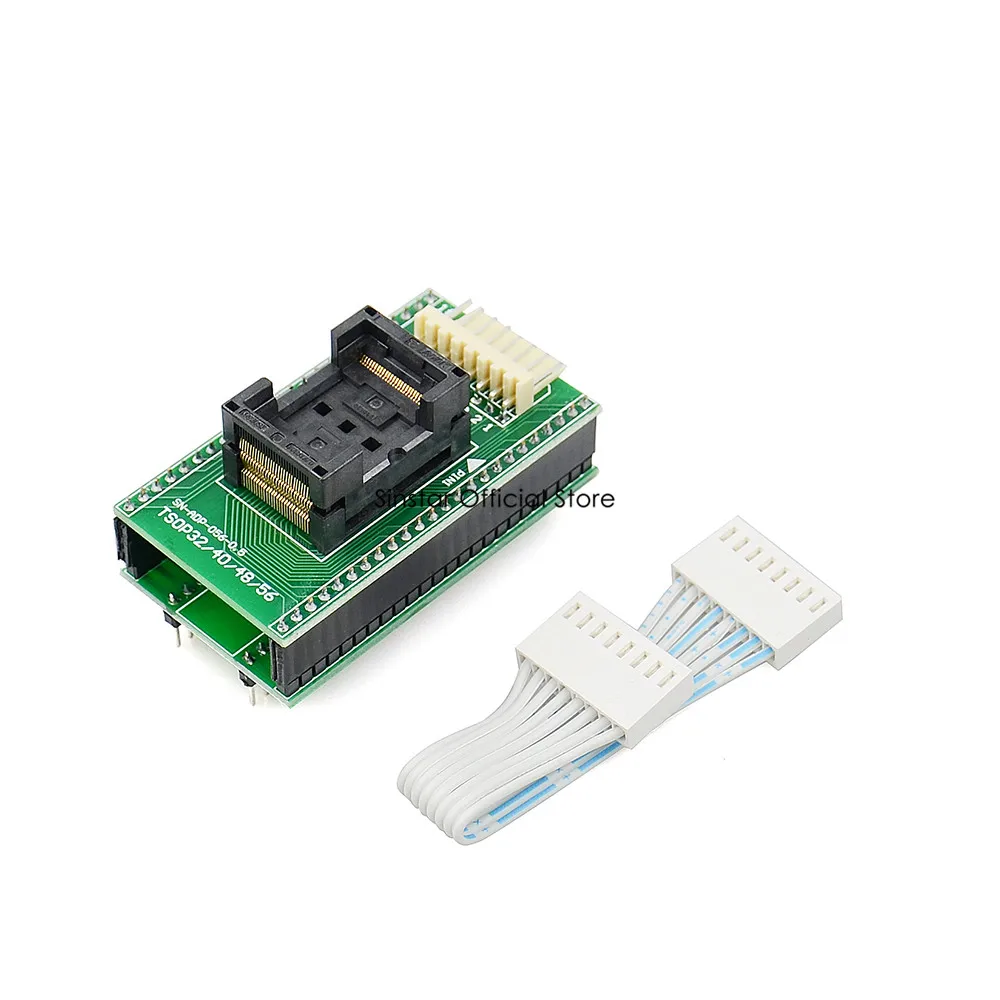

  • Support TSOP32 TSOP40 TSOP48 chips to 64MBits, will join the TSOP56 pin support.
  • (TL866II programming voltage VPP only supports up to 18V, for early 27C series ROM, the chip with 21V 25V VPP voltage no longer supports writing, but can be read. If it is used, the VPP with the same type of programming voltage can be used as 13V or 12V chip replacement, for example: 27C32 21V or 13V Vpp chip,Pay attention to the VPP voltage)
  • 24 25 35 45 85 93 95 Series Serial EEPROM Serial Series Chip Support Full, Supports Chip Capacity 25 Series 8 or 16PIN to 512MBits (64M Bytes)
  • NAND FLASH chip supports up to 8Gbits
  • MCU series, hundreds of models of 51 series of microcomputer
  • AVR microcontroller package scratch ATMEGA series ATtiny series AT90XXX series of microcontrollers, all AVR ATMEGAxxx chip also supports the ICSP interface for SPI serial download programming. Support AVR one-to-one soft-key with RC correction byte.
  • MICROCHIP PIC10 PIC12 PIC16 PIC18 Series Microcontroller: PIC series of more than 300 models, more than 900 package chip support, currently supports one of the most complete PIC chip integrated programmer. For various types of PIC monolithic, in strict accordance with the manufacturer's manual requirements, the optimal programming, programming speed is excellent. The vast majority of chips support both ISCP online programming and programming through programming sockets.
  • GAL programmable logic device programming.
  • SRAM test: Support for common 24 61 62 DS12 series SRAM test, respectively, to data line testing, address line testing, memory unit incremental testing and unit testing.
  • Super performance 54 / 74F / LS / HC CMOS 4000 series integrated circuit.
  • Function test: The first development-type programmer to really test common logic ICs to test for errors that can be located to logic gates, and to test any possible combinations of inputs in an integrated circuit when testing.
  • Chip support: TSOP48 / TSOP56 / BGA48 / BGA63 / BGA64 / BGA100 / BGA153 / BGA162 / BGA169 / BGA221
