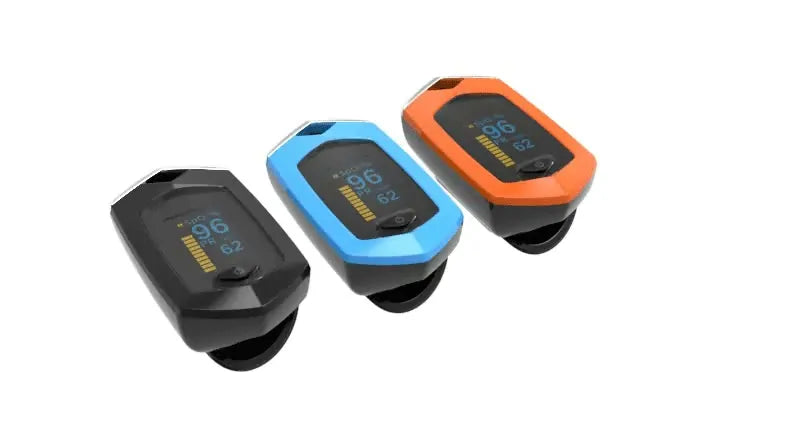

BOXYM YK-81D oSport Finger Pulse Oximeter
Ships to UK and most other Countries.
Quickly and easily measure your Pulse and SpO2 rates with this handy portable tester, with a clear OLED display and long battery life you can have it ready to go at a moments notice. The dislay can be rotated, allowing you to easily read the measurements from any angle.
- High quality ABS shell.
- Rechargeable Litium battery provide 5-8 hours runtime.
- Charges through a USB cable in 1-1.5 hours.
- Small, portable size, only 61.8*33.1*26.3mm.
- Clear easy to read OLED display with 4 way rotation.
- Complete with Carry Case, Lanyard and English Instruction Manual.
- Ideal for Healthcare and Sports.
- Auto shuts off after 8 seconds if not finger detected.
- Display Type: OLED display
- SPO2 : Measurement range: 70%～99%
- Accuracy: ±2% on the stage of 80%～99%;
- ±3% on the stage of 70%～79%;
- Below 70% no requirement
- Resolution: ±1%
- PR: Measurement range: 30BPM～240BPM
- Accuracy: ±1BPM or ±1%(the larger one)
- Power: rechargeable lithium battery
- Power consumption: below 30mA
- Automatic power-off: The product power off by itself when no finger is in the product ≥8 seconds
- Dimension: 61.8mm×33.1mm×26.3mm
- Operation Environment: Operation Temperature: 5 ºC～40 ºC
- Storage Temperature: -10 ºC～40 ºC
- Ambient Humidity: 15%～80% on the operation
- 10%～80% in storage
- Air Pressure: 86kPa～106kPa
- Declaration: The EMC of this product complies with the IEC60601-1-2 standard.
Additional Images & Videos
A copy of the manual can be downloaded here
- Pinch the clip to open.
- Insert your finger into the oximeter (finger down, nails aim at the infrared source) and then release the clip. Don't shake, Keep your fingers stable.
- When the waveforms are consistent, read the relevant data directly from the display screen.
- NOTE: Nails can't be too long, Will not work through printed/acrylic/bright nails. Finger must be dry.
