LCR-TC1 Colour Screen Multifunctional Transistor Tester: For Diode, Triode, Capacitor, Resistor, LCR, ESR, NPN, PNP, MOSFET
£16.95
£17.95

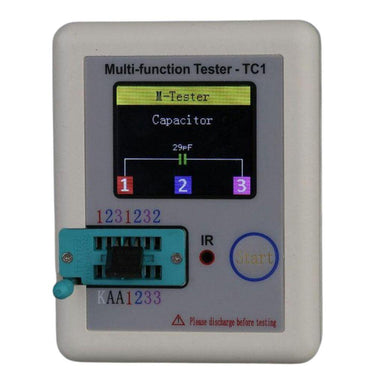

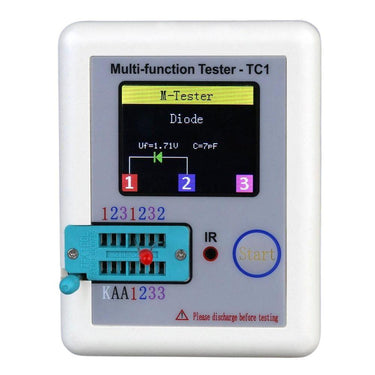

The DANIU LCR-TC1 is a versatile and easy-to-use component tester that is perfect for electrical repair technicians and hobbyists. It features a clear and easy-to-read colour screen, making it easy to quickly test a wide range of components for values and failures. The 14 pin ZIF socket allows for quick, easy, and hassle-free testing. Simply pop your component in and close the handle, and the unit will test the part and provide feedback on its results.
The DANIU LCR-TC1 is also equipped with an IR sensor that can be used to diagnose infrared remote controls. Simply point the remote control at the tester and press a button to see if it responds.
Features:
Detects NPN and PNP transistors, capacitors, resistors, diodes, triodes, N-channel and P-channel MOSFETs, IGBTs, JFETs, Triacs, and batteries
Detects infrared wave forms
Can detect Zener diodes and has a self-calibration function
For IR detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decodes it, it will display the data code and infrared wave form.
Easy to use with one-button operation
Put the pins of component in corresponding area, then close the handle and the detector will test it automatically
14 pin ZIF socket for quick and easy testing
Colour screen for clear and easy readings
Specifications:
Display: 1.8inch TFT Screen
Diode Range: < 4.5V
Zener Diode:Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT < 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V
Power Mode: Rechargeable Lithium Battery (INCLUDED)
Item Size: 8.8 x 8 x 2.8cm / 3.47 x 3.15 x 1.10in
Item Weight: 111.5g / 3.94oz
Package Size: 14.5 x 12 x 2.7cm / 5.71 x 4.73 x 1.06in
Package Weight: 114g / 4.02oz
Packing included: 1 x Multi-functional TFT Transistor tester, 1 x Electronic component set(Sent Randomly), 3 x Test hooks
