TL866II Plus 100% Original XGECU v11.2 Universal Programmer and Adapter Kits
Ships to UK and most other Countries.
Supporting 15000+ types of Supports over 15000+ types of ROM, EPROM, EEPROM, NAND, GAL, SRAM, EMMC, AVR, MCU. The TL866II Plus remains on of the best programmers on the market. With various adapters to cover most chip styles there is not much it cannot handle. With a high performance MCU, it may be one of the fastest integrated development programmers, the speed has meets the needs of small-quantity efficient production. The whole programmer is equipped with the ultra-low power chips powered via the USB Interface, power consumption is less than 20mA (it is 7mA when the programmer is not programming)
Furnished with the independent Grade 3 overcurrent protection and the protection of automatically cutting off power supply. Each pin of 40-pin programming socket has VPP overvoltage protection. It can effectively prevent from putting a chip in the wrong place or short circuit due to other reason. It can also stop VPP high voltage from coming back to the internals of the programmer and damaging the device.
40 pin universal chip support, able to handle a wide range of chip styles. The programmer can be updated to support new chip styles through the included software.
This product no longer contains a Driver CD, please visit our TL866II download page for the latest drivers and software.
- Program, Read, Write, Test and more.
- Supports over 15000+ types of ROM, EPROM, EEPROM, NAND, GAL, SRAM, EMMC, AVR, MCU etc....

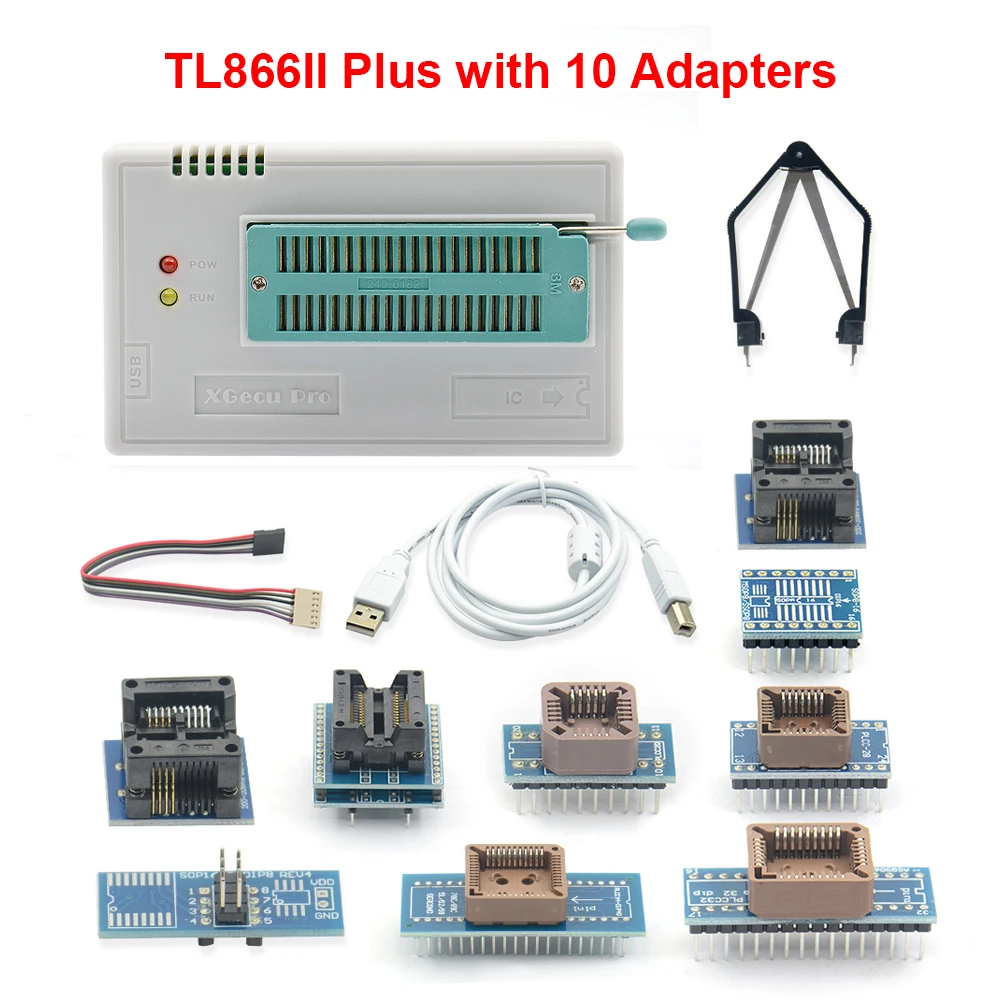

- Kits contain different adpaters to cover a wide range of chip styles. See the images for which adpaters are included with each kit version.
- Can attach upto 4 programmers to on PC for small batch runs.
- AVR series single-chip high speed programming. PIC series 8-bit microcontroller programming
- Serial 24/25/35/45/93 series programming. High-performance BIOS programmer
- Car computer chip programming.
- Support WIN2000, WINXP, WIN2003, WIN2008, WIN VISTA, WIN7, WIN8, WIN10(32&64 bit)
- Second development function of chip serial number: This programmer has a variety of automatic numbering functions that are uséd commonly. You can get any serial number through DLL Dynamic Link Libraries by using the custom algorithm. In mass production, the function enables each chip to produce only one identifying information that can be encrypted by the custom algorithm. So you can effectively protect your rights as a customer.
- Unique universal serial programming interface ICSP: This TL866ll Plus programmer can program through the 40-PIN universal socket and is provided with an ICSP serial programming port. For some in-circuit serial programmable chips, you can program MCU by choosing ICSP port. You can get the clear instruction diagram in the programming software for the ICSP port wiring method. That is to say, you can directly program and update the chip soldered on the board.
- Note: Now ICSP can in-circuit serial program ATMEL89S51, ATMEL89S52, AT45DBxxx, a whole series of AVR ATMEGAxxx, MICROCHIP PIC10Fxxx 12Fxxx 16Fxxx 18Fxxx, as well as a full serial of SYNCMOS SM59Dxx SM59Rxx. The variety of microcontroller that can be supported in-circuit programming will be continually increased in the future. Six ICSP wires of this programmer, except a ground wire, other wires led full functional I2C, SPI and UART serial main wire, be suitable for all kinds of serial communication. In addition, each wire can supply VCC, VPP or GND with high current.
- 54/74F/LS/HC CMOS4000 series IC functional tests: This is the first development programmer to test the common logic integrated circuit and this test can be located the errors of logic gate circuit, as well as test any possible input combinations of integrated circuit.
- Programmer self-testing function: This programmer can test itself on each pin of VPP, VCC, GND and I/O information, at the same time it can run an inside short-circuit test on VPP, VCC current.
- AVR microcontroller one-to-one soft encryption: AVR microcontroller has an RC Calibration (calibrate bytes). Only one of dozens of chips may have the same bytes value and it cannot be modified. Microcontroller software can read this value and determine whether the code is uséd by other chips. Through custom encryption algorithm, it can stop those who decrypt chips with ulterior motives from directly using. The encryption algorithm is so complex that it is not easy to decrypt. But, about 'encryption', there is a problem for developers - each chip is different - it is impossible to manually calculate one by one and respectively compile source code if the algorithm is complex. This programmer can automatically read into RC bytes before programming. The developer can get the bytes value of the chip in the DLL dynamic function and then automatically calculate the encrypted data according to the request and put it in the memory, efficiently completing mass production. (A detailed encrypted instance of the ATMEGA8 in the installation package is available for reference)
- Unified and convenient user interface: The user interface is well-designed and is in complete accord with the operating habit of the Windows series of software. Built-in binary editor is comparable to pure professional editing software. You can directly read, write and modify the files such as BIN format, HEX format, JED format and so on. In addition, it has the complete and practical project mode that makes the mass production more convenient and safer.
- PIC24 16-bit MCU 32MHZ, USB1.1 FS 12MHZ transmission
- Volume: 10cm x 6cm x 2.5cm
- 40-pin drive IO design. Non-full drive, IO voltage is not adjustable.
- VCC voltage 1.8-6.5V 32 levels adjustable,VPP voltage 9V-18V 32 levels adjustable.VCC 120MA over current protection, VPP 100MA over current protection.
- Power consumption: 5V <500MA. Static power consumption: 60mA. Without external power supply interface.
- Self-test function, self-test each pin of VPP/VCC/GND/IO
- Suitable for developers and maintenance personnel, can do small batch production for small capacity chips, support simultaneously working with 4 Programmers on each computer
- 15000+ supported devices from hundreds of manufacturers by 7.05 version of SW (Mar. 1th, 2018).
- NAND FLASH: Samsung K9xxx, SK Hynix (ex Hynix) HY27xxx, H27xxx, Micron MT29Fxxx, NANDxxx, Spansion S34xxx, NAND Toshiba TH58NVGxxx.
- Serial NAND FLASH: Micron MT29Fxxx.
- Serial Flash: standard SPI, high performance Dual I/O SPI and Quad I/O SPI (25Bxxx, 25Dxxx, 25Fxxx, 25Lxxx, 25Pxxx, 25Qxxx, 25Sxxx, 25Txxx, 25Uxxx, 25Vxxx, 25Wxxx, 25Xxxx, 26Vxxx, 45PExx, MX26Lxxx ).DataFlash (AT45Dxxx, AT26Dxxx)
- Parallel NOR Flash: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, Samsung'sK8Pxxxx, K8Dxxxx series, ...
- EPROM: NMOS/CMOS, 27xxx and 27Cxxx series
- EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series,
- Serial E(E)PROM: 24XXX,25XXX series,
- Microcontrollers MCS51 series:89Cxxx, 89Sxxx, 89EXXX,89VXX
- Microcontrollers Atmel AVR 8bit/16bit: AT90Sxxxx, ATtiny, ATmega series
- Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, PIC24xxx series
- GAL Programmable logic device programming and SRAM test
- I.C. Tester: TTL type: 54,74 S/LS/ALS/H/HC/HCT series; CMOS type: 4000, 4500 series; Static RAM: 6116 ..
Product Includes (x28 Adapter bundle)
- 1x Universal programmer: TL866II Plus
- 1x USB cable and ICSP cable
- 1x TSOP32/40/48 with black socket, 1x TSOP32/40/48
- 1x TSOP32, 1x TSOP40A, 1x TSOP40B, 1x TSOP48-DIP44
- 1x SOP44 with socket, 1x SOP44 simple board
- 1x PLCC44, 1x PLCC32, 1x PLCC28, 1x PLCC20
- 1x SOP8 208mil, 1x SOP8 150mil, 1x SOP28 300mil
- 1x SOP16 150mil, 1x SOP16-DIP8 300mil
- 1x SOP8 & SOP16, 1x MSOP8/SSOP8
- 1x SOIC8-DIP8, 1x SSOP8-DIP8
- 1x PLCC EXTRACTOR, 1x SOIC8 clip
- 1x SOP16 300mil, 1x SSOP34
- 1x 1.8V Adapter, 1x SOP20
- 1x TSSOP16/8, 1x SOP8 clip
- See images for other bundle contents.
- Support simultaneously burn with 4 Programmers each computer.
- The Minimum Volume and the lowest Power Consumption and Do not Feel any Heat in Process.
- All chips do not need external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.
- Best internal 40 pin over voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC.
- Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH
- Unique serial ICSP interface. supporting the serial download and high-speed parallel high voltage programming. Note: TL866CS does not support ICSP
- Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error.
- Chip auto serial number is the most complete and practical.
- Original chip encryption operation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip.
