JGMaker A5S 3D Printer Kit Metal Frame Touch Screen 305x 305x320 Print Size


£369.99 £0.00
This item ships from our: UK WAREHOUSE
Ships to UK and most EU Countries.
Other destinations: Please contact us for details.

Product Description


The JGAurora A5S builds upon the success of the A5 model with plenty of updates based on customers feedback. It’s now one of only a handful of 3D printers in this price bracket that offer a print volume this large, Ideal if you’re looking to print large objects like cosplay armour or tabletop terrain/buildings. Featuring a large 305 x 305 x 320 mm print volume that rivals the Creality CR-10, but thanks to the clever integrated PSU occupies a smaller footprint.

The A5S has a heated borosilicate glass bed with an additional ‘black diamond’ coating, this provides an excellent surface for your models to grip to. The A5S has assisted bed leveling which helps position the extruder for you to perform the 'paper width' test. Driving the A5S is a new 32-bit mainboard to control the Allegro A5984 silent stepper motors, these provide 32x micro stepping levels and numerous safety features including thermal runaway protection. This update allows the printer to achieve faster speeds and low power consumption.


  • Light industry main body design, terseness and not lack of novelty.
  • Large build size: 305×305×320mm, with assistant leveling system
  • Self-patent Black Diamond Grass platform: allows easy removal of the platform and the printed parts and a cleaner appearance.
  • Unique gapless feeding system, load filament smoothly, print excellent models.
  • Intellective large touch screen control: provides better 3D printing user experience. semiautomatic leveling control.
  • Power failure protection: resume print from where the last print is stopped due to power failure.
  • The automatic material recognition system saves time and effort with material information and print profiles preloaded on each reel to let you start printing straight away. And extruder will be stop heating up if no new filament feeding after one hour.
  • Better customer experience, high print accuracy and high speed with quiet working, suit for school and home.
  • Famous power supply from MW with CE, UL certificate.
  • Self developed control board, more stable and duable performance with smart protective procedure
  • A5S will be supplied with a EU or U.S. style power lead. Please use any U.K IEC/Kettle lead in it's place.

Packing Contents:

  • 1x Fully-assembled A5S
  • 1x PLA 1.75 White 0.25KG/spool
  • 1x Warranty Card
  • Tool Kit: 1x USB cable, length 1.5mm, 1x SD Card ,1x card reader, 1x 1.5mm Allen wrench ,1x 2.0mm Allen wrench, 1x power cable.

Back to top


Back to top

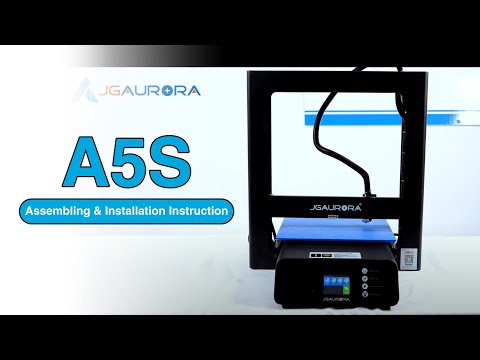

View our YouTube video

Back to top


Type: Metal,Complete Machine,CNC
Model: A5S
Platform material: Aluminum Alloy + black diamond glass
Nozzle quantity: Single
Nozzle diameter: 0.4mm
Nozzle temperature: Room temperature to 245 degree
Product forming size: 305×305×320mm
Layer thickness: 0.05-0.3mm
Memory card offline print: Sd Card
LCD Screen: Yes
Print speed: 10-120mm/s(Suggest 30-60mm/s)
Platform temperature: Room temperature to 105 degree
Material diameter: 1.75mm
Language: English,French,
File format: BMP,JPG,STL,G-code,OBJ
Model supporting function: Yes
XY-axis positioning accuracy: 0.011mm
Z-axis positioning accuracy: 0.0025mm
Voltage: 110-240V
Working Power: 300W
Host computer software: Repetier-Host,Cura,Slic3r
Packing type: Assembled packing
System support: Windows7/8/Windows10/XP, Mac, Linux
Voltage Range: AC 110-220V
Certificate: CE, RoHs,FCC, ISO9001-2015, Test report
